ENGINE OVERHAUL GASKET KIT

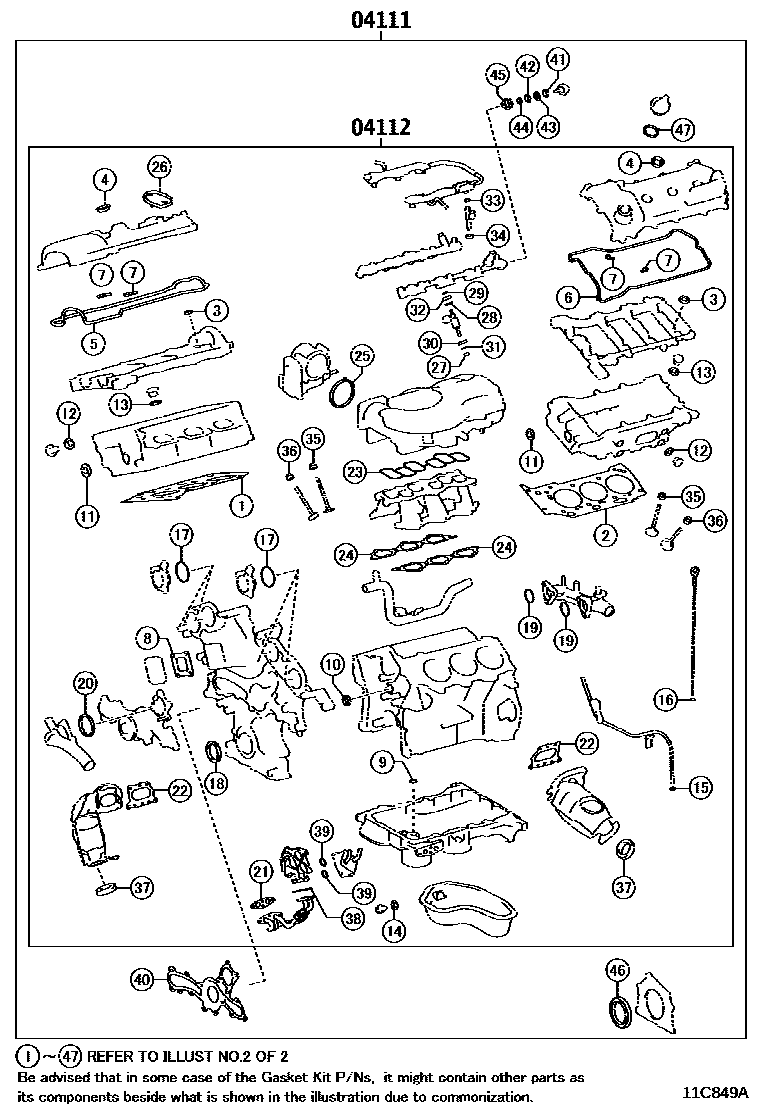

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-31C51i201712-201806

main04111-31C52i201806-201908

main04111-31C53i202107-202111

main04111-31C54i202112

main04111-31C71i201908-202107

main04111-31C72i202107-202111

main04111-31C73i202112

04112GASKET KIT, ENGINE VALVE GRIND

main04112-31891i201712-201806

main04112-31892i201806-201908

main04112-31893i202112

main04112-31A11i201712-201908

main04112-31A12i202112

2 parts on this diagram · 4 diagrams in section
