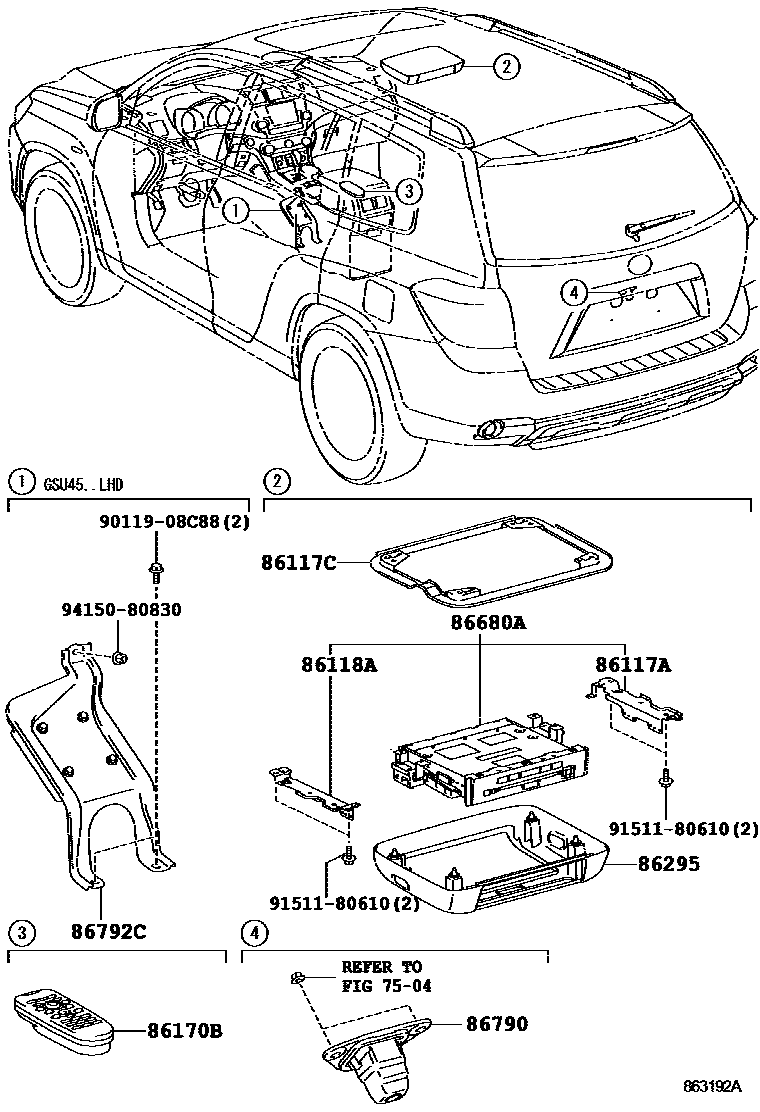

CAMERA & REAR MONITOR DISPLAY

7504REAR MOULDING

→ Go to FIG 75-04

86117ABRACKET, TELEVISION DISPLAY, A

86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2

86118ABRACKET, TELEVISION DISPLAY, B

86170BSWITCH & VOLUME ASSY, TELEVISION

86295BASE, TELEVISION

main86295-48040

86680ADISPLAY ASSY, TELEVISION

86790CAMERA ASSY, TELEVISION

main86790-48070iGSU45;GSU40..ARL200705-200907

main86790-48130iGSU4#200908-201312

86792CCOMPUTER, PARKING ASSIST

9011908C88

main90119-08C88

9151180610

main91511-80610

9415080830

main94150-80830

12 parts on this diagram · 1 diagram in section
