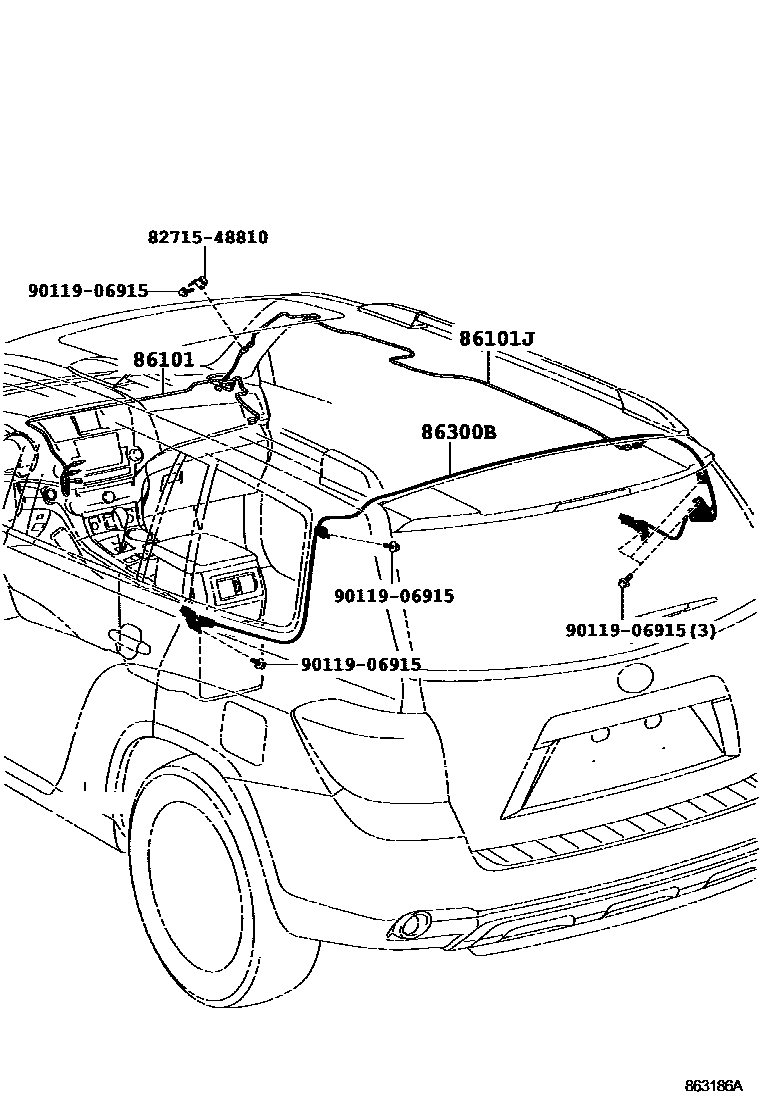

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-48630iGSU45..RUS201007-201312

main86101-48700iGSU40..CHI200705-200901

main86101-48710iGSU45..CHI200705-200901

main86101-48720iGSU4#..ARL201007-201312

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-48650iGSU45..CHI200705-200901

86300ANTENNA ASSY, W/HOLDER

main86309-48060iGSU40..CHI200705-200901

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-48260iGSU45;GSU40..ARL200705-200807

main86300-48261iGSU45..CHI200808-200901

8271548810BRACKET,WIRING HARNESS CLAMP

main82715-48810

9011906915

main90119-06915

6 parts on this diagram · 2 diagrams in section
