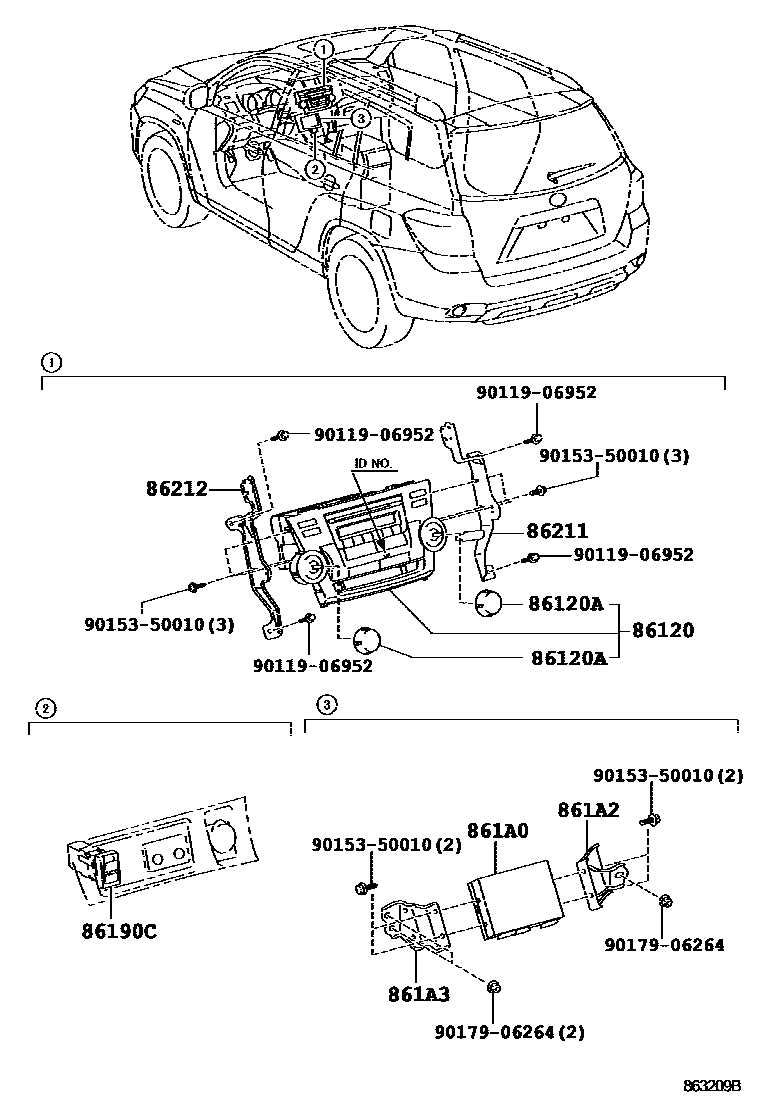

RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
MATSUSHITA,BLACK,TRIM1#
MATSUSHITA,BLACK,TRIM1#,2#
MATSUSHITA,DK. BROWN,TRIM4#
MATSUSHITA,BLACK,TRIM1#,2#
MATSUSHITA,AUDIO-AM/FM 6CD-CHANGER 6SPEAKER,BLACK,TRIM1#
MATSUSHITA,AUDIO-AM/FM 6CD-CHANGER 6SPEAKER,BLACK,TRIM1#,2#
MATSUSHITA,DK. BROWN,TRIM4#
MATSUSHITA,AUDIO-AM/FM 6CD-CHANGER 6SPEAKER,DK. BROWN,TRIM4#
MATSUSHITA,BLACK,TRIM1#,2#
MATSUSHITA,BLACK,TRIM2#
MATSUSHITA,DK. BROWN,TRIM4#
PANASONIC,ID=52882,BLACK,TRIM1#,2#,4#
PANASONIC,ID=52883,BLACK,TRIM1#,2#,4#
PANASONIC,ID=52883,AUDIO-6CD-CHANGER USB BLUETOOTH 6SPEAKER,BLACK,TRIM1#,2#,4#
PANASONIC,ID=528C6,BLACK,TRIM2#,4#
PANASONIC,ID=528C6,AUDIO-6CD-CHANGER USB BLUETOOTH 6SPEAKER,BLACK,TRIM2#,4#
86120AKNOB, RADIO RECEIVER SWITCH
86190CADAPTER ASSY, STEREO JACK, NO.1
861A0COMPUTER ASSY, MULTI-MEDIA INTERFACE
861A2BRACKET, MULTI-MEDIA INTERFACE, NO.1
861A3BRACKET, MULTI-MEDIA INTERFACE, NO.2
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
9011906952
main90119-06952
9015350010
main90153-50010
9017906264
main90179-06264
11 parts on this diagram · 2 diagrams in section
