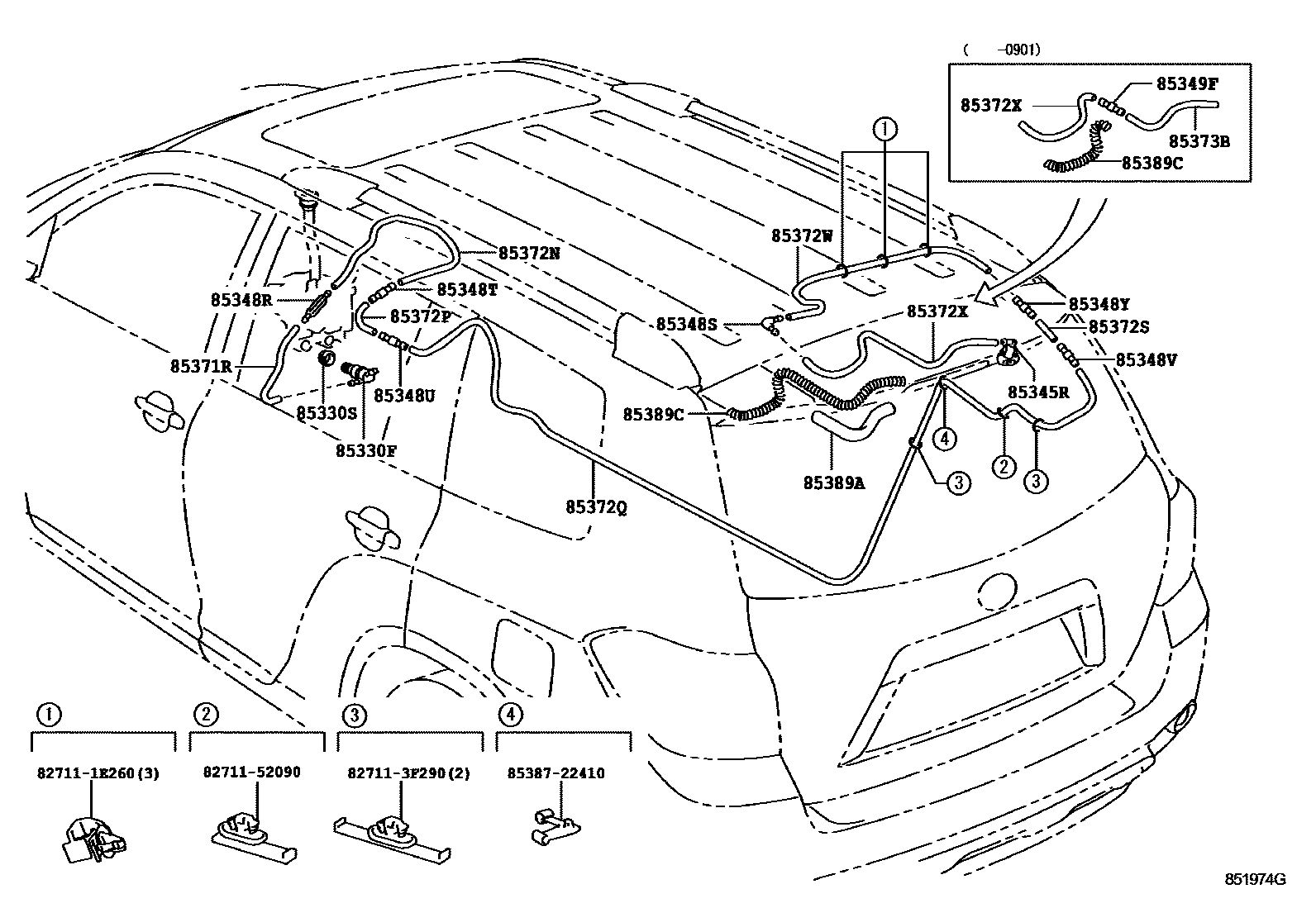

REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=300)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1800(*H,L=940); L=1800(*H,L=940),REAR SPOILER-WITH(HIGH MOUNT STOP LAMP)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=50); L=1450(*H,L=50),REAR SPOILER-WITH(HIGH MOUNT STOP LAMP)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=4850; L=4850,REAR SPOILER-WITH(HIGH MOUNT STOP LAMP)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=50); L=1450(*H,L=50),REAR SPOILER-WITH(HIGH MOUNT STOP LAMP)
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=1800(*H,L=610); L=1800(*H,L=610),REAR SPOILER-WITH(HIGH MOUNT STOP LAMP)
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=1450(*H,L=320); L=1450(*H,L=320),REAR SPOILER-WITH(HIGH MOUNT STOP LAMP)
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
L=1450(*H,L=320); L=1450(*H,L=320),REAR SPOILER-WITH(HIGH MOUNT STOP LAMP)
85389APACKING, WINDSHIELD WASHER HOSE, NO.2
827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E260
827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F290
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8538722410CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-22410
24 parts on this diagram · 2 diagrams in section
