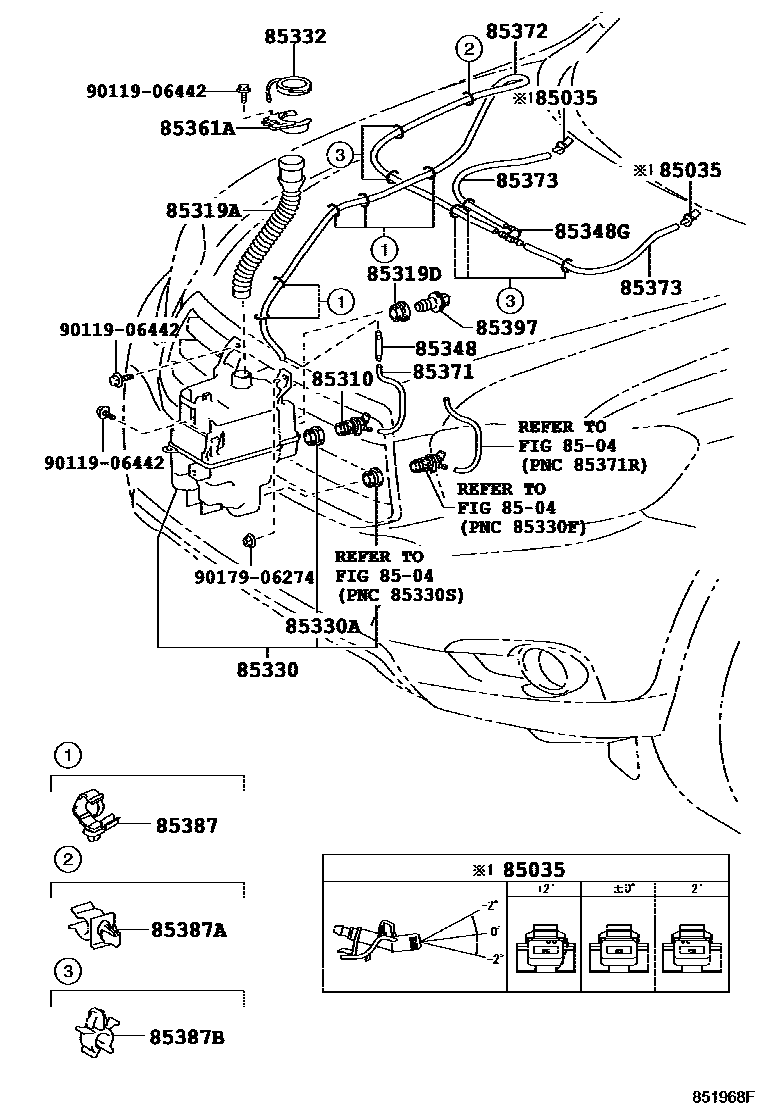

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12300iGSU4#200705-201007

ANGLE 0

main85381-12310iGSU4#200705-201007

ANGLE -2

main85381-12320iGSU4#..ARL200705-201007

ANGLE +2

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47010iGSU45..RUS201007-201312

main85330-60190iGSU4#..ARL200705-201312

85319AHOSE, INLET

main85319-48150iGSU4#200705-201312

85319DPACKING, FRONT WASHER

main85319-33230iGSU4#200705-201007

85330JAR ASSY, WINDSHIELD WASHER

main85315-48150iGSU4#200705-201007

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iGSU4#200705-201007

85332CAP, WINDSHIELD WASHER JAR

main85316-48050iGSU4#201005-201312

main85316-48060iGSU4#200705-201005

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-32150iGSU4#200705-201007

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85321-28020iGSU4#..CHI200705-201007

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-30380iGSU4#200705-201007

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iGSU4#200705-201007

L=1450(*H,L=330)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803iGSU4#..CHI200705-201007

L=2350

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iGSU4#..CHI200705-201007

L=1450(*H,L=550)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E350iGSU4#..CHI200705-201007

85387ACLAMP, WASHER, NO.2

main85371-32020iGSU4#..CHI200705-201007

85387BCLAMP, WASHER, NO.3

main90469-07011iGSU4#..CHI200705-201007

85397SWITCH ASSY,LEVEL WARNING

main85397-30400iGSU4#200705-201007

9011906442

main90119-06442

9017906274

main90179-06274

20 parts on this diagram · 1 diagram in section
