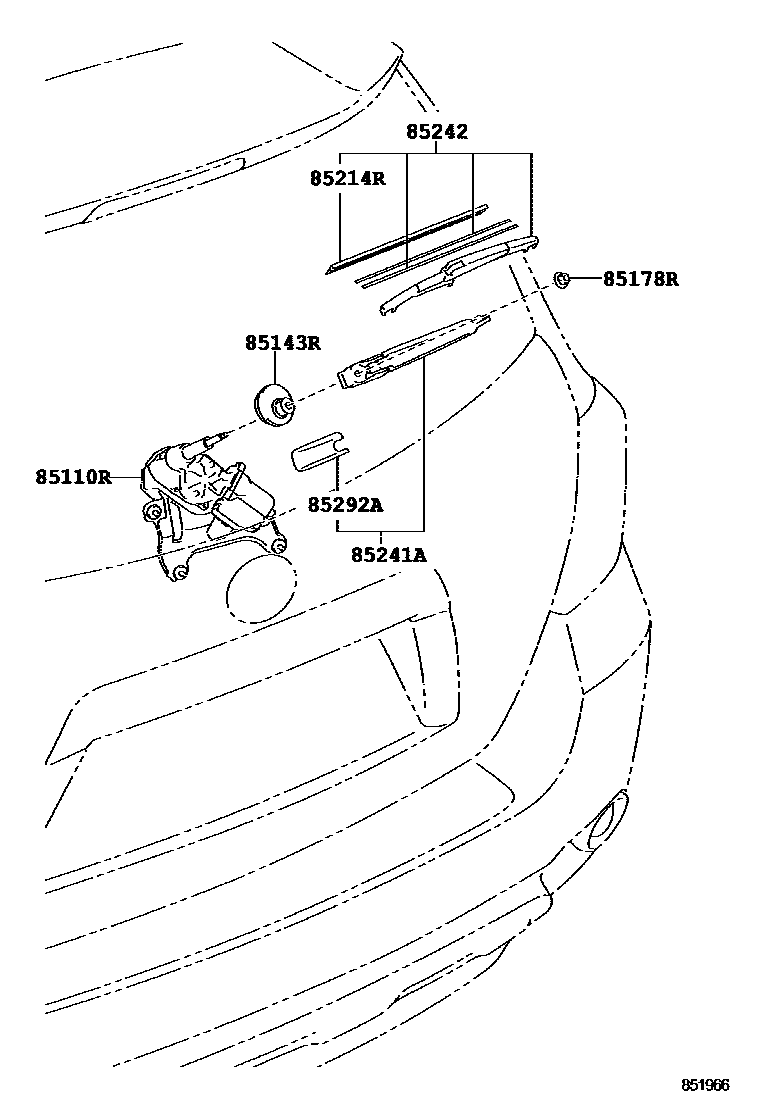

REAR WIPER

0001 1FIXED WINDOW 0002 1HATCH GLASS

85110RMOTOR ASSY, REAR WIPER

main85130-48040iGSU45..CHI200705-200901

main85130-48041iGSU4#201307

main85130-48050iGSU40..CHI200705-200901

85143RGROMMET, REAR WIPER MOTOR

main85143-48020iGSU40..CHI200705-200901

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iGSU4#..CHI200705-200901

85214RRUBBER, REAR WIPER

main85214-31010iGSU40..CHI200705-200901

main85214-42040iGSU45..CHI200705-200901

85241AARM, REAR WIPER

main85241-42060iGSU4#..CHI200705-200901

85242BLADE, RR WIPER

main85242-42030iGSU4#..CHI200705-200901

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iGSU4#..CHI200705-200901

7 parts on this diagram · 2 diagrams in section
