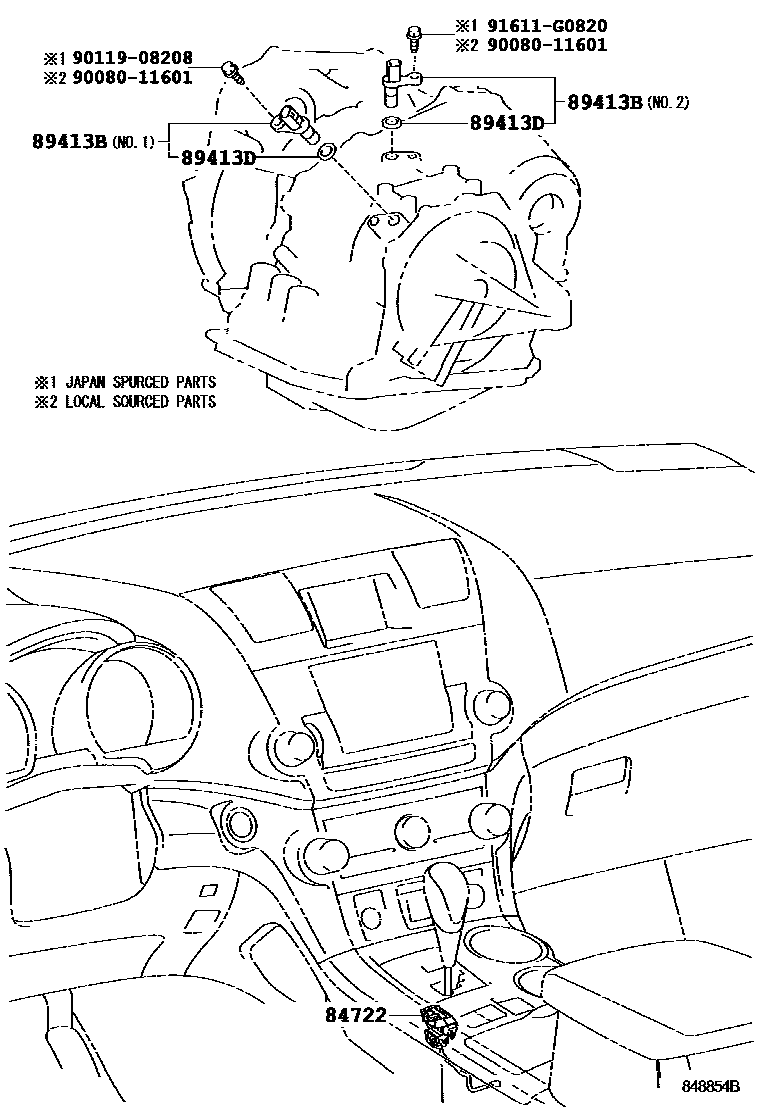

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84722SWITCH, TRANSMISSION CONTROL

main84722-33250iGSU45..RUS201007-201312

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-08010iGSU4#..CHI200707-200808

NO.2,(L)

main89413-08020iGSU4#..CHI200707-200808

NO.1,(L)

main89413-24010iGSU4#..CHI200707-200808

NO.1,(J)

main89413-48010iGSU4#..CHI200808-200901

NO.2

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2iGSU4#..CHI200705-200901

9008011601

main90080-11601

9011908208

main90119-08208

91611G0820

main91611-G0820

6 parts on this diagram · 1 diagram in section
