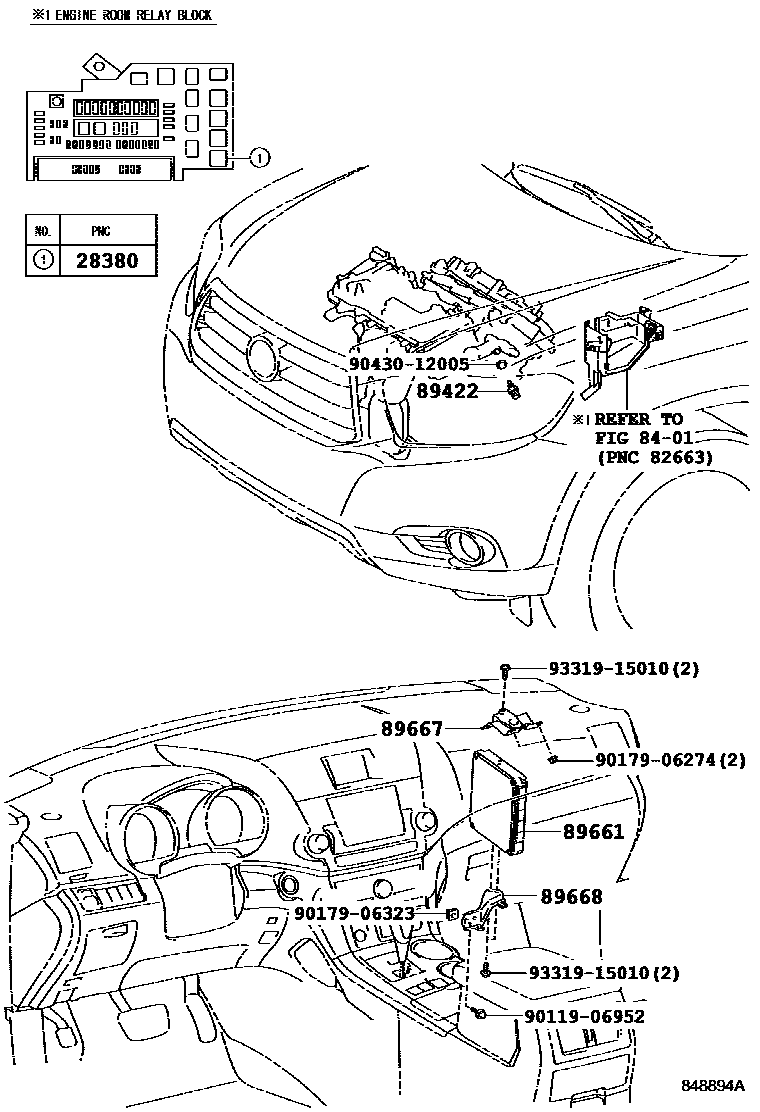

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28380RELAY ASSY, FUEL PUMP

main90987-04004i2GRFE..GSU4#200705-201007

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGSU4#200705-201007

89661COMPUTER, ENGINE CONTROL

main89661-48D00iGSU40..ARL200705-201007

main89661-48D10iGSU45..ARL200705-201007

main89661-48F60iGSU40201007

main89661-48F70iGSU45201007

main89661-48B80supersedes 89661-48C00iGSU40..CHI200705-200901

BEIJING SPEC

main89661-48B90supersedes 89661-48C10iGSU45..CHI200705-200901

BEIJING SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-48090iGSU4#..CHI200705-200901

main89667-48100iGSU4#..ARL200705-201007

main89667-48140iGSU45..RUS201007

main89667-48150iGSU4#..ARL201007

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48070iGSU4#..CHI200705-200901

main89668-48080iGSU4#..ARL200705-201007

main89668-48120iGSU45..RUS201007

main89668-48130iGSU4#..ARL201007

9011906952

main90119-06952

9017906274

main90179-06274

9017906323

main90179-06323

9043012005

main90430-12005

9331915010

main93319-15010

11 parts on this diagram · 2 diagrams in section
