SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 1/2 0007 1INSTRUMENT PANEL 1/2 0008 1INSTRUMENT PANEL 2/2 0009 1STEERING 0010 1SEAT 0011 1DOOR,ROOF,FLOOR & BACK DOOR

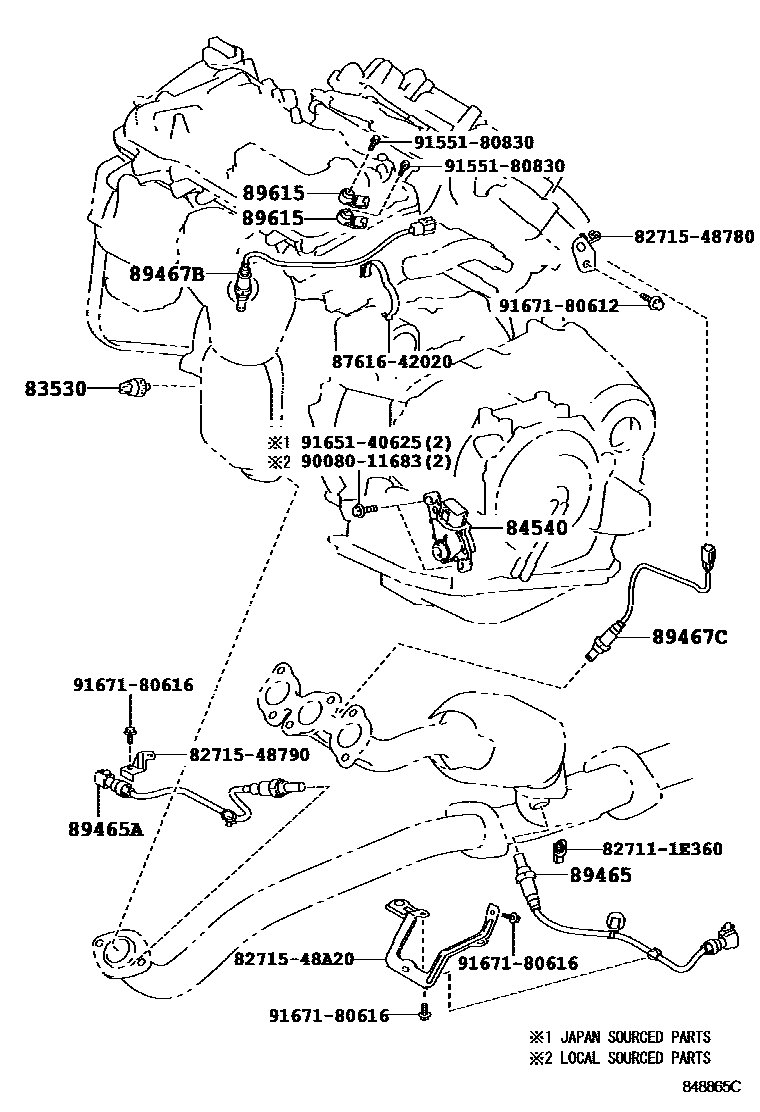

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGSU4#..CHI200705-201007

DENSO

main83530-60020iGSU4#..ARL200705-201007

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-0E010iGSU4#..ARL200801-201007

(L)

main84540-42010iGSU4#200705-201312

main84540-42010iGSU4#..CHI200801-201007

(J)

89465SENSOR, OXYGEN

main89465-48110iGSU4#200705-201312

89465ASENSOR, OXYGEN NO.2

main89465-68050iGSU4#200705-201312

89467BSENSOR, AIR FUEL RATIO

main89467-48120iGSU4#..CHI200705-201007

main89467-48200iGSU4#201007

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-48130iGSU4#..CHI200705-201007

main89467-48210iGSU4#201007

89615SENSOR, KNOCK CONTROL

main89615-20090iGSU4#200705-201007

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

8271548780BRACKET,WIRING HARNESS CLAMP

main82715-48780

8271548790BRACKET,WIRING HARNESS CLAMP

main82715-48790

8271548A20BRACKET,WIRING HARNESS CLAMP

main82715-48A20

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9008011683

main90080-11683

9155180830

main91551-80830

9165140625

main91651-40625

9167180612

main91671-80612

9167180616

main91671-80616

17 parts on this diagram · 11 diagrams in section
