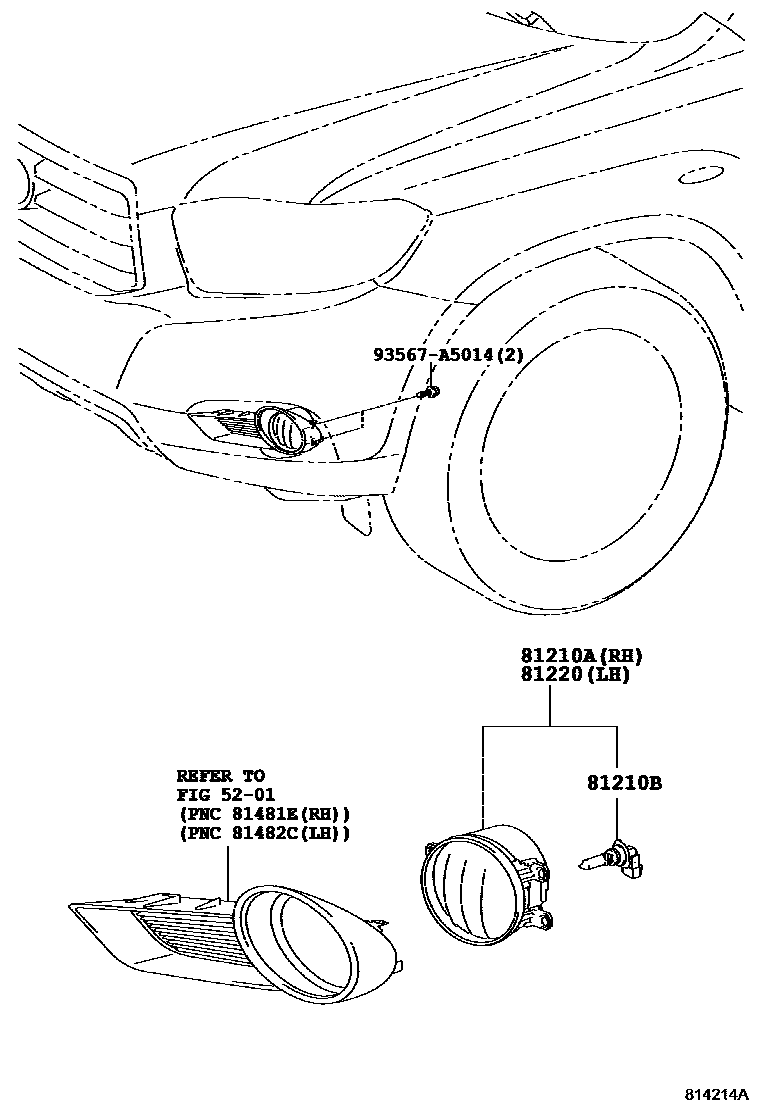

FOG LAMP

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-0D041iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201004

FOG LAMP-WITH

main81210-0D042iGSU4#..GD201005-201007

FOG LAMP-WITH

main81210-0E021iGSU4#..STD..ARL201012-201111

ALTITUDE

main81210-0E021iGSU4#..GD,LIMD;GSU45..STD..RUS201012-201111

CVX PACKAGE

main81210-0E022iGSU4#..GD,LIMD;GSU45..STD..RUS201111-201312

CVX PACKAGE

main81210-0E022iGSU4#..GD,LIMD;GSU45..STD..RUS201111-201312

ALTITUDE

main81210-0E030iGSU4#..STD..ARL201007-201012

ALTITUDE

main81210-0E030iGSU4#..GD,LIMD;GSU45..STD..RUS201007-201012

CVX PACKAGE

81210BBULB, FOG LAMP

main90981-13075iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

12V 55W,HALOGEN,PHILIPS

main90981-13075iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

12V 55W,HALOGEN,FOG LAMP-WITH,PHILIPS

main90981-13081iGSU4#..STD..ARL200705-201007

12V 55W,HALOGEN,FOG LAMP-WITH,OSRAM

main90981-13081iGSU4#..STD..ARL200705-201007

12V 55W,HALOGEN,OSRAM

main90981-AD011iGSU4#..STD..ARL201012

12V 26W,CVX PACKAGE

main90981-AD011iGSU4#..GD,LIMD;GSU45..STD..RUS201012

12V 26W

main90981-AD011iGSU4#..GD,LIMD;GSU45..STD..RUS201012

12V 26W,ALTITUDE

main90981-WD015iGSU4#..GD,LIMD;GSU45..STD..RUS201007-201012

12V 24W,ALTITUDE

main90981-WD015iGSU4#..GD,LIMD;GSU45..STD..RUS201007-201012

12V 24W,CVX PACKAGE

main90981-WD015iGSU4#..GD,LIMD;GSU45..STD..RUS201007-201012

12V 24W

81220LAMP ASSY, FOG, LH

main81210-0E021iGSU4#..STD..ARL201012-201111

CVX PACKAGE

main81210-0E021iGSU4#..STD..ARL201012-201111

ALTITUDE

main81210-0E022iGSU4#..GD,LIMD;GSU45..STD..RUS201111-201312

ALTITUDE

main81210-0E022iGSU4#..GD,LIMD;GSU45..STD..RUS201111-201312

CVX PACKAGE

main81210-0E030iGSU4#..STD..ARL201007-201012

CVX PACKAGE

main81210-0E030iGSU4#..STD..ARL201007-201012

ALTITUDE

main81220-0D041iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201004

FOG LAMP-WITH

main81220-0D042iGSU4#..GD201005-201007

FOG LAMP-WITH

93567A5014

main93567-A5014

5 parts on this diagram · 2 diagrams in section
