ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

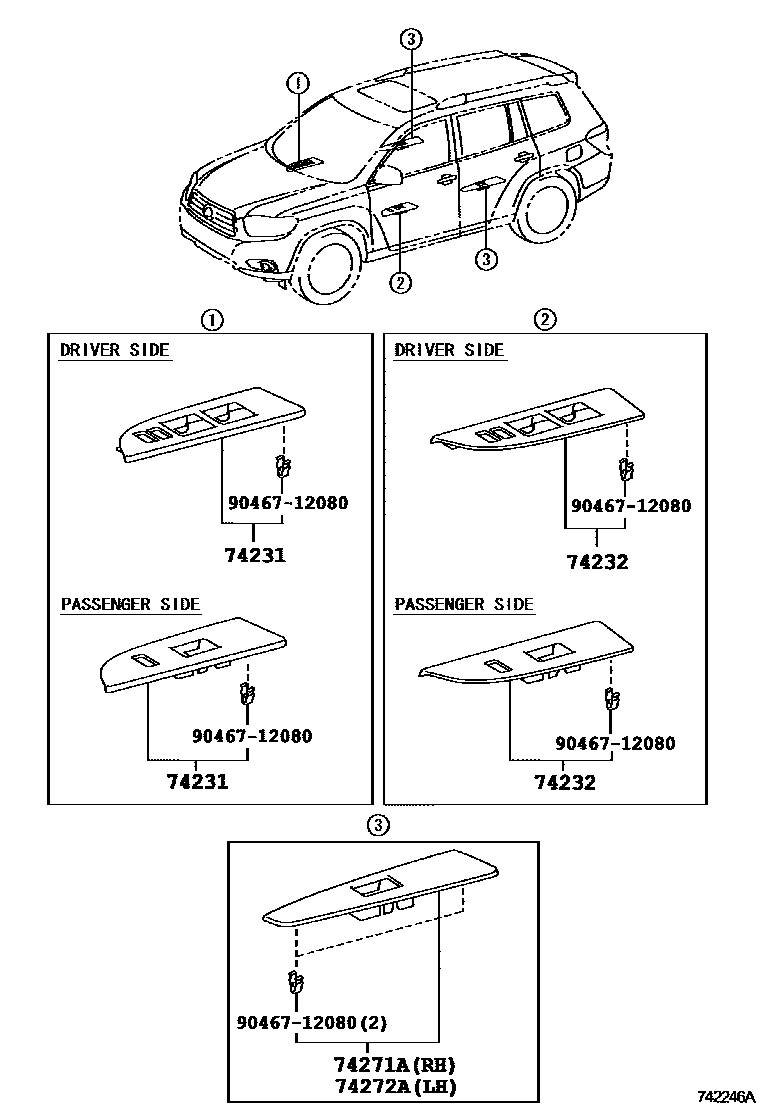

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-48060-B0iGSU4#..CHI200705-200901

GRAY,TRIM1#

main74231-48060-C0iGSU45..CHI200705-200901

BLACK,TRIM2#

main74231-48060-E0iGSU4#..CHI200705-200901

SAND BEIGE,TRIM4#

main74231-48080-B0iGSU4#..STD..ARL200705-201007

GRAY,TRIM1#

main74231-48080-C0iGSU4#..ARL200705-201007

BLACK,TRIM2#

main74231-48080-E0iGSU4#..ARL201007-201312

SAND BEIGE,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-48060-B0iGSU4#..STD..ARL200705-201007

GRAY,TRIM1#

main74232-48060-C0iGSU4#..ARL201007-201312

BLACK,TRIM2#

main74232-48060-E0iGSU4#..ARL201007-201312

SAND BEIGE,TRIM4#

main74232-48070-B0iGSU4#..(SPO,STD)..CHI200705-200812

GRAY,TRIM1#

main74232-48070-C0iGSU45..LIMD200705-200901

BLACK,TRIM2#

main74232-48070-E0iGSU45..RUS201007-201312

SAND BEIGE,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-48040-B0iGSU4#..ARL201007-201312

GRAY,TRIM1#

main74271-48040-C0iGSU4#201007-201312

BLACK,TRIM2#

main74271-48040-E0iGSU4#201007-201312

SAND BEIGE,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-48040-B0iGSU4#..LIMD,SPO,STD200705-201007

GRAY,TRIM1#

main74272-48040-C0iGSU4#201007-201312

BLACK,TRIM2#

main74272-48040-E0iGSU4#201007-201312

SAND BEIGE,TRIM4#

9046712080

main90467-12080

5 parts on this diagram · 2 diagrams in section
