SEAT BELT & CHILD RESTRAINT SEAT

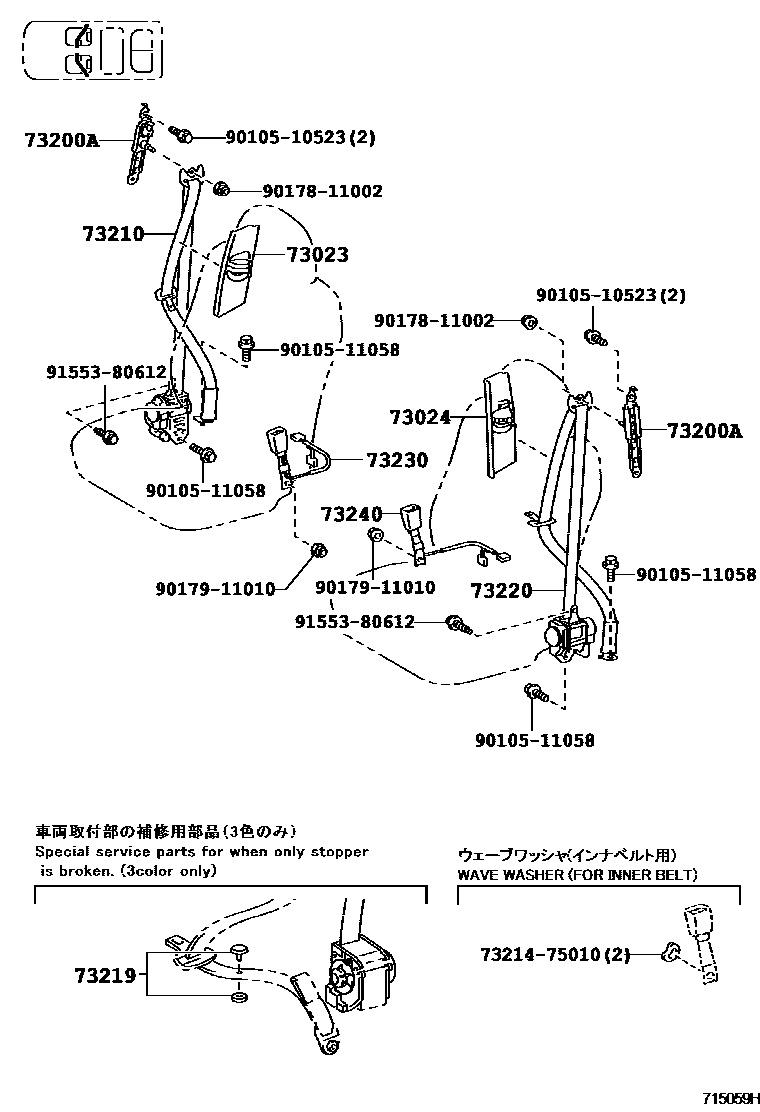

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-33020-B0i200705-201312
GRAY,TRIM1#,2#
main73023-33020-B0i200705-200901
GRAY,TRIM1#
main73023-33020-B0i200705-201007
GRAY,TRIM2#
main73023-33020-E1i200705-201312
SAND BEIGE,TRIM4#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-33020-B0i200705-201007
GRAY,TRIM2#
main73024-33020-B0i200705-201312
GRAY,TRIM1#,2#
main73024-33020-B0i200705-200901
GRAY,TRIM1#
main73024-33020-E1i200705-201312
SAND BEIGE,TRIM4#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-53010i200705-201007
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-48170-A0i200705-200711
IVORY,TRIM4#
main73210-48170-B0i200705-200711
GRAY,TRIM1#
main73210-48170-C0i200705-200711
BLACK,TRIM2#
main73210-48180-A0i200705-200901
IVORY,TRIM4#
main73210-48180-B0i200705-200901
GRAY,TRIM1#
main73210-48180-C0i200705-200901
BLACK,TRIM2#
main73210-48290-A0i200711-201007
IVORY,TRIM4#
main73210-48290-B0i200711-201007
GRAY,TRIM1#
main73210-48290-C0i200711-201007
BLACK,TRIM2#
main73210-48330-A0i201007-201205
SAND BEIGE,TRIM4#
main73210-48330-B0i201007-201205
GRAY,TRIM1#
main73210-48330-C0i201007-201205
BLACK,TRIM2#
main73210-48331-A0i201206-201312
IVORY,TRIM4#
main73210-48331-B0i201206-201312
GRAY,TRIM1#
main73210-48331-C0i201206-201312
BLACK,TRIM2#
main73210-48340-A0i201007-201205
SAND BEIGE,TRIM4#
main73210-48340-C0i201007-201205
BLACK,TRIM2#
main73210-48341-A0i201206-201302
IVORY,TRIM4#
main73210-48341-C0i201206-201302
BLACK,TRIM2#
main73210-48342-A0i201303-201312
IVORY,TRIM4#
main73210-48342-C0i201303-201312
BLACK,TRIM2#
73219STOPPER, TONGUE PLATE
main73219-33010i200705-201007
BLACK
main73219-33020i200705-201007
GRAY
main73219-33030i200705-201007
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-48150-A0i200705-201007
IVORY,TRIM4#
main73220-48150-B0i200705-201007
GRAY,TRIM1#
main73220-48150-C0i200705-201007
BLACK,TRIM2#
main73220-48160-A0i200705-200901
IVORY,TRIM4#
main73220-48160-B0i200705-200901
GRAY,TRIM1#
main73220-48160-C0i200705-200901
BLACK,TRIM2#
main73220-48280-A0i201007-201205
SAND BEIGE,TRIM4#
main73220-48280-B0i201007-201205
GRAY,TRIM1#
main73220-48280-C0i201007-201205
BLACK,TRIM2#
main73220-48281-A0i201206-201302
IVORY,TRIM4#
main73220-48281-B0i201206-201302
GRAY,TRIM1#
main73220-48281-C0i201206-201302
BLACK,TRIM2#
main73220-48282-A0i201303-201312
IVORY,TRIM4#
main73220-48282-B0i201303-201312
GRAY,TRIM1#
main73220-48282-C0i201303-201312
BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-48170-B0i200705-200901
NEW GRAY,TRIM1#
main73230-48170-C0i200705-200901
BLACK,TRIM2#
main73230-48170-E0i200705-200901
SAND BEIGE,TRIM4#
main73230-48220-B0i200705-200901
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,NEW GRAY,TRIM1#
main73230-48220-B0i200705-200901
NEW GRAY,TRIM1#
main73230-48220-C0i200705-201312
BLACK,TRIM2#
main73230-48220-C0i200705-200901
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,BLACK,TRIM2#
main73230-48220-E0i200705-201312
SAND BEIGE,TRIM4#
main73230-48220-E0i200705-200901
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4#
main73230-48240-B0i200705-201007
GRAY,TRIM1#
main73230-48240-C0i200705-201007
BLACK,TRIM2#
main73230-48240-E0i200705-201007
SAND BEIGE,TRIM4#
main73230-48250-C0i201007-201312
FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,BLACK,TRIM2#
main73230-48250-C0i200705-201312
BLACK,TRIM2#
main73230-48250-C0i200705-201007
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,BLACK,TRIM2#
main73230-48250-C0i200705-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,BLACK,TRIM2#
main73230-48250-C0i201007-201312
FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,BLACK,TRIM2#
main73230-48250-E0i201007-201312
FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4#
main73230-48250-E0i200705-201312
SAND BEIGE,TRIM4#
main73230-48250-E0i201007-201312
FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4#
main73230-48250-E0i200705-201007
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4#
main73230-48250-E0i200705-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4#
main73230-48450-B0i201007-201312
GRAY,TRIM1#
main73230-48450-C0i201007-201312
BLACK,TRIM2#
main73230-48450-E0i201007-201312
SAND BEIGE,TRIM4#
main73230-48460-C0i201007-201312
BLACK,TRIM2#
main73230-48460-E0i201007-201312
SAND BEIGE,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-48170-B0i200705-201007
NEW GRAY,TRIM1#
main73230-48170-C0i200705-201007
BLACK,TRIM2#
main73230-48170-E0i200705-201007
SAND BEIGE,TRIM4#
main73230-48220-C0i200705-201312
BLACK,TRIM2#
main73230-48220-C0i201007-201312
FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,BLACK,TRIM2#
main73230-48220-C0i200705-201007
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,BLACK,TRIM2#
main73230-48220-E0i200705-201312
SAND BEIGE,TRIM4#
main73230-48220-E0i200705-201007
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4#
main73230-48220-E0i201007-201312
FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4#
main73230-48240-B0i200705-200901
GRAY,TRIM1#
main73230-48240-E0i200705-200901
SAND BEIGE,TRIM4#
main73230-48250-B0i200705-200901
GRAY,TRIM1#
main73230-48250-C0i200705-201312
BLACK,TRIM2#
main73230-48250-C0i201007-201312
FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,BLACK,TRIM2#
main73230-48250-E0i200705-201312
SAND BEIGE,TRIM4#
main73230-48250-E0i201007-201312
FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4#
main73230-48450-C0i201007-201312
BLACK,TRIM2#
main73230-48450-E0i201007-201312
SAND BEIGE,TRIM4#
main73230-48460-B0i201007-201312
GRAY,TRIM1#
main73230-48460-C0i201007-201312
BLACK,TRIM2#
main73230-48460-E0i201007-201312
SAND BEIGE,TRIM4#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511058
main90105-11058
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612

14 parts on this diagram · 5 diagrams in section
