EPC Data

FRONT SEAT & SEAT TRACK

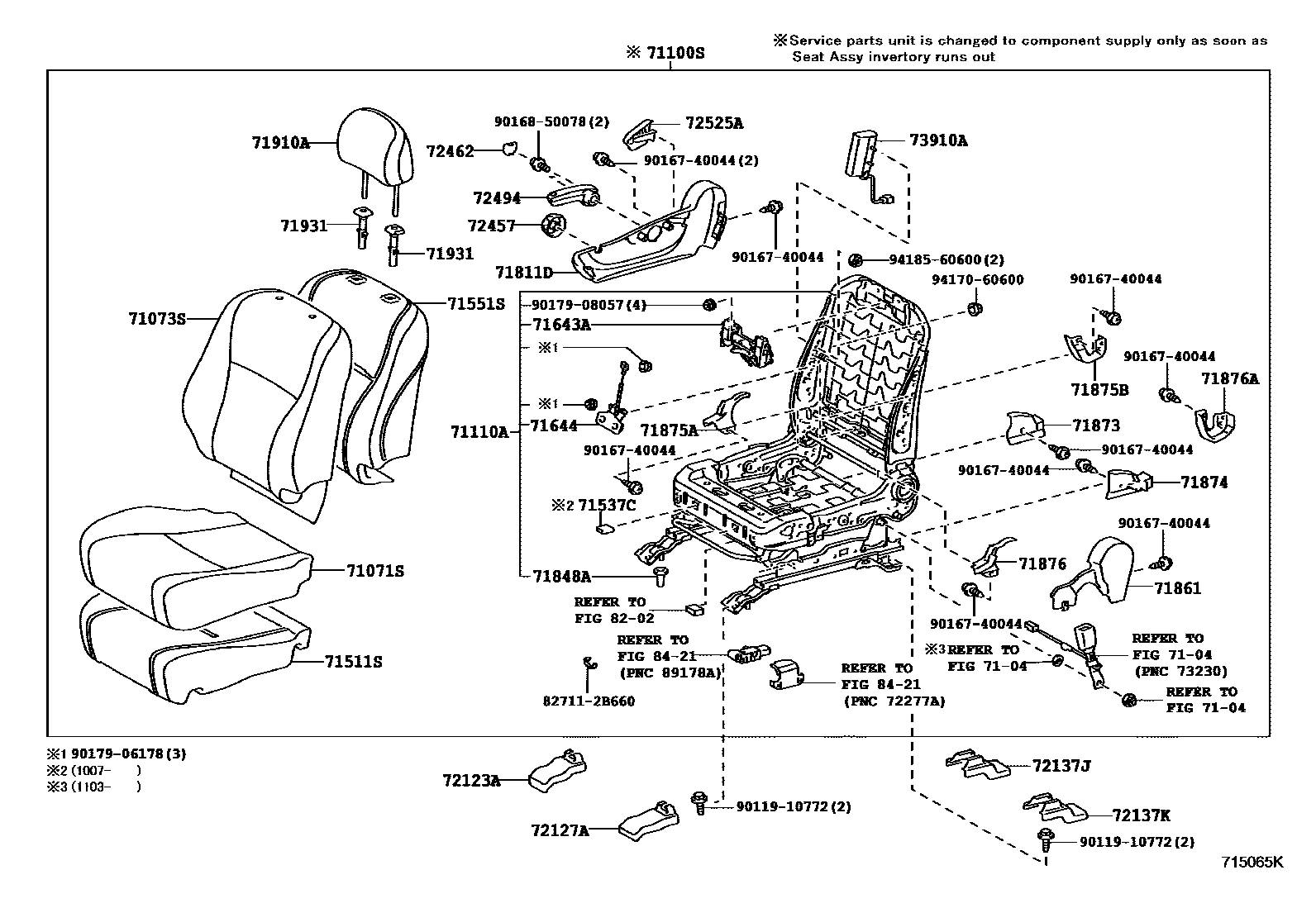

Parts diagram
7104
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-48510-B0i200705-200901
GRAY,TRIM1#
main71071-48510-E0i200705-200901
SAND BEIGE,TRIM4#
main71071-48560-B0supersedes 71071-48520-B0i200705-200901
GRAY,TRIM1#
main71071-48560-C0supersedes 71071-48520-C0i200705-200901
BLACK,TRIM2#
main71071-48560-E0supersedes 71071-48520-E0i200705-200901
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4#
main71071-48600-C0i200705-201007
BLACK,TRIM2#
main71071-48600-E0i200705-201007
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
main71071-48670-C2i201007-201312
BLACK,TRIM2#
sub71071-48671
main71071-48670-E2i201007-201312
SAND BEIGE,TRIM4#
sub71071-48671
main71071-48680-C2supersedes 71071-48611-C1i201007-201312
BLACK,TRIM2#
sub71071-48681
main71071-48680-E2supersedes 71071-48611-E1i201007-201312
SAND BEIGE,TRIM4#
sub71071-48681
main71071-48691-C0i201007-201312
BLACK,TRIM2#
sub71071-48692
main71071-48691-E0i201007-201312
SAND BEIGE,TRIM4#
sub71071-48692
main71071-48580-B0supersedes 71071-48611-B1i200705-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),GRAY,TRIM1#
sub71071-48582
main71071-48580-C0supersedes 71071-48611-C1i200705-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),BLACK,TRIM2#
sub71071-48582
main71071-48580-E0supersedes 71071-48611-E1i200705-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub71071-48582
main71071-48581-B1supersedes 71071-48611-B1i201007-201312
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1#
sub71071-48583
main71071-48581-C1supersedes 71071-48611-C1i201007-201312
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,BLACK,TRIM2#
sub71071-48583
main71071-48581-E1supersedes 71071-48611-E1i201007-201312
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4#
sub71071-48583
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-48620-B0i200705-200901
GRAY,TRIM1#
sub71073-48A50
main71073-48620-E0i200705-200901
SAND BEIGE,TRIM4#
sub71073-48A50
main71073-48670-B1supersedes 71073-48630-B0i200705-200901
GRAY,TRIM1#
sub71073-48A70
main71073-48670-C1supersedes 71073-48630-C0i200705-201001
BLACK,TRIM2#
sub71073-48A70
main71073-48670-E1supersedes 71073-48630-E0i200705-201001
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub71073-48A70
main71073-48671-C1i201001-201007
BLACK,TRIM2#
sub71073-48A70
main71073-48671-E1i201001-201007
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub71073-48A70
main71073-48891-C2supersedes 71073-48861-C0i201007-201312
BLACK,TRIM2#
sub71073-48892
main71073-48891-E2supersedes 71073-48861-E0i201007-201312
SAND BEIGE,TRIM4#
sub71073-48892
main71073-48A11-C0i201007-201312
BLACK,TRIM2#
sub71073-48A12
main71073-48A11-E0i201007-201312
SAND BEIGE,TRIM4#
sub71073-48A12
main71073-48631-B0supersedes 71073-48861-B0i201001-201007
WITHOUT(REAR NO.2 SEAT)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),GRAY,TRIM1#
sub71073-48D00
main71073-48631-C0supersedes 71073-48861-C0i201001-201007
WITHOUT(REAR NO.2 SEAT)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),BLACK,TRIM2#
sub71073-48D00
main71073-48631-E0supersedes 71073-48861-E0i201001-201007
WITHOUT(REAR NO.2 SEAT)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub71073-48D00
main71073-48690-B0supersedes 71073-48861-B0i200705-201001
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),GRAY,TRIM1#
main71073-48690-C0supersedes 71073-48861-C0i200705-201001
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),BLACK,TRIM2#
main71073-48690-E0supersedes 71073-48861-E0i200705-201001
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
main71073-48691-B0supersedes 71073-48861-B0i201001-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),GRAY,TRIM1#
sub71073-48C80
main71073-48691-C0supersedes 71073-48861-C0i201001-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),BLACK,TRIM2#
sub71073-48C80
main71073-48691-E0supersedes 71073-48861-E0i201001-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub71073-48C80
main71073-48881-B1supersedes 71073-48861-B0i201007-201312
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1#
sub71073-48882
main71073-48881-C1supersedes 71073-48861-C0i201007-201312
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,BLACK,TRIM2#
sub71073-48882
main71073-48881-E1supersedes 71073-48861-E0i201007-201312
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4#
sub71073-48882
71100SSEAT ASSY, FRONT RH
main71100-48F00-B0i200705-200901
GRAY,TRIM1#
sub71100-48F01
main71100-48F00-E0i200705-200901
SAND BEIGE,TRIM4#
sub71100-48F01
main71100-48F60-C2i200705-201001
BLACK,TRIM2#
main71100-48F60-E2i200705-201001
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
main71100-48F61-C0i201001-201007
BLACK,TRIM2#
main71100-48F61-E0i201001-201007
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
main71100-48F80-B3supersedes 71100-48F70-B0i200705-200901
GRAY,TRIM1#
sub71100-48F81
main71100-48F80-C3supersedes 71100-48F70-C0i200705-200901
BLACK,TRIM2#
sub71100-48F81
main71100-48F80-E3supersedes 71100-48F70-E0i200705-200901
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4#
sub71100-48F81
main71100-48L90-C0i201007-201302
BLACK,TRIM2#
main71100-48L90-E0i201007-201302
SAND BEIGE,TRIM4#
main71100-48L91-C0i201302-201312
BLACK,TRIM2#
sub71100-48L92
main71100-48L91-E0i201302-201312
SAND BEIGE,TRIM4#
sub71100-48L92
main71100-48M00-C2i201007-201302
BLACK,TRIM2#
main71100-48M00-E2i201007-201302
SAND BEIGE,TRIM4#
main71100-48M01-C0i201302-201312
BLACK,TRIM2#
sub71100-48M02
main71100-48M01-E0i201302-201312
SAND BEIGE,TRIM4#
sub71100-48M02
main71100-48M40-C2supersedes 71100-48M10-C0i201007-201312
BLACK,TRIM2#
sub71100-48M41
main71100-48M40-E2supersedes 71100-48M10-E0i201007-201312
SAND BEIGE,TRIM4#
sub71100-48M41
main71100-48E30-B0supersedes 71100-48M10-B0i200705-201001
WITHOUT(REAR NO.2 SEAT)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),GRAY,TRIM1#
main71100-48E30-C0supersedes 71100-48M10-C0i200705-201001
WITHOUT(REAR NO.2 SEAT)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),BLACK,TRIM2#
main71100-48E30-E0supersedes 71100-48M10-E0i200705-201001
WITHOUT(REAR NO.2 SEAT)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
main71100-48E31-B0supersedes 71100-48M10-B0i201001-201007
WITHOUT(REAR NO.2 SEAT)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),GRAY,TRIM1#
sub71100-48S00
main71100-48E31-C0supersedes 71100-48M10-C0i201001-201007
WITHOUT(REAR NO.2 SEAT)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),BLACK,TRIM2#
sub71100-48S00
main71100-48E31-E0supersedes 71100-48M10-E0i201001-201007
WITHOUT(REAR NO.2 SEAT)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub71100-48S00
main71100-48F50-B2supersedes 71100-48M10-B0i200705-201001
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),GRAY,TRIM1#
sub71100-48S60
main71100-48F50-C2supersedes 71100-48M10-C0i200705-201001
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),BLACK,TRIM2#
sub71100-48S60
main71100-48F50-E2supersedes 71100-48M10-E0i200705-201001
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub71100-48S60
main71100-48F51-B0supersedes 71100-48M10-B0i201001-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),GRAY,TRIM1#
sub71100-48S70
main71100-48F51-C0supersedes 71100-48M10-C0i201001-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),BLACK,TRIM2#
sub71100-48S70
main71100-48F51-E0supersedes 71100-48M10-E0i201001-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub71100-48S70
main71100-48M30-B0supersedes 71100-48M10-B0i201007-201312
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1#
sub71100-48M31
main71100-48M30-C0supersedes 71100-48M10-C0i201007-201312
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,BLACK,TRIM2#
sub71100-48M31
main71100-48M30-E0supersedes 71100-48M10-E0i201007-201312
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4#
sub71100-48M31
71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH
main71110-48170i200705-201007
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
main71110-48171supersedes 71110-48201i201103-201312
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER(WITH PERFORATION)&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER
main71110-48180i201007-201103
main71110-48181i201103-201312
main71110-48190i200705-200901
WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER
main71110-48191i201103-201312
main71110-48160supersedes 71110-48201i201007-201103
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL
main71110-48161supersedes 71110-48201i201103-201312
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-48150supersedes 71511-48130i200705-201007
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
main71511-48160i201007
main71511-48170i200705-200901
WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER
main71511-48140supersedes 71511-48130i201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL
71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH
main71537-26010×2i201007
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-48090supersedes 71551-48100i200705-201007
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
main71551-48160i201007
71643AUNIT, ACTIVE HEADREST, UPR
main71643-12011×2i201007
71644UNIT, ACTIVE HEADREST, LWR
main71644-12030×2i200705-201007
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-48130-B0i200705-200901
GRAY,TRIM1#
main71811-48130-C0i201007-201312
BLACK,TRIM2#
main71811-48130-E0i201007-201312
SAND BEIGE,TRIM4#
main71811-48140-B0i200705-200901
GRAY,TRIM1#
main71811-48140-C0supersedes 71811-48130-C0i200705-200901
BLACK,TRIM2#
main71811-48140-E0i200705-200901
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4#
main71811-48170-C0supersedes 71811-48150-C0i200705-201007
BLACK,TRIM2#
main71811-48170-E0supersedes 71811-48150-E0i201007-201312
SAND BEIGE,TRIM4#
main71811-48160-B0supersedes 71811-48150-B0i201007-201312
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1#
main71811-48160-C0supersedes 71811-48150-C0i200705-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),BLACK,TRIM2#
main71811-48160-E0supersedes 71811-48150-E0i201007-201312
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4#
71848ACAP, SEAT ADJUSTER COVER, RH
main71848-33010×2i201007
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER(WITH PERFORATION)&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-33070-B1supersedes 71861-48070-B0i200705-200901
GRAY,TRIM1#
main71861-33070-C0i200705-201007
BLACK,TRIM2#
main71861-33070-E1i200705-201007
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
main71861-48070-B0i200705-201007
GRAY,TRIM1#
main71861-48070-C0i201007-201312
BLACK,TRIM2#
main71861-48070-E0i200705-201007
SAND BEIGE,TRIM4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-48100i201007
main71873-48120i201007
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER(WITH PERFORATION)&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER
main71873-48140i200705-200901
WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-48150i200705-200901
WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER
main71874-12040i200705-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
sub71874-75020
main71874-48160i201007
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-58030-B5supersedes 71875-58040-B6i200705-200901
GRAY,TRIM1#
main71875-58030-C0i200705-201007
BLACK,TRIM2#
main71875-58030-E2i200705-201007
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
main71875-58040-B6i200705-201007
GRAY,TRIM1#
main71875-58040-C0i200705-201007
BLACK,TRIM2#
main71875-58040-E3i200705-201007
SAND BEIGE,TRIM4#
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-58050i200705-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
main71875-58060i201007
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-60150-B5supersedes 71876-58040-B6i200705-200901
GRAY,TRIM1#
main71875-60150-C0i200705-201007
BLACK,TRIM2#
main71875-60150-E4i201007-201312
SAND BEIGE,TRIM4#
main71876-58040-B6i200705-201007
GRAY,TRIM1#
main71876-58040-C0i200705-201007
BLACK,TRIM2#
main71876-58040-E3i200705-201007
SAND BEIGE,TRIM4#
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-58050i200705-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
main71876-58060i201007
71910AHEADREST ASSY, FRONT SEAT
main71910-48350-B0×2i200705-200901
GRAY,TRIM1#
sub71910-48352
main71910-48350-E0×2i200705-200901
SAND BEIGE,TRIM4#
sub71910-48352
main71910-48370-B0×2i200705-200712
GRAY,TRIM1#
main71910-48370-C0×2i200705-200712
BLACK,TRIM2#
main71910-48370-E0×2i200705-200712
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4#
main71910-48371-B0×2supersedes 71910-48361-B0i200801-200901
GRAY,TRIM1#
sub71910-48373
main71910-48371-C0×2supersedes 71910-48361-C0i200801-200902
BLACK,TRIM2#
sub71910-48373
main71910-48371-E0×2supersedes 71910-48361-E0i200801-200902
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub71910-48373
main71910-48372-C0×2i200902-201007
BLACK,TRIM2#
sub71910-48374
main71910-48372-C1×2supersedes 71910-48381-C0i201007-201312
BLACK,TRIM2#
sub71910-48374
main71910-48372-E0×2i200902-201007
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub71910-48374
main71910-48372-E2×2supersedes 71910-48381-E0i201007-201312
SAND BEIGE,TRIM4#
sub71910-48374
main71910-48381-C1×2i201007-201312
BLACK,TRIM2#
main71910-48381-E1×2i201007-201312
SAND BEIGE,TRIM4#
main71910-48362-B0×2supersedes 71910-48381-B1i200902-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),GRAY,TRIM1#
sub71910-48A40
main71910-48362-B1×2supersedes 71910-48381-B1i201007-201312
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1#
sub71910-48A40
main71910-48362-C0×2supersedes 71910-48381-C0i200902-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),BLACK,TRIM2#
sub71910-48A40
main71910-48362-C1×2supersedes 71910-48381-C0i201007-201312
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,BLACK,TRIM2#
sub71910-48A40
main71910-48362-E0×2supersedes 71910-48381-E0i200902-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub71910-48A40
main71910-48362-E1×2supersedes 71910-48381-E0i201007-201312
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4#
sub71910-48A40
71931SUPPORT, FRONT SEAT HEADREST
main71930-44020-B2×2i200705-201007
W(LOCK),GRAY,TRIM1#
sub71930-02370
main71930-44020-C0×2i200705-201007
W(LOCK),BLACK,TRIM2#
sub71930-02370
main71930-44020-E2×2i200705-201007
W(LOCK),SAND BEIGE,TRIM4#
sub71930-02370
main71931-47010-C0×2i200705-201007
W/O(LOCK),BLACK,TRIM2#
sub71931-42020
main71931-47010-E8×2i201007-201312
W/O(LOCK),SAND BEIGE,TRIM4#
sub71931-42020
main71931-47010-P4×2i200705-201007
W/O(LOCK),GRAY,TRIM1#
sub71931-42020
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-48090-C0supersedes 72123-48080-C0i200705-201007
BLACK,TRIM2#
main72123-48090-E0supersedes 72123-48080-E0i200705-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4#
main72123-48100-B0i200705-200901
GRAY,TRIM1#
main72123-48100-C0i201007-201312
BLACK,TRIM1#,2#,4#
main72123-48100-E0i200705-200901
SAND BEIGE,TRIM4#
main72123-48110-B0i200705-200901
GRAY,TRIM1#
main72123-48110-C0supersedes 72123-48100-C0i200705-200901
BLACK,TRIM2#
main72123-48110-E0i200705-200901
FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4#
main72123-48090-B0supersedes 72123-48080-B0i200705-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1#
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72127-48050-B0i200705-200901
GRAY,TRIM1#
main72127-48050-C0i201007-201312
BLACK,TRIM1#,2#,4#
main72127-48050-E0i200705-200901
SAND BEIGE,TRIM4#
main72128-48050-B0supersedes 72127-48030-B0i200705-200901
GRAY,TRIM1#
main72128-48050-C0supersedes 72127-48050-C0i201007-201312
BLACK,TRIM1#,2#,4#
main72128-48050-E0supersedes 72127-48030-E0i200705-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4#
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
main72137-48120-B0supersedes 72137-48080-B0i200705-200901
GRAY,TRIM1#
main72137-48120-C0supersedes 72137-48080-C0i200705-201007
BLACK,TRIM2#
main72137-48120-E0supersedes 72137-48080-E0i200705-201007
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4#
main72137-48150-B0i200705-200901
GRAY,TRIM1#
main72137-48150-C0i201007-201312
BLACK,TRIM1#,2#,4#
main72137-48150-E0i200705-200901
SAND BEIGE,TRIM4#
72137KCOVER, FRONT SEAT TRACK, RH REAR INNER
main72137-48150-B0i200705-200901
GRAY,TRIM1#
main72137-48150-C0i201007-201312
BLACK,TRIM1#,2#,4#
main72137-48150-E0i200705-200901
SAND BEIGE,TRIM4#
main72138-48080-B0supersedes 72137-48080-B0i200705-200901
GRAY,TRIM1#
main72138-48080-C0supersedes 72137-48080-C0i200705-201007
BLACK,TRIM2#
main72138-48080-E0supersedes 72137-48080-E0i200705-201007
SAND BEIGE,TRIM4#
72457KNOB, VERTICAL SEAT ADJUSTER
main72457-58010-B4i201007-201312
NEW GRAY,TRIM1#
main72457-58010-C0i201007-201312
BLACK,TRIM2#
main72457-58010-E3i200705-201007
SAND BEIGE,TRIM4#
72462COVER, VERTICAL ADJUSTER RH
main72462-42010-B1i200705-201007
GRAY,TRIM1#
main72462-42010-C0i200705-201007
BLACK,TRIM2#
main72462-42010-E2i201007-201312
SAND BEIGE,TRIM4#
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-42010-B1i200705-201007
GRAY,TRIM1#
main72494-42010-C0i200705-201007
BLACK,TRIM2#
main72494-42010-E2i201007-201312
SAND BEIGE,TRIM4#
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-42010-B1i200705-200901
GRAY,TRIM1#
main72525-42010-C0i201007-201312
BLACK,TRIM2#
main72525-42010-E2i201007-201312
SAND BEIGE,TRIM4#
main72525-42020-B1i200705-201007
GRAY,TRIM1#
main72525-42020-C0i201007-201312
BLACK,TRIM2#
main72525-42020-E2i200705-201007
SAND BEIGE,TRIM4#
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-48030i200705-201007
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
main73910-48070i201007-201302
main73910-48071i201302
8202
8421
827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B660
9011910772
main90119-10772
9016740044
main90167-40044
9016850078
main90168-50078
9017906178
main90179-06178
9017908057
main90179-08057
9417060600
main94170-60600
9418560600
main94185-60600

40 parts on this diagram · 11 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
