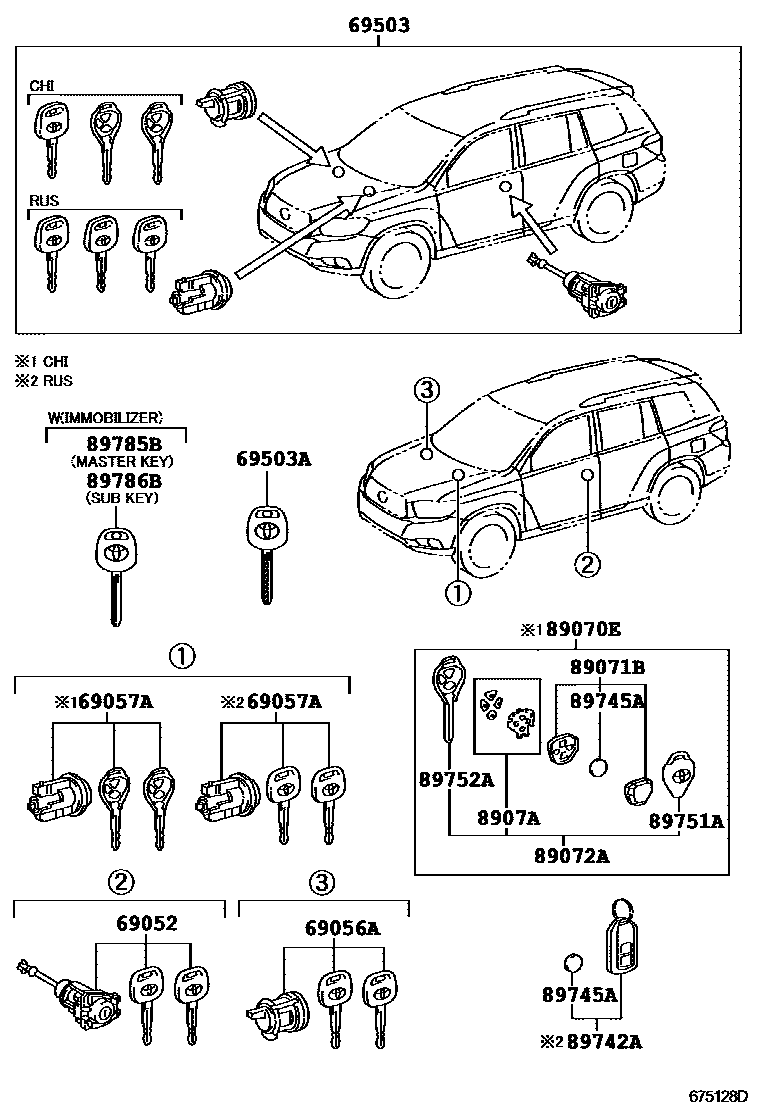

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
69503AKEY, BLANK
MASTER KEY,W(*68)
MASTER KEY,W(*68)
SUB KEY,W(*68)
89070ETRANSMITTER ASSY, DOOR CONTROL
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
8907ASWITCH SET, TRANSMITTER
89742ATRANSMITTER, DOOR CONTROL
89745ABATTERY, TRANSMITTER
89751ACOVER, TRANSMITTER HOUSING
89752ACASE, TRANSMITTER HOUSING
89785BTRANSMITTER, TRANSPONDER KEY MASTER
BLANK KEY
BLANK KEY
89786BTRANSMITTER, TRANSPONDER KEY SUB
BLANK KEY,ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)
BLANK KEY
BLANK KEY
15 parts on this diagram · 4 diagrams in section
