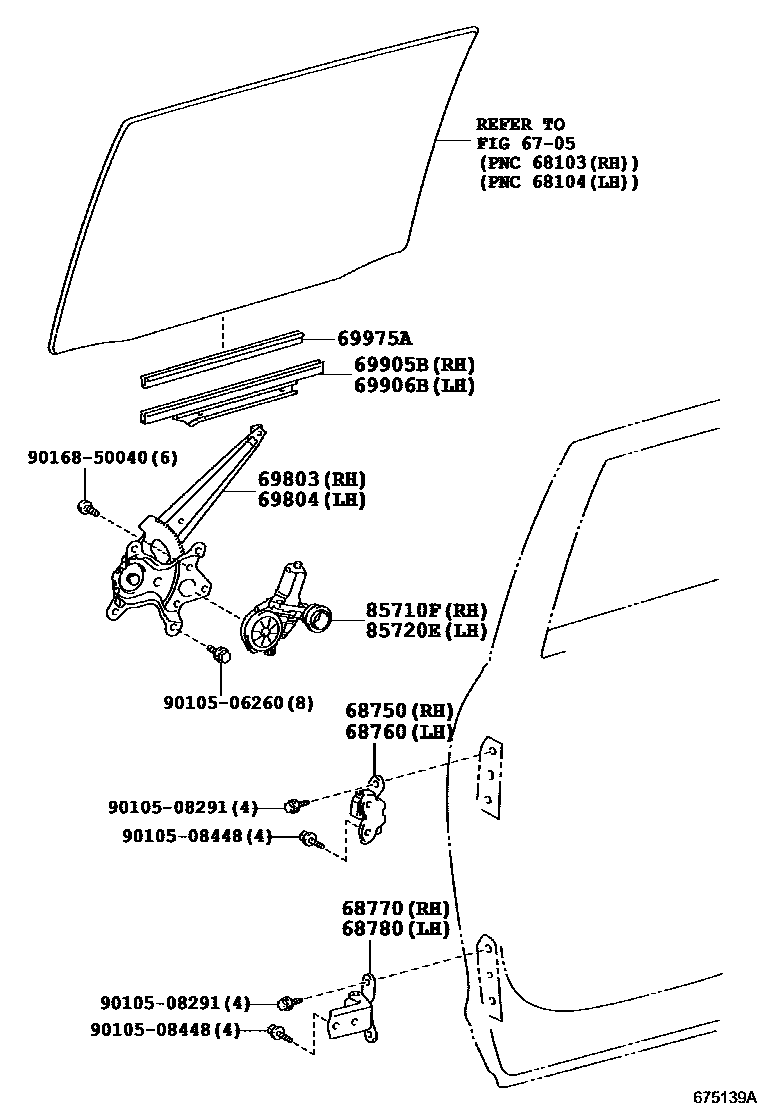

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iGSU4#..CHI200705-200901

main68750-20122iGSU4#201207

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iGSU4#..CHI200705-200901

main68760-20122iGSU4#201207

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iGSU4#..CHI200705-200901

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iGSU4#..CHI200705-200901

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-42040iGSU4#..CHI200705-200901

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-42040iGSU4#..CHI200705-200901

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-60060iGSU4#200705-201007

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-60050iGSU4#200705-201007

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-60060×2iGSU4#200705-201007

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-35140iGSU4#..CHI200705-200901

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-35180iGSU4#..CHI200705-200901

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
