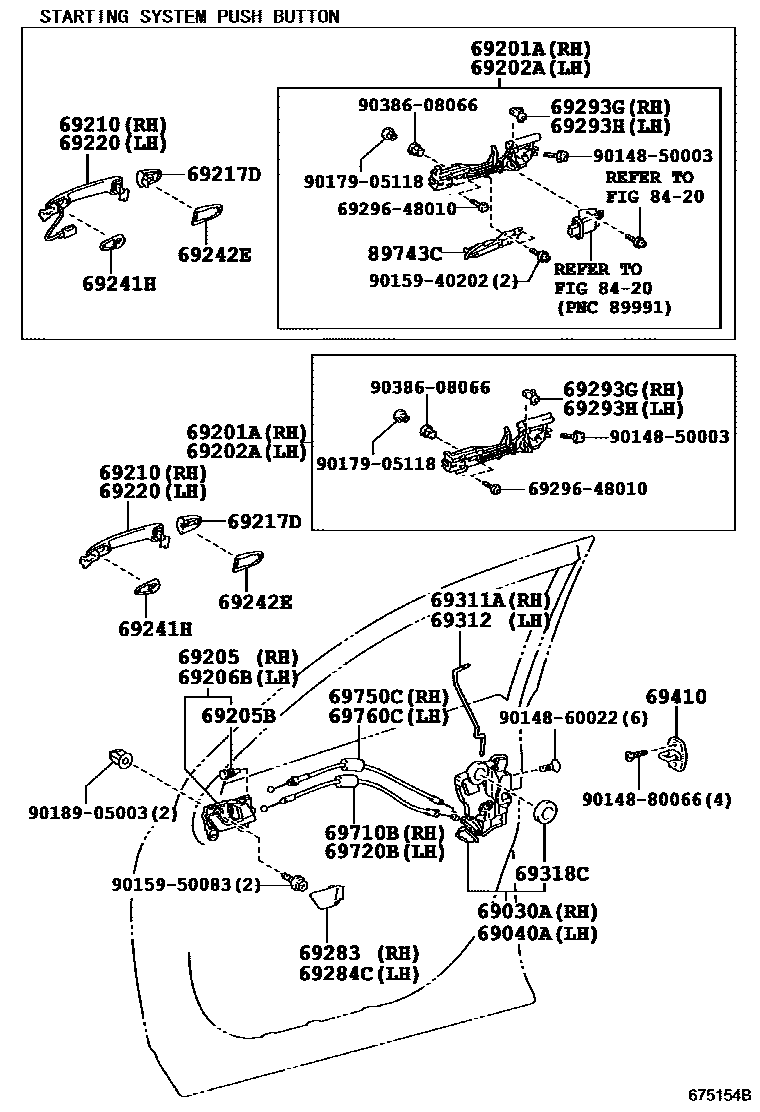

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM1#,2#,4#
DK. BROWN,TRIM4#
BLACK,TRIM1#,2#
DK. BROWN,TRIM4#
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM1#; BLACK,TRIM1#,2#
DK. BROWN,TRIM4#
BLACK,TRIM1#,2#,4#
DK. BROWN,TRIM4#
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BLACKISH RED MC.,3R0
DK. RED M.M.,3Q3
BEIGE ME.,4T8
OLIVE M.M.,6T7
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
BLUE ME.,8T7
AMETHIST GRAY M.M.,9AG
GRAYISH BLUE M.M.,8V5
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
DK.BLUE MC.,8S6
BLUE ME.,8T7
GRAYISH BLUE M.M.,8V5
WHITE PEARL CS.,070
BLACK,202
DK. RED M.M.,3Q3
OLIVE M.M.,6T7
AMETHIST GRAY M.M.,9AG
BEIGE ME.,4T8
SILVER ME.,1F7
GRAY ME.,1G3
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
BLUE ME.,8T7
GRAYISH BLUE M.M.,8V5
BLACKISH RED MC.,3R0
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
WHITE PEARL CS.,070,DRIVER SIDE
BLACK,202,DRIVER SIDE
DK. RED M.M.,3Q3,DRIVER SIDE
OLIVE M.M.,6T7,DRIVER SIDE
AMETHIST GRAY M.M.,9AG,DRIVER SIDE
BEIGE ME.,4T8,DRIVER SIDE
SILVER ME.,1F7,DRIVER SIDE
GRAY ME.,1G3,DRIVER SIDE
DK.BLUE MC.,8S6,DRIVER SIDE
LT.BLUE M.M.,8S7,DRIVER SIDE
BLUE ME.,8T7,DRIVER SIDE
GRAYISH BLUE M.M.,8V5,DRIVER SIDE
BLACKISH RED MC.,3R0,DRIVER SIDE
WHITE PEARL CS.,070,PASSENGER SIDE
BLACK,202,PASSENGER SIDE
DK. RED M.M.,3Q3,PASSENGER SIDE
OLIVE M.M.,6T7,PASSENGER SIDE
AMETHIST GRAY M.M.,9AG,PASSENGER SIDE
BEIGE ME.,4T8,PASSENGER SIDE
SILVER ME.,1F7,PASSENGER SIDE
GRAY ME.,1G3,PASSENGER SIDE
DK.BLUE MC.,8S6,PASSENGER SIDE
LT.BLUE M.M.,8S7,PASSENGER SIDE
BLUE ME.,8T7,PASSENGER SIDE
GRAYISH BLUE M.M.,8V5,PASSENGER SIDE
BLACKISH RED MC.,3R0,PASSENGER SIDE
WHITE PEARL CS.,070,DRIVER SIDE
SILVER ME.,1F7,DRIVER SIDE
GRAY ME.,1G3,DRIVER SIDE
BLACK,202,DRIVER SIDE
BLACKISH RED MC.,3R0,DRIVER SIDE
DK. RED M.M.,3Q3,DRIVER SIDE
BEIGE ME.,4T8,DRIVER SIDE
OLIVE M.M.,6T7,DRIVER SIDE
DK.BLUE MC.,8S6,DRIVER SIDE
LT.BLUE ME.,8S7,DRIVER SIDE
AMETHIST GRAY M.M.,9AG,DRIVER SIDE
BLUE ME.,8T7,DRIVER SIDE
GRAYISH BLUE M.M.,8V5,DRIVER SIDE
WHITE PEARL CS.,070,PASSENGER SIDE
SILVER ME.,1F7,PASSENGER SIDE
GRAY ME.,1G3,PASSENGER SIDE
BLACK,202,PASSENGER SIDE
BLACKISH RED MC.,3R0,PASSENGER SIDE
DK. RED M.M.,3Q3,PASSENGER SIDE
BEIGE ME.,4T8,PASSENGER SIDE
OLIVE M.M.,6T7,PASSENGER SIDE
DK.BLUE MC.,8S6,PASSENGER SIDE
LT.BLUE ME.,8S7,PASSENGER SIDE
BLUE ME.,8T7,PASSENGER SIDE
AMETHIST GRAY M.M.,9AG,PASSENGER SIDE
GRAYISH BLUE M.M.,8V5,PASSENGER SIDE
WHITE PEARL CS.,070,DRIVER SIDE
SILVER ME.,1F7,DRIVER SIDE
GRAY ME.,1G3,DRIVER SIDE
BLACK,202,DRIVER SIDE
BLACKISH RED MC.,3R0,DRIVER SIDE
BEIGE ME.,4T8,DRIVER SIDE
DK.BLUE MC.,8S6,DRIVER SIDE
BLUE ME.,8T7,DRIVER SIDE
GRAYISH BLUE M.M.,8V5,DRIVER SIDE
WHITE PEARL CS.,070,PASSENGER SIDE
SILVER ME.,1F7,PASSENGER SIDE
GRAY ME.,1G3,PASSENGER SIDE
BLACK,202,PASSENGER SIDE
BLACKISH RED MC.,3R0,PASSENGER SIDE
BEIGE ME.,4T8,PASSENGER SIDE
DK.BLUE MC.,8S6,PASSENGER SIDE
BLUE ME.,8T7,PASSENGER SIDE
GRAYISH BLUE M.M.,8V5,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BLACKISH RED MC.,3R0
DK. RED M.M.,3Q3
BEIGE ME.,4T8
OLIVE M.M.,6T7
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
BLUE ME.,8T7
AMETHIST GRAY M.M.,9AG
GRAYISH BLUE M.M.,8V5
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
DK.BLUE MC.,8S6
BLUE ME.,8T7
GRAYISH BLUE M.M.,8V5
WHITE PEARL CS.,070
BLACK,202
DK. RED M.M.,3Q3
OLIVE M.M.,6T7
AMETHIST GRAY M.M.,9AG
BEIGE ME.,4T8
SILVER ME.,1F7
GRAY ME.,1G3
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
BLUE ME.,8T7
GRAYISH BLUE M.M.,8V5
BLACKISH RED MC.,3R0
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420WIRELESS DOOR LOCK
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
LH
RH
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9015950083
main90159-50083
9017905118
main90179-05118
9018905003
main90189-05003
9038608066
main90386-08066
35 parts on this diagram · 1 diagram in section
