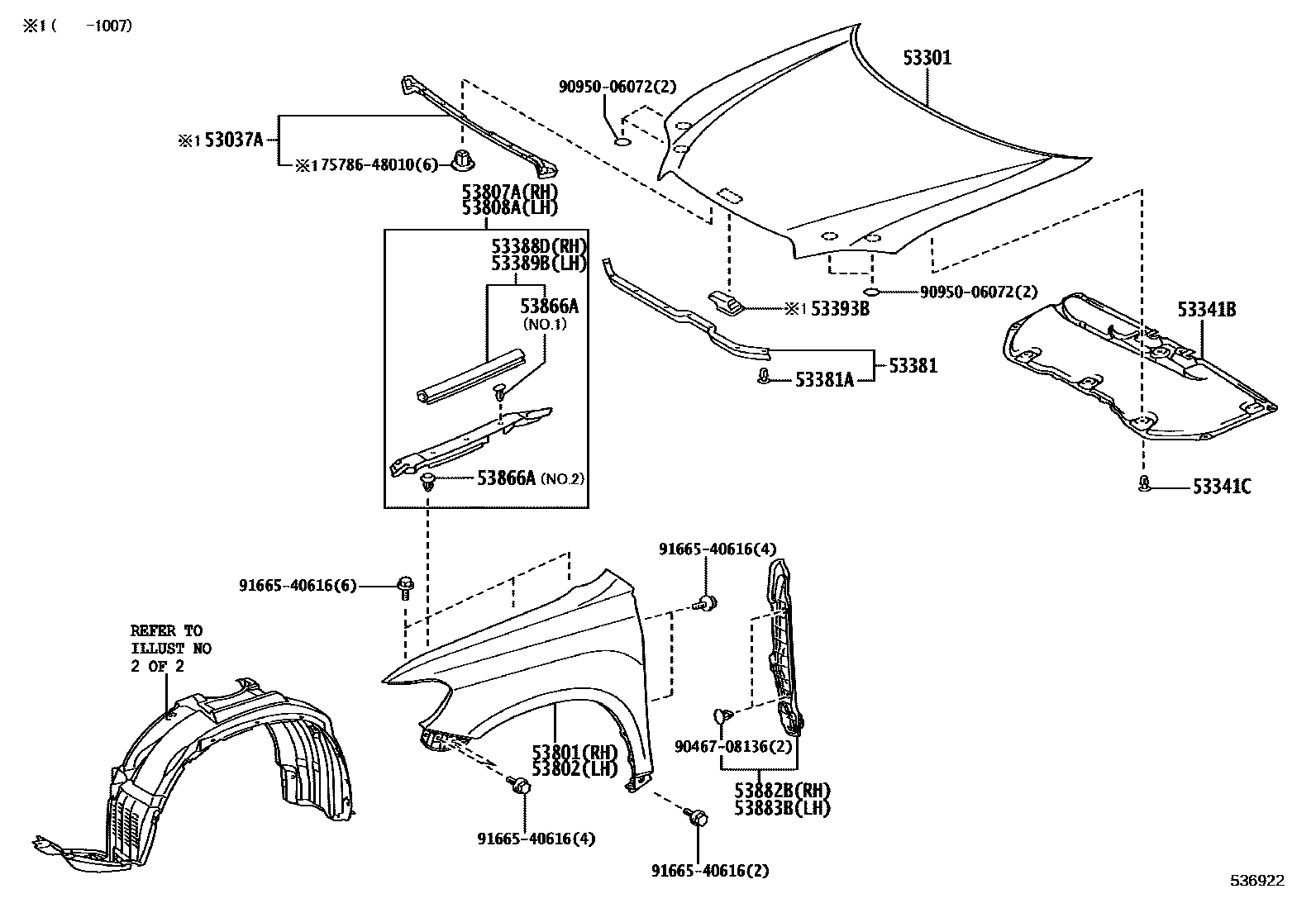

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53037ASEAL SUB-ASSY, RADIATOR

main53037-48010iGSU4#..ARL200705-201007

53301HOOD SUB-ASSY

main53301-48110iGSU4#200705-201007

sub53301-48120

main53301-48150iGSU4#201007-201312

sub53301-48160

53341BINSULATOR, HOOD

main53341-48070iGSU4#..CHI200705-200901

main53341-48071iGSU4#201002-201007

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×8iGSU4#..CHI200705-200901

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-48060iGSU4#..CHI200705-200901

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iGSU4#..ARL200705-201007

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-48030iGSU4#..CHI200705-200901

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-48030iGSU4#..CHI200705-200901

53393BPROTECTOR, HOOD, FRONT

main53393-48040iGSU4#..CHI200705-200901

53801FENDER SUB-ASSY, FRONT RH

main53801-48030iGSU4#201007

main53811-48120iGSU45;GSU40..ARL200705-201007

main53811-48140iGSU40..CHI200705-200901

53802FENDER SUB-ASSY, FRONT LH

main53802-48090iGSU4#201007

main53812-48120iGSU4#200705-201007

53807ASHIELD SUB-ASSY, FENDER SPLASH, REAR RH

main53807-48010iGSU4#..CHI200705-200901

main53807-48040iGSU4#201007

53808ASHIELD SUB-ASSY, FENDER SPLASH, REAR LH

main53808-48010iGSU4#..CHI200705-200901

main53808-48040iGSU4#201007-201106

main53808-48041iGSU4#201107

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main90467-08108×6iGSU4#..CHI200705-200901

NO.1:REFER ILLUST.

main90467-10161×6iGSU4#..CHI200705-200901

NO.2:REFER ILLUST.

53882BSEAL, FRONT FENDER, RH

main53882-48030iGSU4#..CHI200705-200901

53883BSEAL, FRONT FENDER, LH

main53883-48030iGSU4#..CHI200705-200901

7578648010MOULDING, QUARTER WINDOW, FRONT LH

main75786-48010

9046708136

main90467-08136

9095006072

main90950-06072

9166540616

main91665-40616

20 parts on this diagram · 2 diagrams in section
