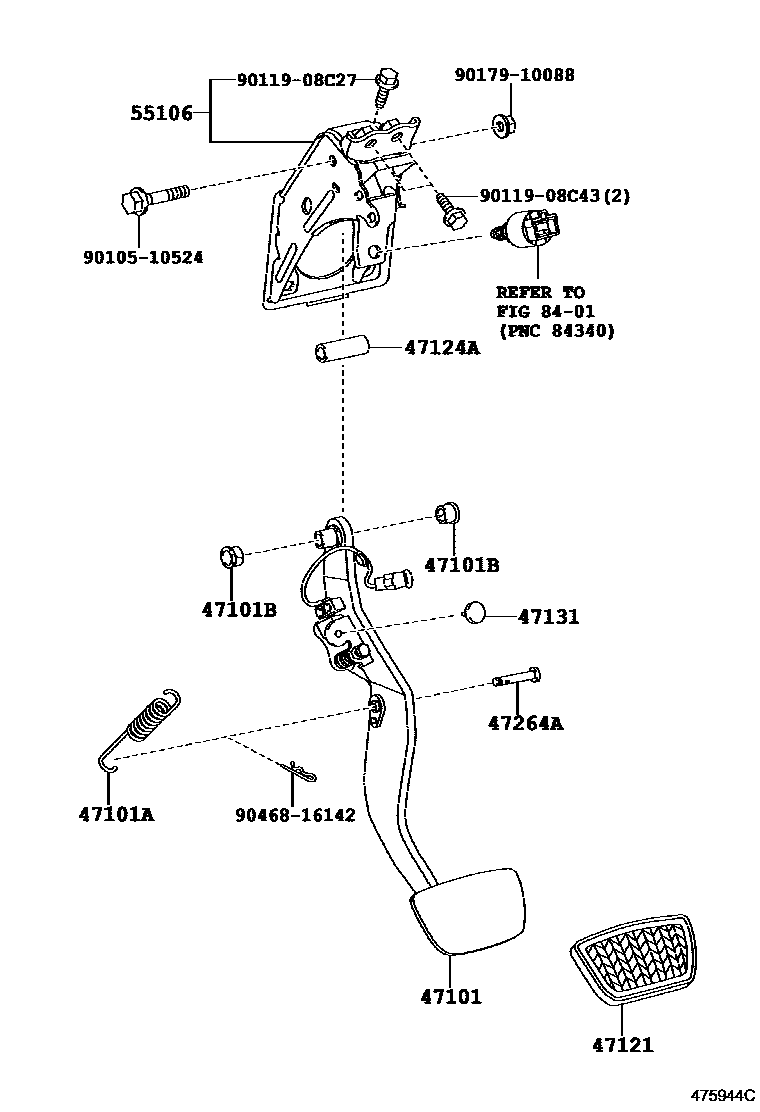

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47106-48060iGSU4#..CHI200705-200901

main47106-48070iGSU4#..ARL200705-201007

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15004iGSU4#201007

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iGSU4#..CHI200705-200901

47121PAD, BRAKE PEDAL

main47121-50020iGSU4#..CHI200705-200901

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iGSU4#..ARL200705-201007

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iGSU4#..CHI200705-200901

47264APIN(FOR PUSH ROD)

main47148-48010iGSU45..RUS201209-201312

main90249-06180iGSU4#..ARL200705-201007

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-48160iGSU4#..CHI200705-200901

main55106-48170iGSU4#..ARL201007

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510524

main90105-10524

9011908C27

main90119-08C27

9011908C43

main90119-08C43

9017910088

main90179-10088

9046816142

main90468-16142

14 parts on this diagram · 2 diagrams in section
