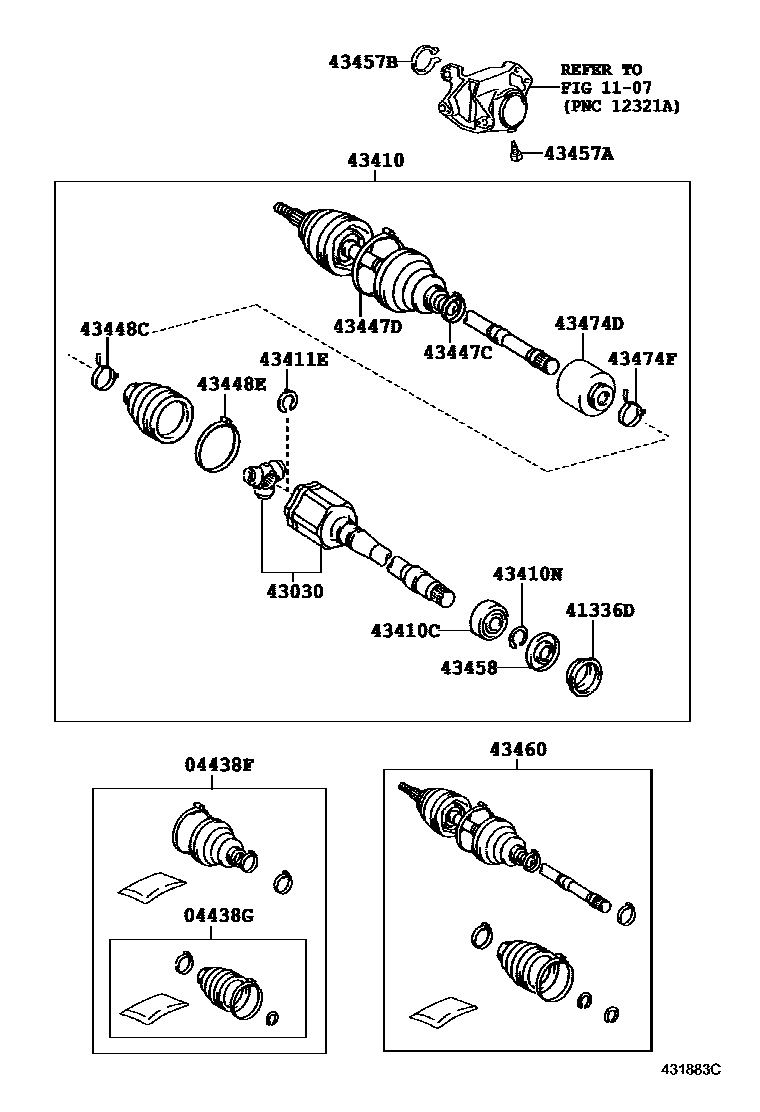

FRONT DRIVE SHAFT

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0W050i200705-201004

main04427-0W060i200705-201007

main04428-0W050i201004-201007

sub04428-0W070

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-06110i200705-200808

main04437-0W060i201007-201312

main04438-08130i201007-201312

1107

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020i201007

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-0W040i200705-200901

main43030-0W050i200705-201007

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0W190i200705-201007

sub43410-0W240

main43410-0W210i200705-201007

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36133i201007

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-08060i200705-200901

main90080-52013i200705-200901

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-02010i201007

main43425-08040i201007

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030i201007

main42345-06090i200705-201007

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06040i201007

main42345-06250i200705-201007

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-05100i200705-200901

main42345-08070i201007

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02040i201007

main42345-06240i201007

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461i200705-201007

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002i200705-201007

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020i200705-200901

main43458-08010i200705-201007

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-09V20i200705-200901

main43470-09V50i200705-200901

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0W030i200705-200901

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06100i200705-200901

19 parts on this diagram · 3 diagrams in section
