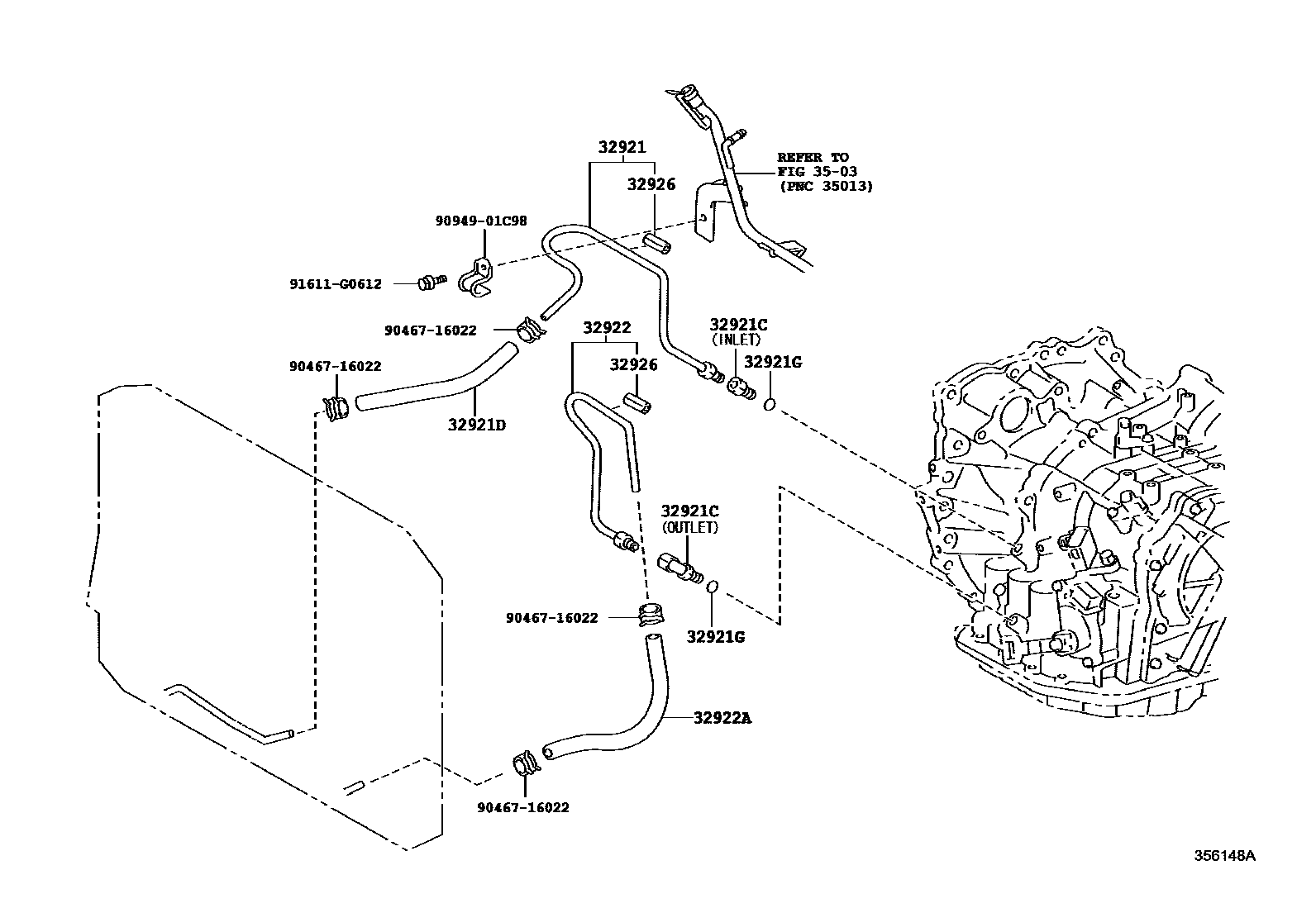

OIL COOLER & TUBE (ATM)

0001 1U151E,U151F 0002 1U151E,U151F

32921TUBE, OIL COOLER INLET, NO.1

main32921-48150iGSU4#..ARL200705-201007

32921CUNION(FOR OIL COOLER TUBE)

main90404-16031iGSU4#..CHI200705-201007

INLET

main90407-16010iGSU4#..CHI200705-201007

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32943-48110iGSU4#..CHI200705-201007

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iGSU4#..ARL200705-201007

(J)

main90301-10189iGSU4#201007

main90301-A0016iGSU4#..ARL200801-201007

(L)

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-48120iGSU4#..CHI200705-201007

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17174iGSU4#..CHI200705-201007

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-26010iGSU4#..CHI200705-201012

L=60,ID=10

main32926-30020iGSU4#201101

L=35,ID=10

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

9046716022

main90467-16022

9094901C98

main90949-01C98

91611G0612

main91611-G0612

11 parts on this diagram · 2 diagrams in section
