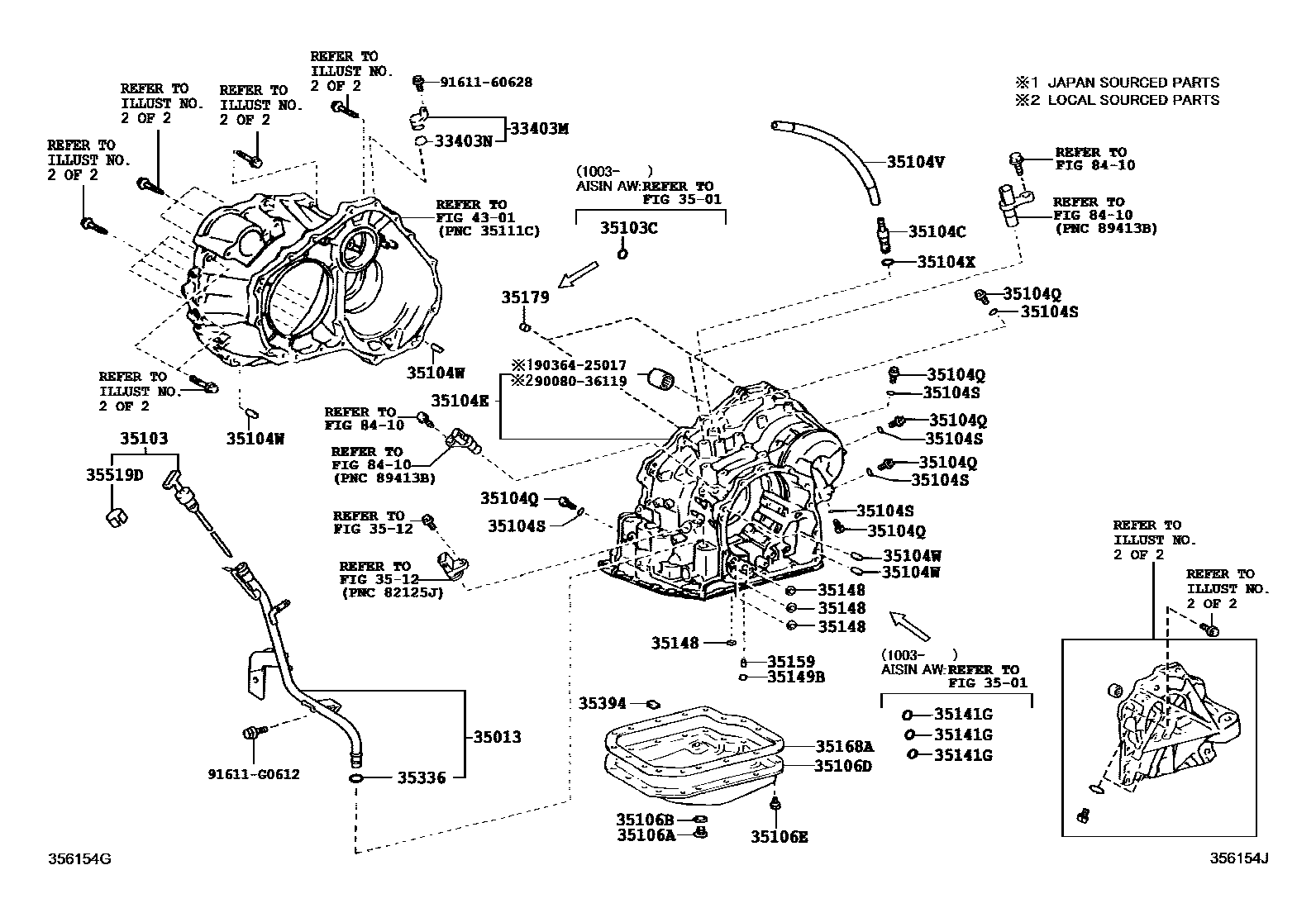

TRANSMISSION CASE & OIL PAN (ATM)
33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
3501TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35104CPLUG, BREATHER, NO.2 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35104VHOSE (FOR BREATHER PLUG)
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
TOYOTA:REFER 35-01
35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)
AISIN AW:REFER 35-01
TOYOTA:REFER 35-01
TOYOTA:REFER 35-01
35104XRING, O (FOR BREATHER PLUG)
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
(L)
(J)
35106EBOLT (FOR TRANSAXLE OIL PAN)
(L)
(J)
3512VALVE BODY & OIL STRAINER (ATM)
35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)
AISIN AW:REFER 35-01
35148GASKET, GOVERNOR APPLY, NO.1
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35149BGASKET, TRANSAXLE CASE 2ND BRAKE
(L)
(J)
35159GASKET, BRAKE DRUM
(L)
(J)
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
AISIN AW:REFER 35-01
TOYOTA:REFER 35-01
35179GASKET, OVERDRIVE BRAKE
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
(L)TOYOTA:REFER35-01
(J)TOYOTA:REFER35-01
AISIN AW:REFER 35-01
35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION
4301FRONT AXLE HOUSING & DIFFERENTIAL
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9008036119
main90080-36119
9036425017
main90364-25017
9161160628
main91611-60628
91611G0612
main91611-G0612
33 parts on this diagram · 3 diagrams in section
