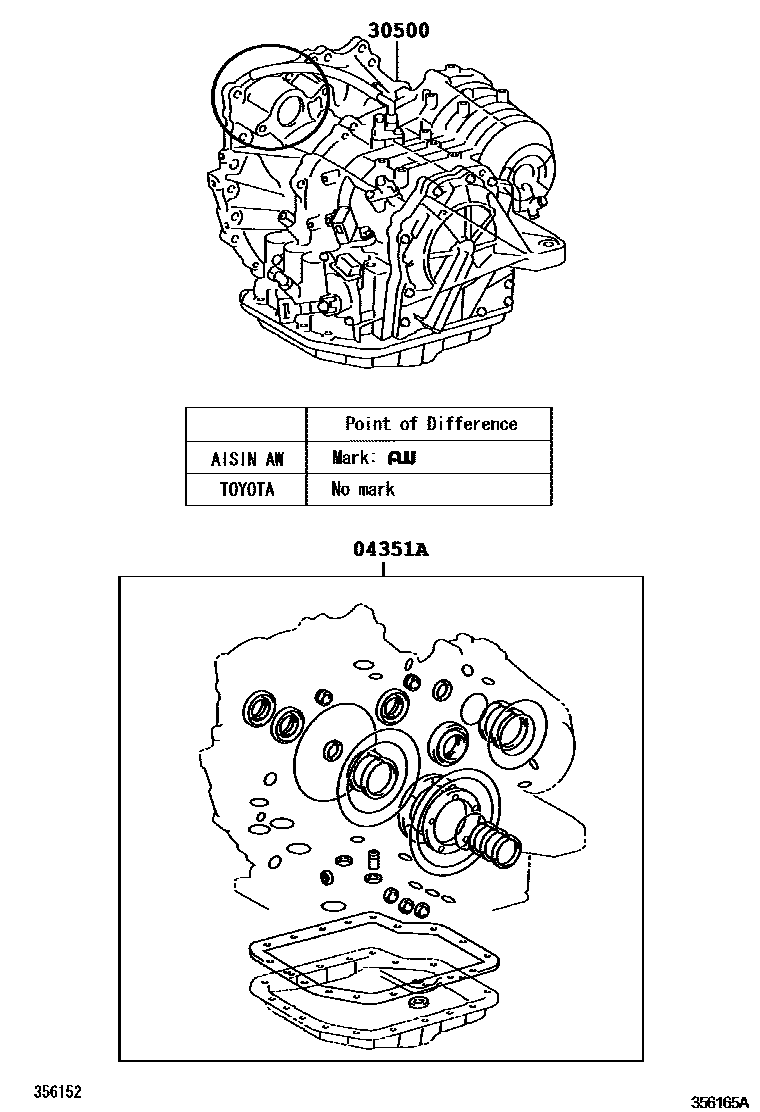

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-48090iGSU40201007-201212

main04351-48090iGSU40..CHI200705-201007

AISIN AW:REF.ILLUST

main04351-48091iGSU40201212

main04351-48100iGSU45..ARL200705-201007

AISIN AW:REF.ILLUST

main04351-48100iGSU45201007-201106

main04351-48101iGSU45201106

main04351-48160iGSU40..ARL200801-201007

TOYOTA:REFER TO ILL.

main04351-48170iGSU45..ARL200801-201007

TOYOTA:REFER TO ILL.

30500TRANSAXLE ASSY, AUTOMATIC

main30500-48250iGSU40201007

U151E

main30500-48250iGSU40..CHI200705-201007

U151E,AISIN AW:REF.ILLUST

main30500-48260iGSU45201007

U151F

main30500-48260iGSU45..CHI200705-201007

U151F,AISIN AW:REF.ILLUST

main30500-48310iGSU40..ARL200801-201007

U151E,TOYOTA:REFER TO ILL.

main30500-48320iGSU45..ARL200801-201007

U151F,TOYOTA:REFER TO ILL.

2 parts on this diagram · 1 diagram in section
