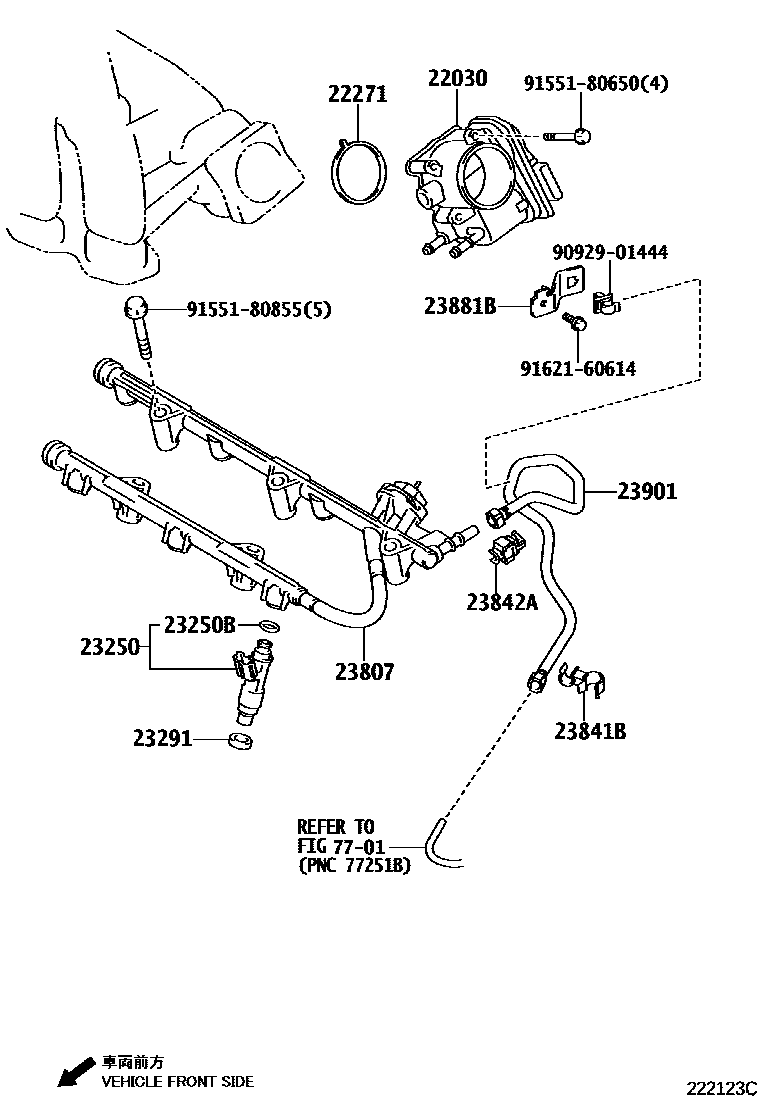

FUEL INJECTION SYSTEM

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31030i2GRFE..GSU4#..CHI200705-200901

22271GASKET, THROTTLE BODY

main22271-31040i2GRFE..GSU4#..CHI200705-200901

23250INJECTOR ASSY, FUEL

main23209-31050×6i2GRFE..GSU4#..CHI200705-200901

main23209-31090×6i2GRFE..GSU4#201007

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i2GRFE..GSU4#..CHI200705-200901

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i2GRFE..GSU4#..CHI200705-200901

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31090i2GRFE..GSU4#..CHI200705-200901

main23870-31010i2GRFE..GSU4#201007

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2GRFE..GSU4#200705-201007

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31040i2GRFE..GSU4#..CHI200705-200901

23881BBRACKET, FUEL HOSE

main23881-31020i2GRFE..GSU4#..CHI200705-200901

23901TUBE SUB-ASSY, FUEL

main23901-31180i2GRFE..GSU4#200705-201007

7701

9092901444

main90929-01444

9155180650

main91551-80650

9155180855

main91551-80855

9162160614

main91621-60614

15 parts on this diagram · 1 diagram in section
