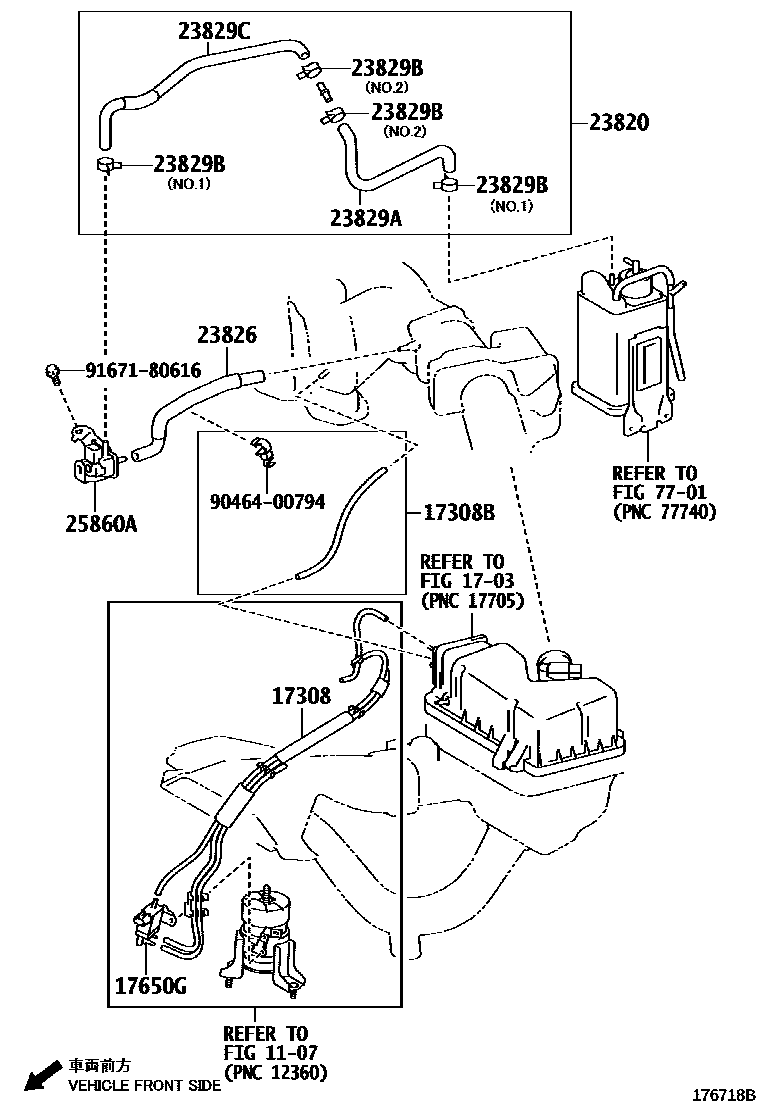

VACUUM PIPING

1107MOUNTING

→ Go to FIG 11-07

1703AIR CLEANER

→ Go to FIG 17-03

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-31040200705-201007

17308BHOSE SUB-ASSY, VACUUM

main17308-31020200705-201007

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12204200705-201007

23820HOSE ASSY, FUEL VAPOR FEED

main23820-31140200705-201312

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31110200705-201007

23829AHOSE, FUEL VAPOR FEED

main23829-31050200705-201312

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-11003200705-201312

main96132-51100200705-201312

23829CHOSE, FUEL VAPOR FEED, NO.2

main23829-31070200705-201007

25860AVALVE, VACUUM SWITCHING, NO.1

main25860-31070200705-201007

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9046400794

main90464-00794

9167180616

main91671-80616

14 parts on this diagram · 1 diagram in section
