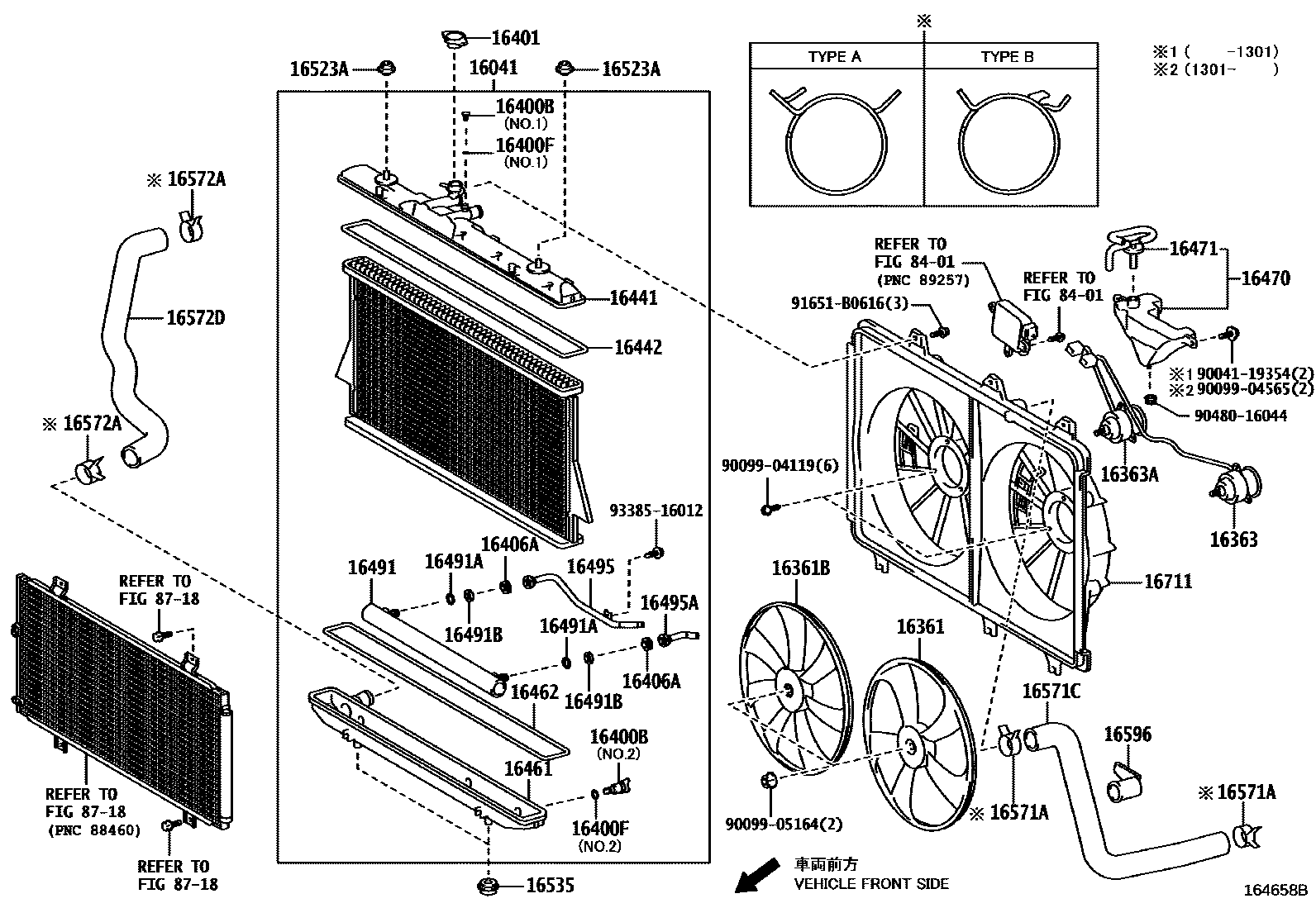

RADIATOR & WATER OUTLET
16041RADIATOR ASSY, NO.2
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
sub16363-31450
16400BPLUG, RADIATOR DRAIN COCK
NO.1
NO.2
16400FPACKING(FOR RADIATOR DRAIN COCK)
NO.1
NO.2
16406ASUPPORT(FOR OIL COOLER)
16441TANK, RADIATOR, UPPER
16442RING, O(FOR RADIATOR UPPER TANK)
16461TANK, RADIATOR, LOWER
16462RING, O(FOR RADIATOR LOWER TANK)
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16491COOLER, OIL(FOR ATM)
16491ARING, O(FOR ATM OIL COOLER)
16491BWASHER, PLATE(FOR ATM OIL COOLER)
16495NUT, FLARE(FOR ATM OIL COOLER)
16495ANUT, FLARE, NO.2(FOR ATM OIL COOLER)
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
16571CHOSE, RADIATOR, NO.1
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
16572DHOSE, RADIATOR, NO.2
16596STAY, RADIATOR PIPE
16711SHROUD, FAN
8401
8718
9004119354
main90041-19354
9009904119
main90099-04119
9009904565
main90099-04565
9009905164
main90099-05164
9048016044
main90480-16044
91651B0616
main91651-B0616
9338516012
main93385-16012
37 parts on this diagram · 2 diagrams in section
