ENGINE OIL COOLER

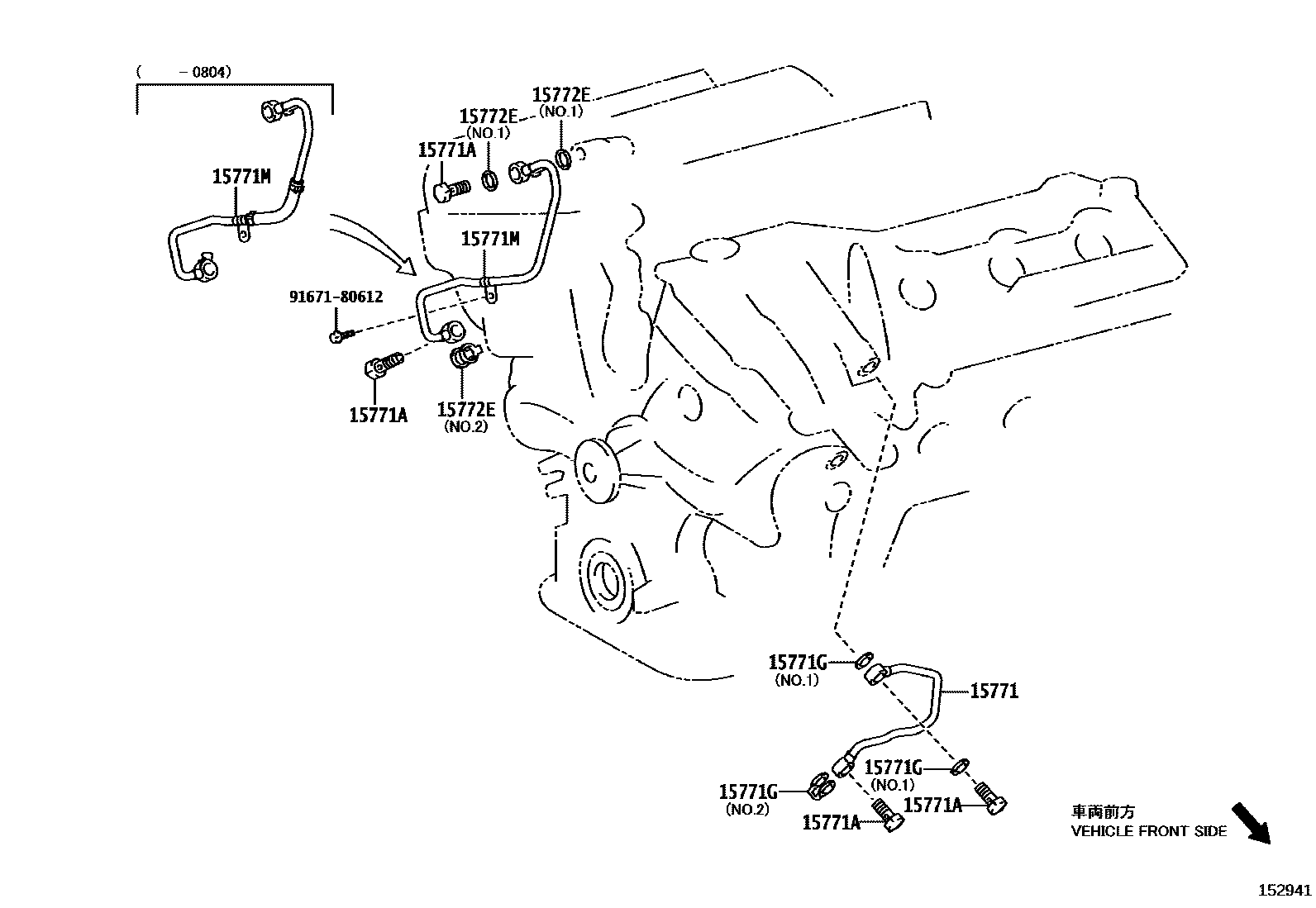

Parts diagram
15771PIPE, OIL, NO.1
main15771-31010i200705-201007
15771AUNION(FOR OIL PIPE)
main90401-16043×4i200705-201007
15771GGASKET
main90430-16012×2i200705-200803
NO.1
main90430-16016i200705-200901
NO.2
main90430-16017×2i200803-200901
NO.1
15771MPIPE, OIL
main15707-31012i200705-200804
sub15707-31030
main15772-31030i200804-200901
15772EGASKET(FOR OIL PIPE)
main90430-16012×2i200705-200803
NO.1
main90430-16016i200705-200901
NO.2
main90430-16017×2i200803-201007
NO.1
9167180612
main91671-80612

6 parts on this diagram · 2 diagrams in section
