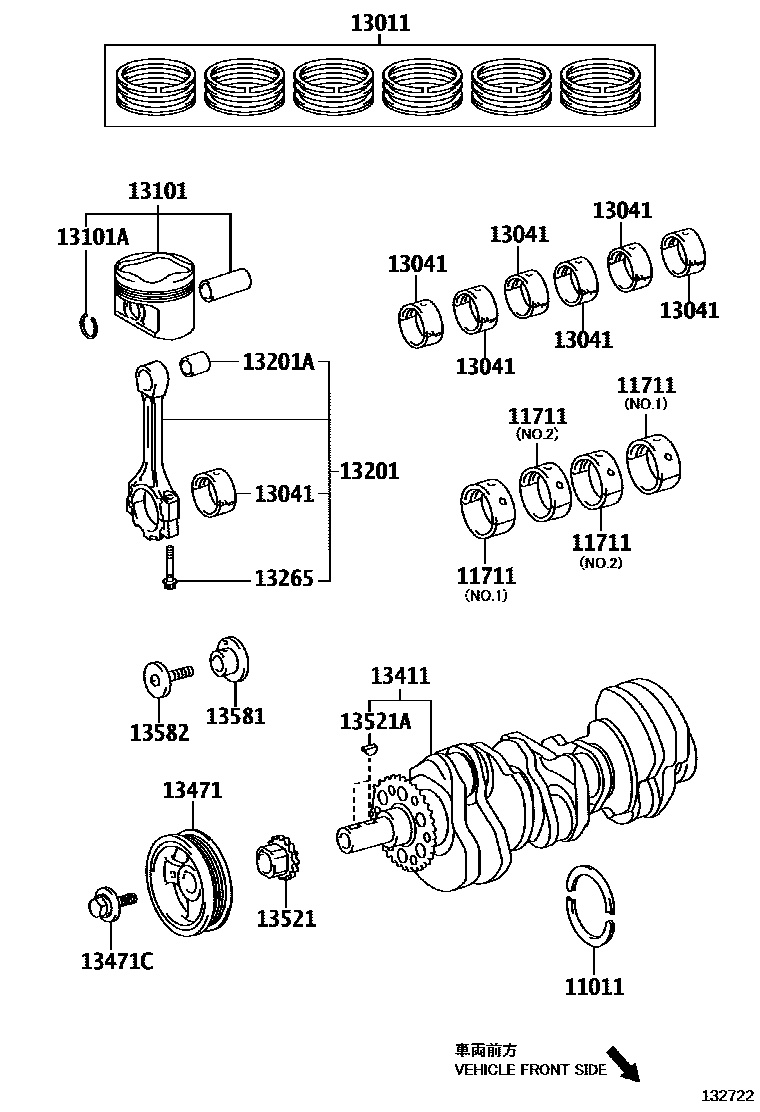

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,(L)
STD,(J)
11711BEARING, CRANKSHAFT
MARK1,NO.2,(L):REFER R/M
MARK2,NO.2,(L):REFER R/M
MARK3,NO.2,(L):REFER R/M
MARK4,NO.2,(L):REFER R/M
MARK5,NO.2,(L):REFER R/M
MARK1,NO.2,REFER R/M
MARK2,NO.2,REFER R/M
MARK3,NO.2,(J):REFER R/M
MARK4,NO.2,REFER R/M
MARK5,NO.2,(J):REFER R/M
MARK1,NO.1,(L):REFER R/M
MARK2,NO.1,(L):REFER R/M
MARK3,NO.1,(L):REFER R/M
MARK4,NO.1,(L):REFER R/M
MARK5,NO.1,(L):REFER R/M
MARK1,NO.1,(J):REFER R/M
MARK2,NO.1,(J):REFER R/M
MARK3,NO.1,(J):REFER R/M
MARK4,NO.1,(J):REFER R/M
MARK5,NO.1,(J):REFER R/M
MARK 1,NO.1,(J):REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,(J):REFER R/M
MARK 5,NO.1,(J):REFER R/M
13011RING SET, PISTON
STD
STD
13041BEARING, CONNECTING ROD
MARK1,(L):REFER R/M
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK4,(L):REFER R/M
MARK1,REFER R/M
MARK2,REFER R/M
MARK3,(J):REFER R/M
MARK4,(J):REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A
MARK B
MARK C
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13581SHAFT, IDLE GEAR, NO.1
13582SHAFT, IDLE GEAR, NO.2
16 parts on this diagram · 2 diagrams in section
