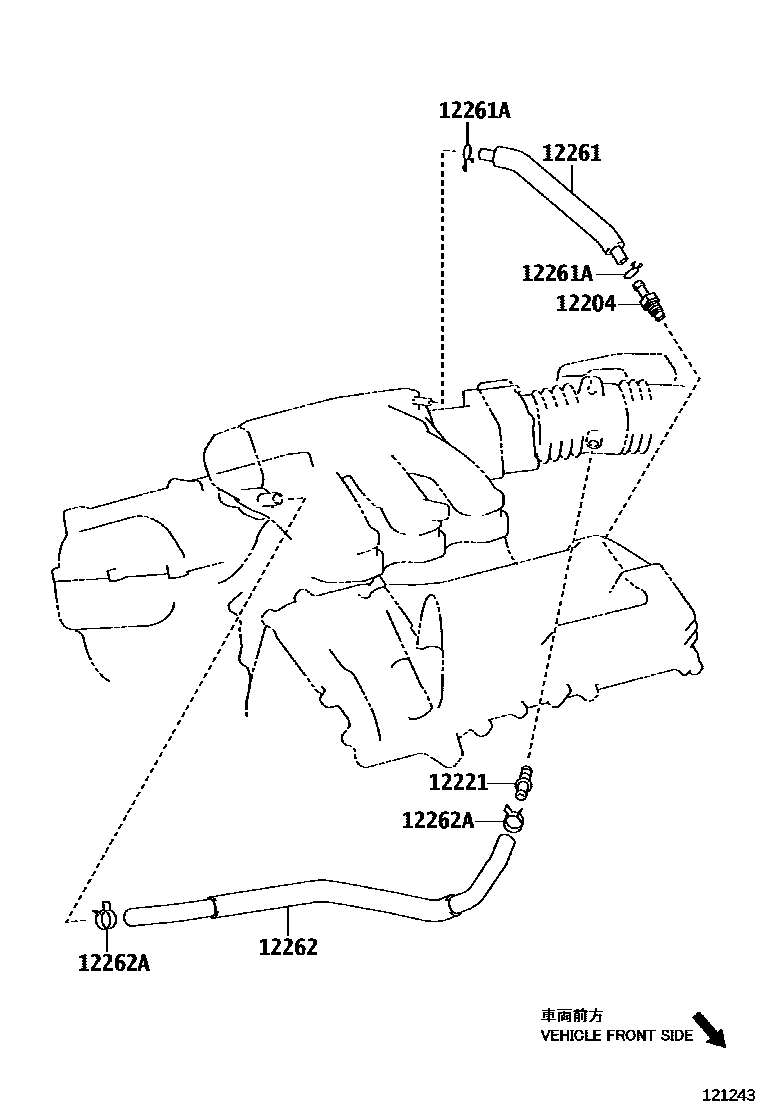

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-31040i2GRFE..GSU4#..ARL200705-200812

main12204-31120i2GRFE..GSU4#..ARL200812-201007

12221TUBE, VENTILATION NO.1

main17878-31010i2GRFE..GSU4#..CHI200705-200901

12261HOSE, VENTILATION

main12261-31050i2GRFE..GSU4#..CHI200705-200901

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017×2i2GRFE..GSU4#..CHI200705-200901

12262HOSE, VENTILATION, NO.2

main12262-31080i2GRFE..GSU4#..CHI200705-200901

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004×2i2GRFE..GSU4#..CHI200705-200901

6 parts on this diagram · 1 diagram in section
