ENGINE OVERHAUL GASKET KIT

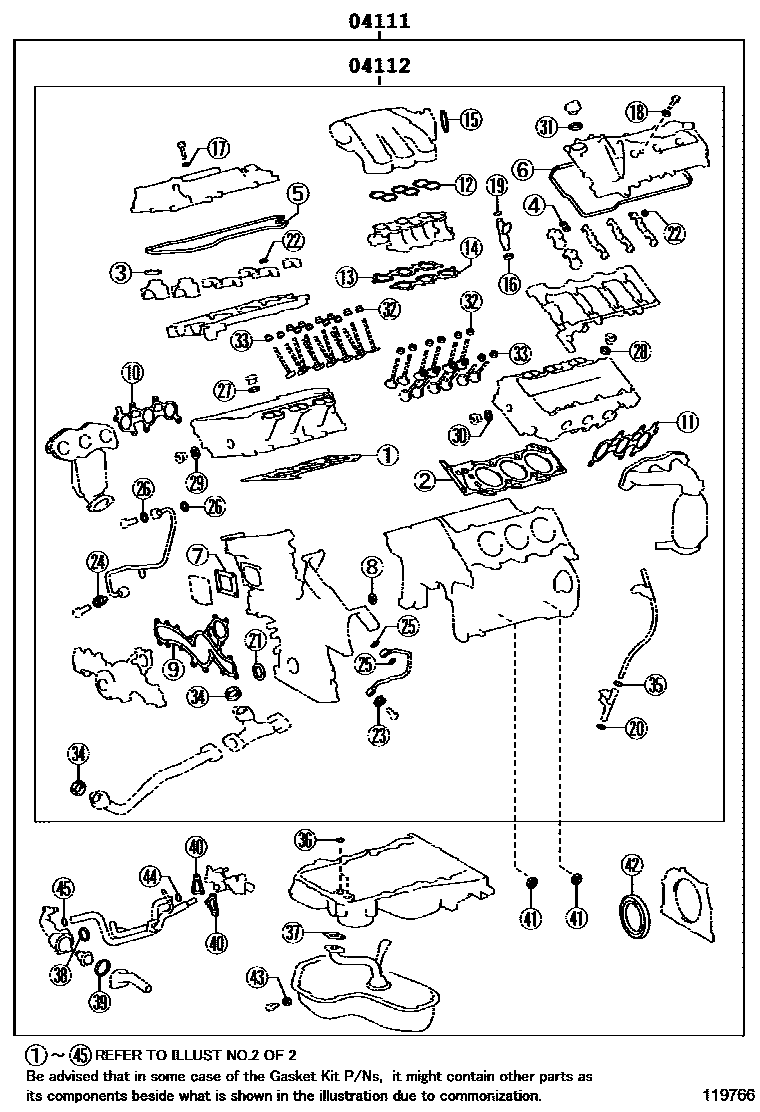

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-31440i200705-200805
main04111-31441i200805-200811
main04111-31442i200811-200901
sub04111-31443
main04111-31680i200705-200805
main04111-31681i200805-200811
main04111-31682i200811-201007
sub04111-31683
main04111-31870i201007-201108
main04111-31871i201108-201112
main04111-31872i201112
sub04111-31873
04112GASKET KIT, ENGINE VALVE GRIND
main04112-31270i200705-200805
main04112-31271i200805-200811
main04112-31272i200811-200901
sub04112-31273
sub04112-31760
main04112-31540i201007-201108
sub04112-31541
main04112-31750i201108-201111
main04112-31751i201111
sub04112-31741

2 parts on this diagram · 8 diagrams in section
