HORN

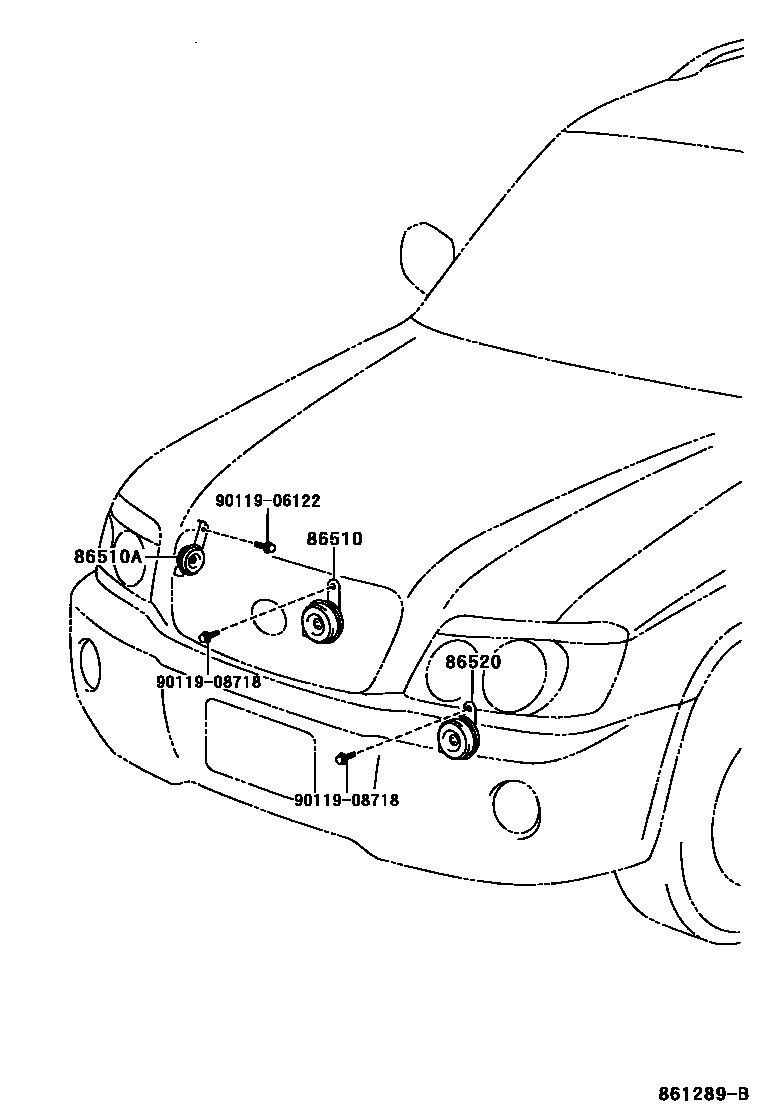

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-48070i200308

86510AHORN ASSY, SECURITY

main86510-48060i200308

86520HORN ASSY, LOW PITCHED

main86520-47010i200308

9011906122

main90119-06122

9011908718

main90119-08718

5 parts on this diagram · 1 diagram in section
