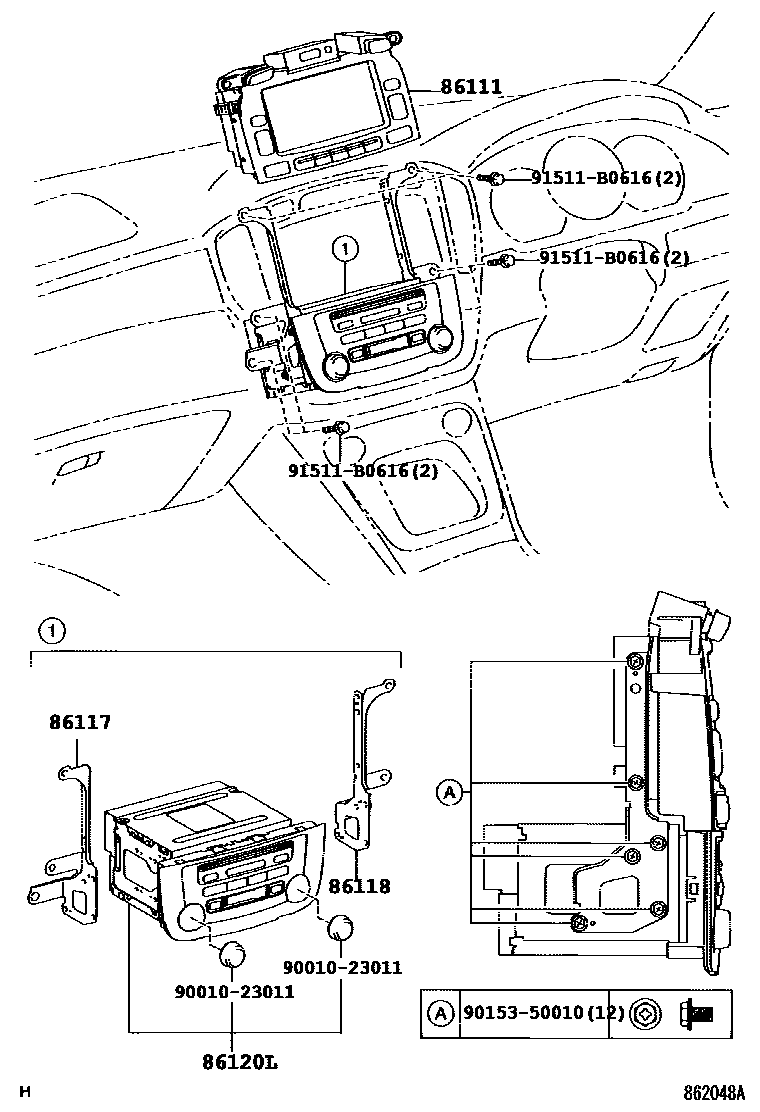

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86111MULTI-DISPLAY

main86111-48070iMCU28..7S200308-200705

DENSO

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-48050iMCU28..7S200308

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-48040iMCU28..7S200308

86120LRECEIVER ASSY, NAVIGATION

main86120-48490iMCU28..7S200308

FUJITSU TEN,ID=17819

9001023011

main90010-23011

9015350010

main90153-50010

91511B0616

main91511-B0616

7 parts on this diagram · 2 diagrams in section
