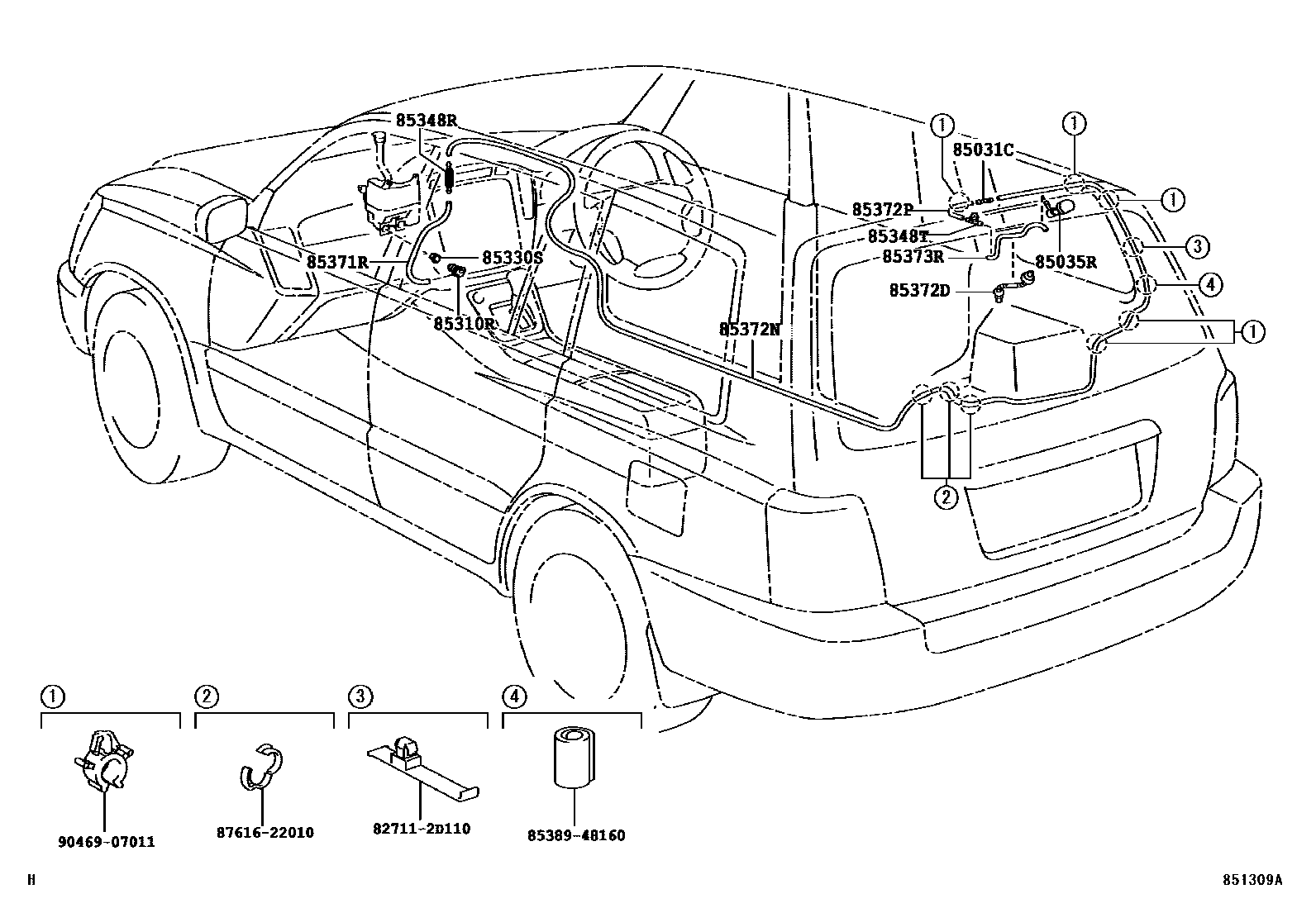

REAR WASHER

85031CVALVE SUB-ASSY, WASHER

main85321-26020iMCU28200308

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-48010iMCU28200308

85310RMOTOR ASSY, REAR WASHER

main85330-60180iMCU28200308

85330SBUSH, REAR WASHER JAR

main85336-60300iMCU28200308

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-32150iMCU28200308

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-17050iMCU28200308

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iMCU28200308

L=1000(*H,L=370)

85372DGROMMET, REAR WASHER HOSE

main85373-48010iMCU28200308

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-59340iMCU28200308

L=5670

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iMCU28200308

L=1800(*H,L=140)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iMCU28200308

L=1450(*H,L=300)

827112D110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2D110

8538948160PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-48160

8761622010CLAMP, COOLING UNIT CASE

main87616-22010

9046907011

main90469-07011

15 parts on this diagram · 1 diagram in section
