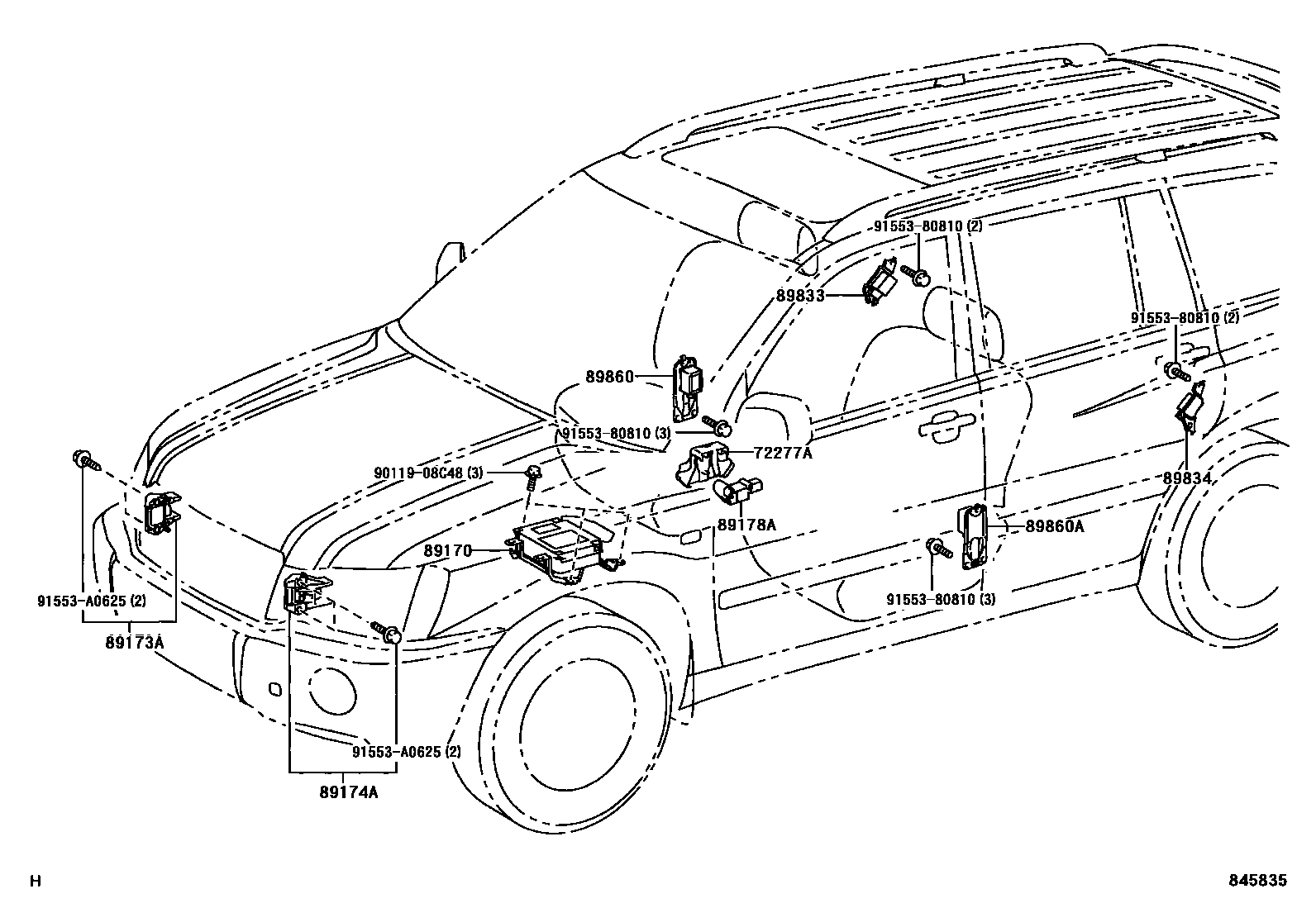

AIR BAG
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
W(MANUAL SEAT)
W(POWER SEAT)
89170SENSOR ASSY, AIRBAG
W(SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG)
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89178ASENSOR, SEAT POSITION AIRBAG
W(MANUAL SEAT)
W(POWER SEAT)
W(MANUAL SEAT)
W(POWER SEAT)
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
9011908C48
main90119-08C48
9155380810
main91553-80810
91553A0625
main91553-A0625
12 parts on this diagram · 1 diagram in section
