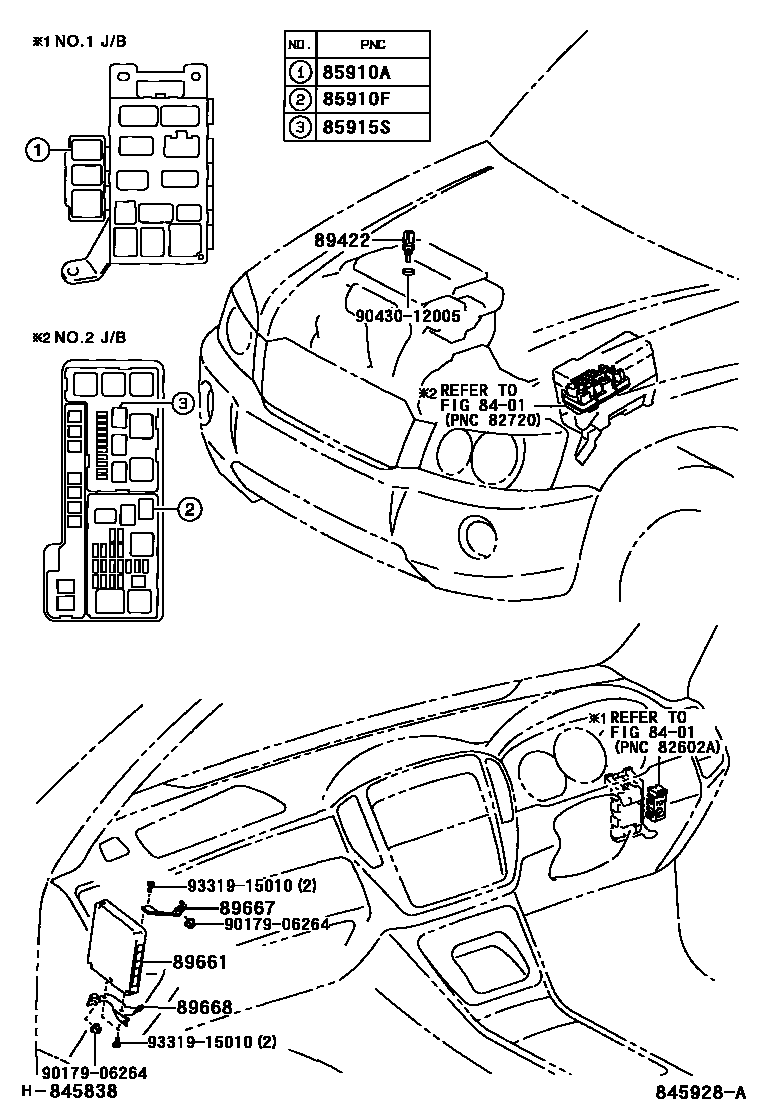

ELECTRONIC FUEL INJECTION SYSTEM

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iMCU28200308

85910FRELAY, COMPUTER (FOR EFI)

main90987-02027iMCU28200308

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027iMCU28200308

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iMCU28200308-200705

89661COMPUTER, ENGINE CONTROL

main89661-48670iMCU28200308-200508

main89661-48B00iMCU28200508

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-48070iMCU28200308

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48040iMCU28200308

9017906264

main90179-06264

9043012005

main90430-12005

9331915010

main93319-15010

11 parts on this diagram · 1 diagram in section
