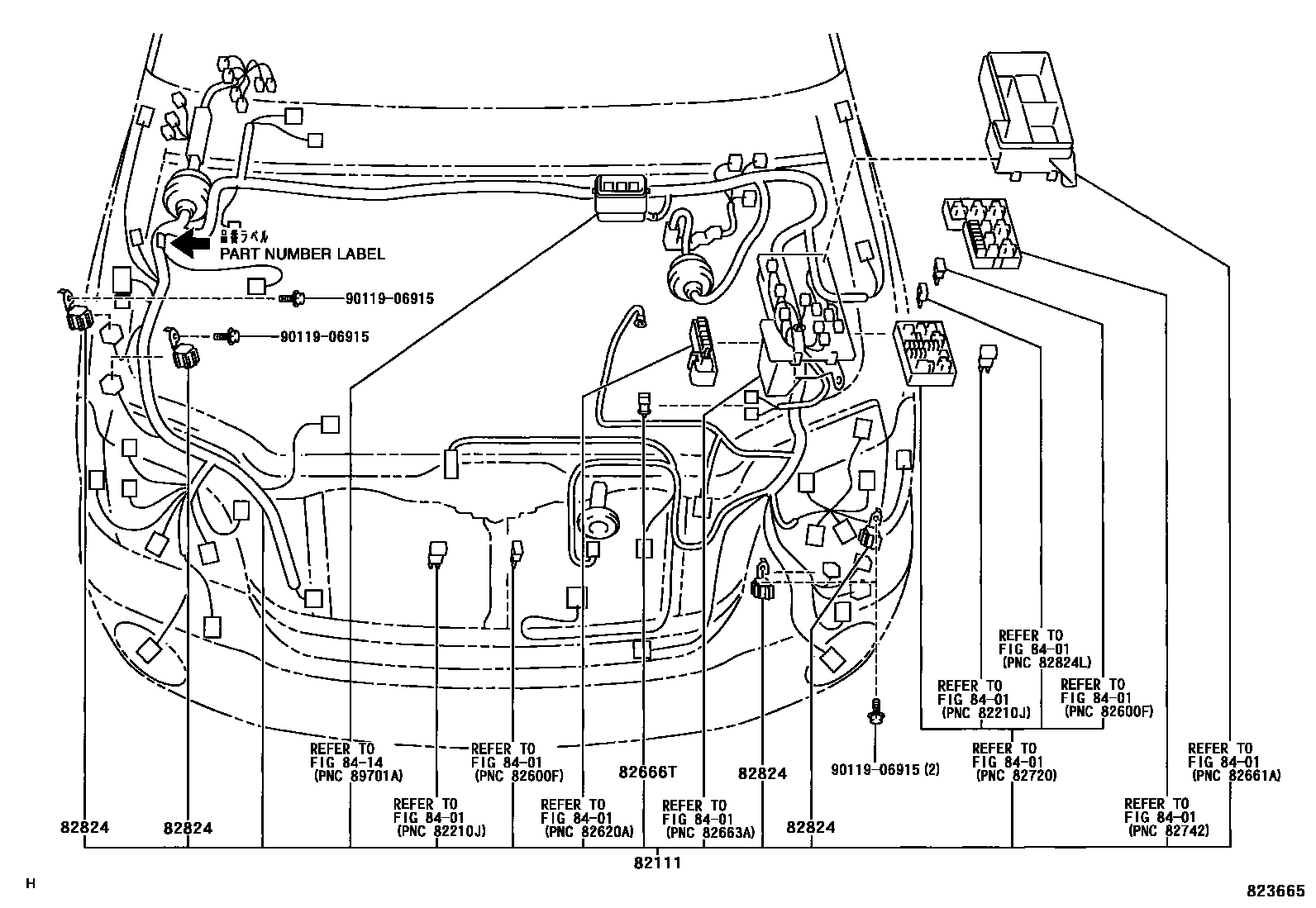

82111WIRE, ENGINE ROOM MAIN

main82111-48A40iMCU28200308

PART NUMBER LABEL=82111-48A40

main82111-48A50iMCU28200308

PART NUMBER LABEL=82111-48A50

82666THOLDER, CONNECTOR NO.14

main82666-20270iMCU28200308

82824CONNECTOR, WIRING HARNESS

main82824-48020×4iMCU28200308

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011906915

main90119-06915

6 parts on this diagram · 10 diagrams in section
