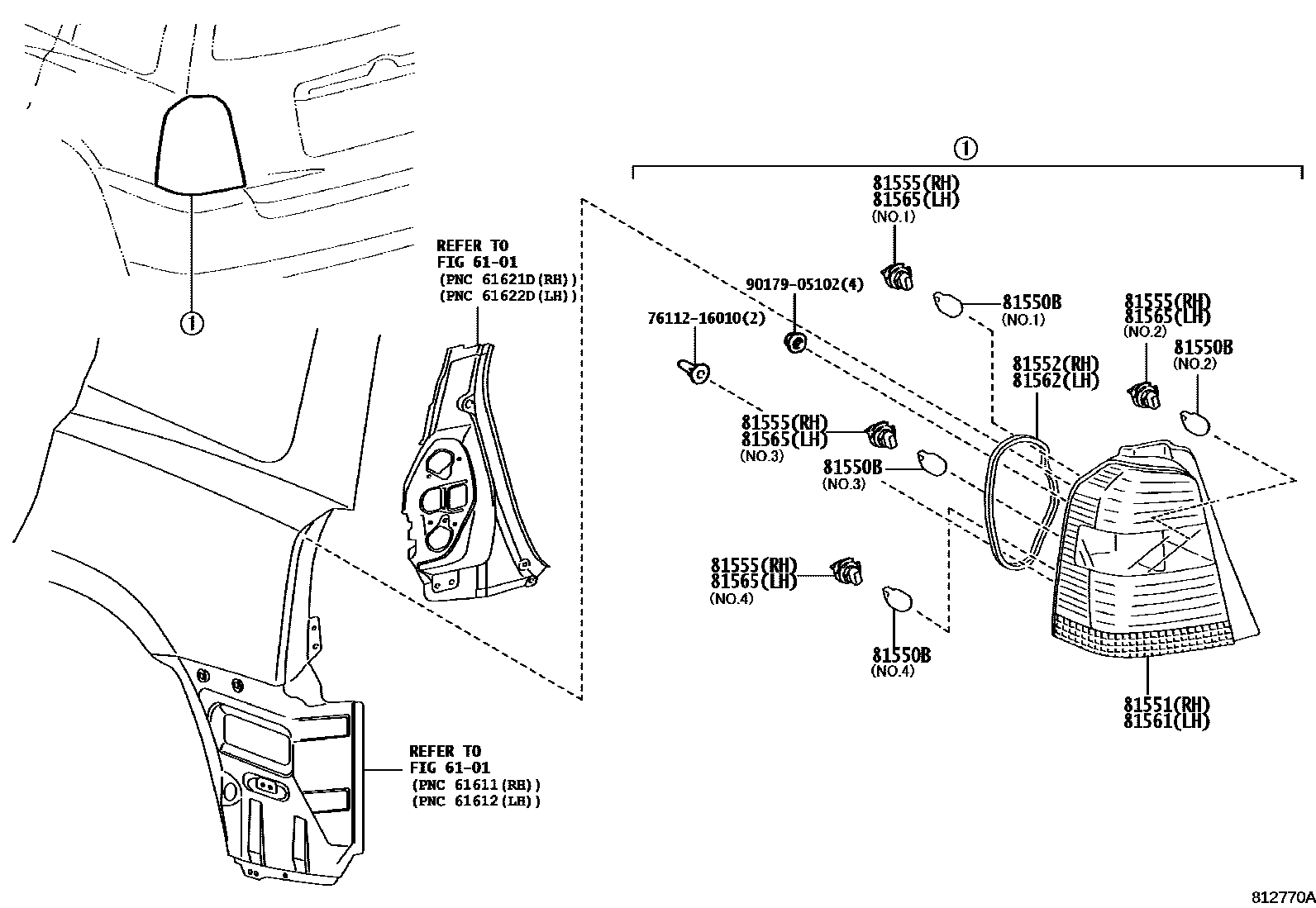

REAR COMBINATION LAMP

6101SIDE MEMBER

→ Go to FIG 61-01

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043×2iMCU28200308-200705

12V 21W,NO.2

main90981-13044×4iMCU28200308-200705

12V 21/5W,NO.1,4

main90981-15011×2iMCU28200308-200705

12V 21W,AMBER,NO.3

81551LENS, REAR COMBINATION LAMP, RH

main81551-48070iMCU28200308

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-48030iMCU28200308

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main90075-60033×2iMCU28200308

NO.1,4

main90075-60034iMCU28200308

NO.3

main90075-60036iMCU28200308

NO.2

81561LENS, REAR COMBINATION LAMP, LH

main81561-48070iMCU28200308

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-48030iMCU28200308

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main90075-60033×2iMCU28200308

NO.1,4

main90075-60034iMCU28200308

NO.3

main90075-60036iMCU28200308

NO.2

7611216010

main76112-16010

9017905102

main90179-05102

10 parts on this diagram · 1 diagram in section
