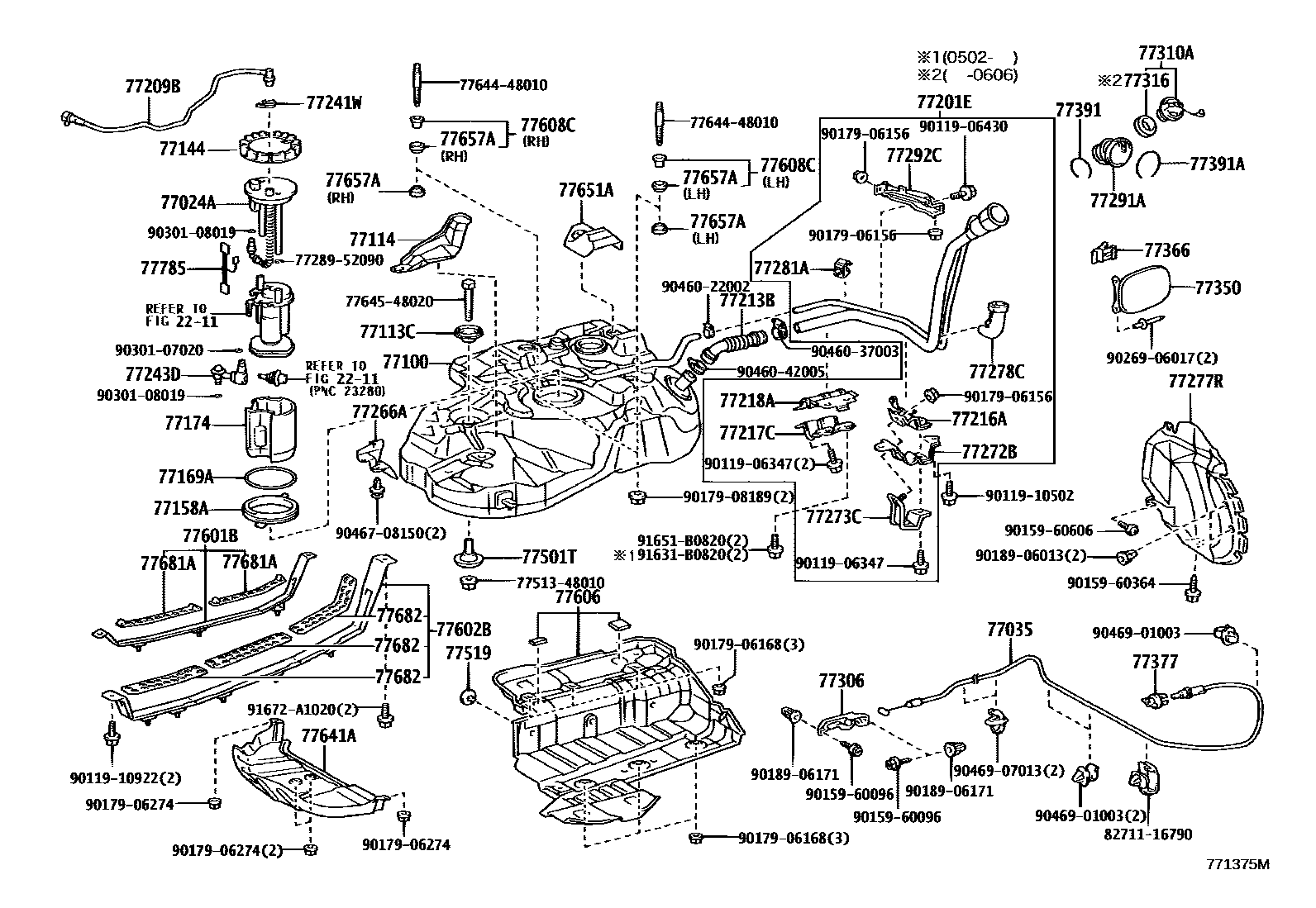

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-48010iMCU28200308-200705

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-48050iMCU28200308

77100TANK ASSY, FUEL

main77001-48080iMCU28200308-200504

main77001-48081iMCU28200704

77113CPLATE, FUEL TANK SIDE

main77103-48021iMCU28200308-200504

77114PLATE, FUEL TANK SIDE, REAR

main77114-48010iMCU28200308-200504

77144RETAINER, FUEL PUMP GAUGE

main77144-48020iMCU28200308

77158ASUPPORT, TANK SUCTION TUBE

main77158-48020iMCU28200308

77169AGASKET, FUEL SUCTION TUBE SET

main77169-48020×2iMCU28200308-200701

main77169-48040iMCU28200702

77174SUPPORT, FUEL SUCTION, NO.1

main77174-35030iMCU28200308-200504

main77174-35031iMCU28200505-200702

main77174-35032iMCU28200703-200705

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77210-48140iMCU28200308-200502

main77210-48141iMCU28200502-200705

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-48020iMCU28200308-200310

main77209-48030iMCU28200310

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-48070iMCU28200308-200504

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-48040iMCU28200308-200501

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-48040iMCU28200308-200502

main77217-48050iMCU28200502

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-48040iMCU28200308-200502

main77218-48070iMCU28200502

77241WCLIP, TUBE JOINT

main77241-33011×2iMCU28200308

77243DJOINT, FUEL TUBE, NO.1

main77243-48020×2iMCU28200308-200504

77266APROTECTOR, FUEL TUBE, NO.1

main77266-48010iMCU28200308

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-48020iMCU28200308-200501

77273CSUPPORT, BREATHER TUBE, NO.2

main77273-48020iMCU28200308-200501

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-48060iMCU28200308

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-48010iMCU28200308-200501

77281ACLAMP, FUEL FILLER PIPE

main77281-48030iMCU28200308-200502

main77281-48070iMCU28200502

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-48030iMCU28200308

77292CSHIELD, FUEL TANK FILLER PIPE, NO.2

main77292-48010iMCU28200308-200501

main77292-48020iMCU28200502

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-48010iMCU28200308

77310ACAP ASSY, FUEL TANK

main77300-28010iMCU28200308-200606

main77300-52030iMCU28200606

77316GASKET, FUEL TANK CAP

main77316-16010iMCU28200308-200606

77350LID ASSY, FUEL FILLER OPENING

main77350-48070iMCU28200308-200705

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iMCU28200308

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iMCU28200308

77391RING, FUEL INLET BOX

main77391-12020iMCU28200308

77391ARING, FUEL INLET BOX

main77391-33010iMCU28200308

77501TBRACKET SUB-ASSY, FUEL TANK

main77501-48011iMCU28200308-200504

77519SPACER, FUEL TANK BRACKET

main77529-48010×3iMCU28200308

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-48040iMCU28200308-200704

main77601-48070iMCU28200705

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-48040iMCU28200308

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-48070iMCU28200308

77608CCUSHION SET, FUEL TANK

main77608-48011iMCU28200505

RH

main77608-48020iMCU28200505

LH

77641APROTECTOR, FUEL TANK, NO.1

main77641-48040iMCU28200308

77651ACUSHION, FUEL TANK, NO.1

main77651-48010iMCU28200308-200504

77657ACUSHION, FUEL TANK, NO.5

main77655-48011×2iMCU28200308

RH

main77655-48020×2iMCU28200308

LH

77681ASEAT, FUEL TANK BAND

main77681-48010×2iMCU28200308-200705

main77681-48050iMCU28200705

77682SEAT, FUEL TANK BAND, LH

main77682-48010×3iMCU28200308

77785HARNESS, FUEL PUMP

main77785-48010×2iMCU28200308-200504

7728952090HOLDER, FUEL TANK PIPE SETTING

main77289-52090

7751348010RETAINER, LPG TANK BRACKET, FRONT

main77513-48010

7764448010BOLT, FUEL TANK

main77644-48010

7764548020PACKING, FUEL TANK BRACKET UPPER, B

main77645-48020

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9011906347

main90119-06347

9011906430

main90119-06430

9011910502

main90119-10502

9011910922

main90119-10922

9015960096

main90159-60096

9015960364

main90159-60364

9015960606

main90159-60606

9017906156

main90179-06156

9017906168

main90179-06168

9017906274

main90179-06274

9017908189

main90179-08189

9018906013

main90189-06013

9018906171

main90189-06171

9026906017

main90269-06017

9030107020

main90301-07020

9030108019

main90301-08019

9046022002

main90460-22002

9046037003

main90460-37003

9046042005

main90460-42005

9046708150

main90467-08150

9046901003

main90469-01003

9046907013

main90469-07013

91631B0820

main91631-B0820

91651B0820

main91651-B0820

91672A1020

main91672-A1020

76 parts on this diagram · 2 diagrams in section
