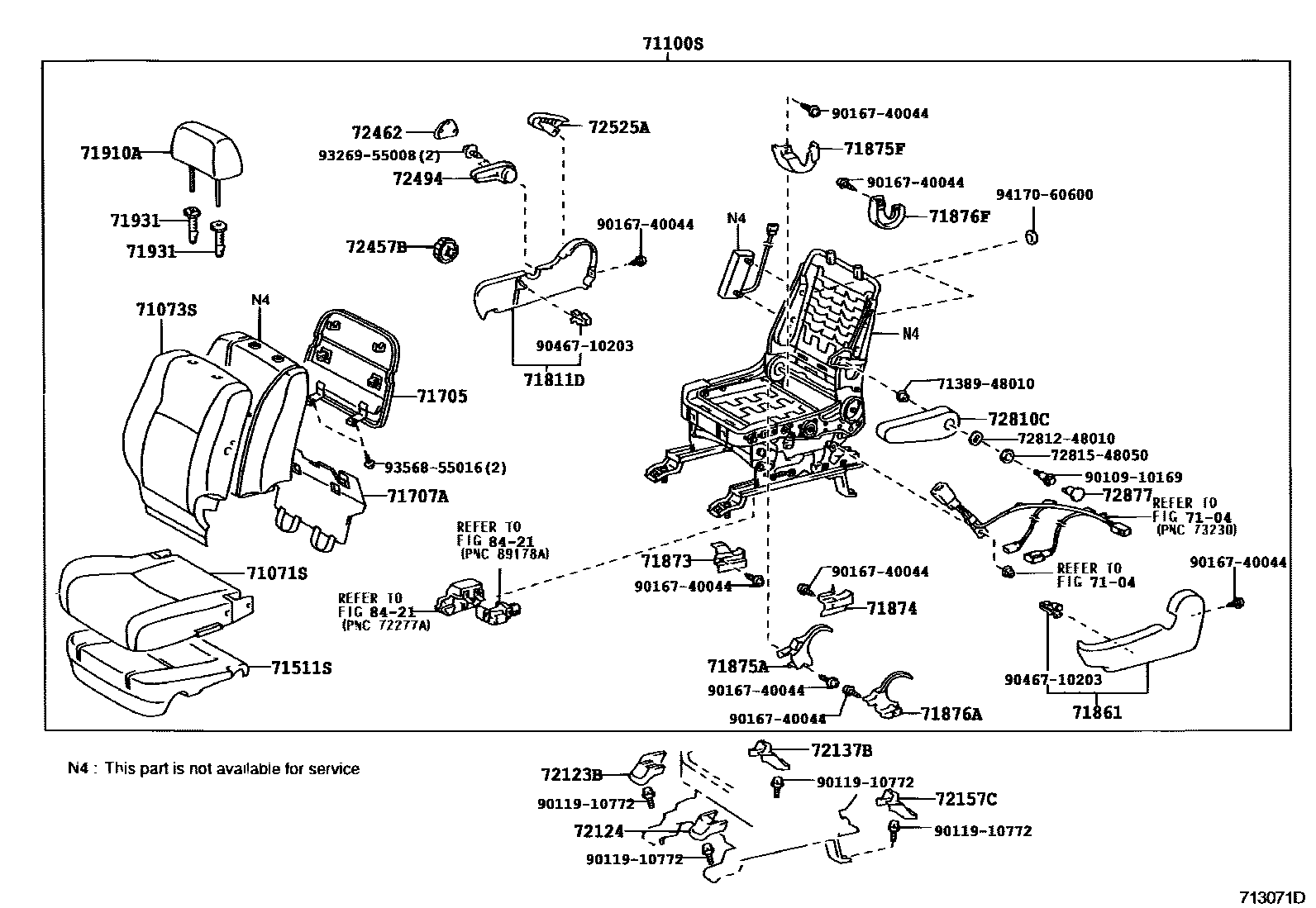

FRONT SEAT & SEAT TRACK

0001 1RH-W(SRS SIDE AIR BAG) 0002 1RH-W(POWER SEAT) 0003 1RH-W(SRS SIDE AIR BAG & POWER0004 1RH 0005 1LH-W(SRS SIDE AIR BAG) 0006 1LH-W(POWER SEAT) 0007 1LH-W(SRS SIDE AIR BAG & POWER0008 1LH

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-48300-A0iMCU28200308-200705

IVORY,TRIM0#

main71071-48300-B0iMCU28200308-200705

GRAY,TRIM1#

main71071-48310-A0iMCU28..7S200308-200705

W(POWER SEAT),IVORY,TRIM0#

main71071-48310-B0iMCU28..7S200308-200705

W(POWER SEAT),GRAY,TRIM1#

main71071-48320-A0iMCU28200308-200705

LEATHER SEAT & W(POWER SEAT),IVORY,TRIM0#

main71071-48320-B0iMCU28200308-200705

LEATHER SEAT & W(POWER SEAT),GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-48430-A2iMCU28..7S200308-200705

W(SRS SIDE AIR BAG & POWER SEAT),IVORY,TRIM0#

main71073-48430-B2iMCU28..7S200308-200705

W(SRS SIDE AIR BAG & POWER SEAT),GRAY,TRIM1#

main71073-48440-A1iMCU28..7S200308-200705

W(POWER SEAT),IVORY,TRIM0#

main71073-48440-B2iMCU28..7S200308-200705

W(POWER SEAT),GRAY,TRIM1#

main71073-48450-A1iMCU28200308-200705

LEATHER SEAT & W(SRS SIDE AIR BAG),IVORY,TRIM0#

main71073-48450-B1iMCU28200308-200705

LEATHER SEAT & W(SRS SIDE AIR BAG),GRAY,TRIM1#

main71073-48470-A1iMCU28200308-200705

LEATHER SEAT,IVORY,TRIM0#

main71073-48470-B1iMCU28200308-200705

LEATHER SEAT,GRAY,TRIM1#

main71073-48490-A0iMCU28200308-200705

W(SRS AIR BAG),IVORY,TRIM0#

main71073-48490-B0iMCU28200308-200705

W(SRS AIR BAG),GRAY,TRIM1#

main71073-48500-A0iMCU28200308-200705

IVORY,TRIM0#

main71073-48500-B0iMCU28200308-200705

GRAY,TRIM1#

71100SSEAT ASSY, FRONT RH

main71100-48820-A3iMCU28200308-200705

IVORY,TRIM0#

main71100-48820-B3iMCU28200308-200705

GRAY,TRIM1#

main71100-48840-A2iMCU28..7S200308-200705

W(POWER SEAT),IVORY,TRIM0#

main71100-48840-B2iMCU28..7S200308-200705

W(POWER SEAT),GRAY,TRIM1#

main71100-48860-A1iMCU28200308-200705

LEATHER SEAT & W(POWER SEAT),IVORY,TRIM0#

main71100-48860-B1iMCU28200308-200705

LEATHER SEAT & W(POWER SEAT),GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-48090iMCU28200308

W(POWER SEAT)

main71511-48200iMCU28..7S200308

W(SRS SIDE AIR BAG & POWER SEAT)

main71511-48220iMCU28200308

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-48080-A3iMCU28200308-200705

IVORY,TRIM0#

main71705-48080-B3iMCU28200308-200705

GRAY,TRIM1#

main71705-48090-A1iMCU28200308-200705

LEATHER SEAT,IVORY,TRIM0#

main71705-48090-B1iMCU28200308-200705

LEATHER SEAT,GRAY,TRIM1#

71707ACOVER SUB-ASSY, FRONT SEATBACK BOARD

main71707-48010-A0iMCU28200308-200705

IVORY,TRIM0#

main71707-48010-B0iMCU28200308-200705

LT.GRAY,TRIM1#

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-48090-A0iMCU28200308-200705

IVORY,TRIM0#

main71811-48090-B0iMCU28200308-200705

NEW GRAY,TRIM1#

main71811-48100-A0iMCU28200308-200705

W(POWER SEAT),IVORY,TRIM0#

main71811-48100-B1iMCU28200308-200705

W(POWER SEAT),NEW GRAY,TRIM1#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-48030-A0iMCU28200308-200705

IVORY,TRIM0#

main71861-48030-B0iMCU28200308-200705

NEW GRAY,TRIM1#

main71861-48040-A0iMCU28200308-200705

W(POWER SEAT),IVORY,TRIM0#

main71861-48040-B1iMCU28200308-200705

W(POWER SEAT),GRAY,TRIM1#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-48010iMCU28200308

main71873-48020iMCU28200308

W(POWER SEAT)

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-48010iMCU28200308

main71874-48020iMCU28200308

W(POWER SEAT)

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-52030-A0iMCU28200308-200705

IVORY,TRIM0#

main71875-52030-B5iMCU28200308-200705

GRAY,TRIM1#

main71875-58030-A0iMCU28200308-200705

W(POWER SEAT),IVORY,TRIM0#

main71875-58030-B5iMCU28200308-200705

W(POWER SEAT),GRAY,TRIM1#

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-58050iMCU28200308-200705

W(POWER SEAT)

main71875-58060-A0iMCU28200308-200705

IVORY,TRIM0#

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-52030-A0iMCU28200308-200705

IVORY,TRIM0#

main71876-52030-B5iMCU28200308-200705

GRAY,TRIM1#

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71876-58050iMCU28200308-200705

W(POWER SEAT)

main71876-58060-A0iMCU28200308-200705

IVORY,TRIM0#

71910AHEADREST ASSY, FRONT SEAT

main71910-48260-A0×2iMCU28200308-200705

IVORY,TRIM0#

main71910-48260-B0×2iMCU28200308-200705

GRAY,TRIM1#

main71910-48290-A0×2iMCU28200308-200705

LEATHER SEAT,IVORY,TRIM0#

main71910-48290-B0×2iMCU28200308-200705

LEATHER SEAT,GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-42020-A0×2iMCU28200308-200705

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-42020-B7×2iMCU28200308-200705

W(LOCK)&W(BUTTON),GRAY,TRIM1#

main71931-42020-A0×2iMCU28200308-200705

W(LOCK)&W/O(BUTTON),IVORY,TRIM0#

main71931-42020-B7×2iMCU28200308-200705

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

72123BCOVER, SEAT TRACK BRACKET, OUTER FRONT

main72123-48030-A0iMCU28200308-200705

IVORY,TRIM0#

main72123-48030-B0iMCU28200308-200705

GRAY,TRIM1#

main72123-48050-A0iMCU28200308-200705

W(POWER SEAT),IVORY,TRIM0#

main72123-48050-B1iMCU28200308-200705

W(POWER SEAT),GRAY,TRIM1#

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-48040-A0iMCU28200308-200705

W(POWER SEAT),IVORY,TRIM0#

main72123-48040-B1iMCU28200308-200705

W(POWER SEAT),GRAY,TRIM1#

main72127-48020-A0iMCU28200308-200705

IVORY,TRIM0#

main72127-48020-B0iMCU28200308-200705

GRAY,TRIM1#

72137BCOVER, SEAT TRACK, RH

main72128-48030-A0iMCU28200308-200705

W(POWER SEAT),IVORY,TRIM0#

main72128-48030-B1iMCU28200308-200705

W(POWER SEAT),GRAY,TRIM1#

main72137-48030-A0iMCU28200308-200705

IVORY,TRIM0#

main72137-48030-B0iMCU28200308-200705

GRAY,TRIM1#

72157CCOVER, SEAT TRACK BRACKET, INNER RH

main72138-48020-A0iMCU28200308-200705

W(POWER SEAT),IVORY,TRIM0#

main72138-48020-B1iMCU28200308-200705

W(POWER SEAT),GRAY,TRIM1#

main72157-48030-A0iMCU28200308-200705

IVORY,TRIM0#

main72157-48030-B0iMCU28200308-200705

GRAY,TRIM1#

72457BKNOB, VERTICAL SEAT ADJUSTER, RH

main72457-58010-A0iMCU28200308-200705

IVORY,TRIM0#

main72457-58010-B4iMCU28200308-200705

NEW GRAY,TRIM1#

72462COVER, VERTICAL ADJUSTER RH

main72462-60010-A0iMCU28200310-200705

IVORY,TRIM0#

main72462-60010-B2iMCU28200310-200705

GRAY,TRIM1#

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-52010-A0iMCU28..5S; MCU28..7S200308-200310

IVORY,TRIM0#

main72494-52010-B4iMCU28..5S; MCU28..7S200308-200310

GRAY,TRIM1#

main72494-60020-A0iMCU28200310-200705

IVORY,TRIM0#

main72494-60020-B2iMCU28200310-200705

GRAY,TRIM1#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-58030-A0iMCU28200308-200705

IVORY,TRIM0#

main72525-58030-B5iMCU28200308-200705

GRAY,TRIM1#

72810CARMREST ASSY, FRONT SEAT, CENTER

main72810-48170-A2iMCU28200308-200705

IVORY,TRIM0#

main72810-48170-B2iMCU28200308-200705

GRAY,TRIM1#

main72810-48180-A1iMCU28200308-200705

LEATHER SEAT,IVORY,TRIM0#

main72810-48180-B1iMCU28200308-200705

LEATHER SEAT,NEW GRAY,TRIM1#

72877COVER, SEAT ARMREST, RH

main72848-48020-A0iMCU28200308-200705

IVORY,TRIM0#

main72848-48020-B3iMCU28200308-200705

GRAY,TRIM1#

8421AIR BAG

→ Go to FIG 84-21

7138948010SPACER, CENTER SEAT HINGE

main71389-48010

7281248010CLUTCH, PROTECTOR SUB

main72812-48010

7281548050HOLDER, CLUTCH PROTECTOR SUB

main72815-48050

9010910169

main90109-10169

9011910772

main90119-10772

9016740044

main90167-40044

9046710203

main90467-10203

9326955008

main93269-55008

9356855016

main93568-55016

9417060600

main94170-60600

38 parts on this diagram · 8 diagrams in section
