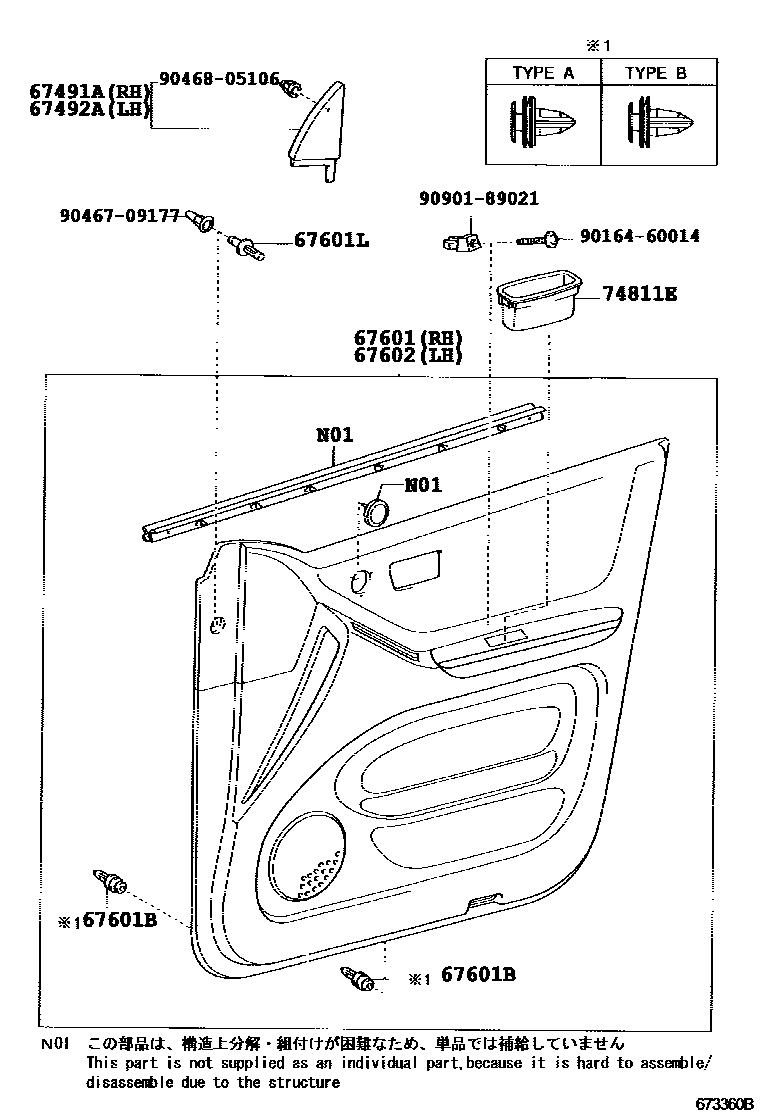

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-48020iMCU28200308

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-48020iMCU28200308

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-48310-A1iMCU28200308-200408

FABRIC TRIM,IVORY,TRIM0#

main67610-48310-B1iMCU28200308-200408

FABRIC TRIM,GRAY,TRIM1#

main67610-48311-A0iMCU28200408-200705

FABRIC TRIM,GRAY,TRIM0#

main67610-48311-B0iMCU28200408-200705

FABRIC TRIM,BLACK,TRIM1#

main67610-48340-A1iMCU28200308-200408

LEATHER TRIM,IVORY,TRIM0#

main67610-48340-B1iMCU28200308-200408

LEATHER TRIM,GRAY,TRIM1#

main67610-48341-A0iMCU28200408-200705

LEATHER TRIM,IVORY,TRIM0#

main67610-48341-B0iMCU28200408-200705

LEATHER TRIM,GRAY,TRIM1#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-09206×12iMCU28200308-200705

TYPE A:REFER TO ILLUSTRATION

main90467-10161×2iMCU28200308-200705

TYPE B:REFER TO ILLUSTRATION

67601LCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07076-A0×2iMCU28200308-200705

IVORY,TRIM0#

main90467-07076-P5×2iMCU28200308-200705

GRAY,TRIM1#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-48330-A1iMCU28200308-200408

FABRIC TRIM,IVORY,TRIM0#

main67620-48330-B1iMCU28200308-200408

FABRIC TRIM,GRAY,TRIM1#

main67620-48331-A0iMCU28200408-200705

FABRIC TRIM,GRAY,TRIM0#

main67620-48331-B0iMCU28200408-200705

FABRIC TRIM,BLACK,TRIM1#

main67620-48360-A1iMCU28200308-200408

LEATHER TRIM,IVORY,TRIM0#

main67620-48360-B1iMCU28200308-200408

LEATHER TRIM,GRAY,TRIM1#

main67620-48361-A0iMCU28200408-200705

LEATHER TRIM,IVORY,TRIM0#

main67620-48361-B0iMCU28200408-200705

LEATHER TRIM,GRAY,TRIM1#

74811EHANDLE, DOOR PULL

main74811-22010-A0×2iMCU28200308-200705

IVORY,TRIM0#

main74811-22010-B4×2iMCU28200308-200705

GRAY,TRIM1#

9016460014

main90164-60014

9046709177

main90467-09177

9046805106

main90468-05106

9090189021

main90901-89021

11 parts on this diagram · 2 diagrams in section
