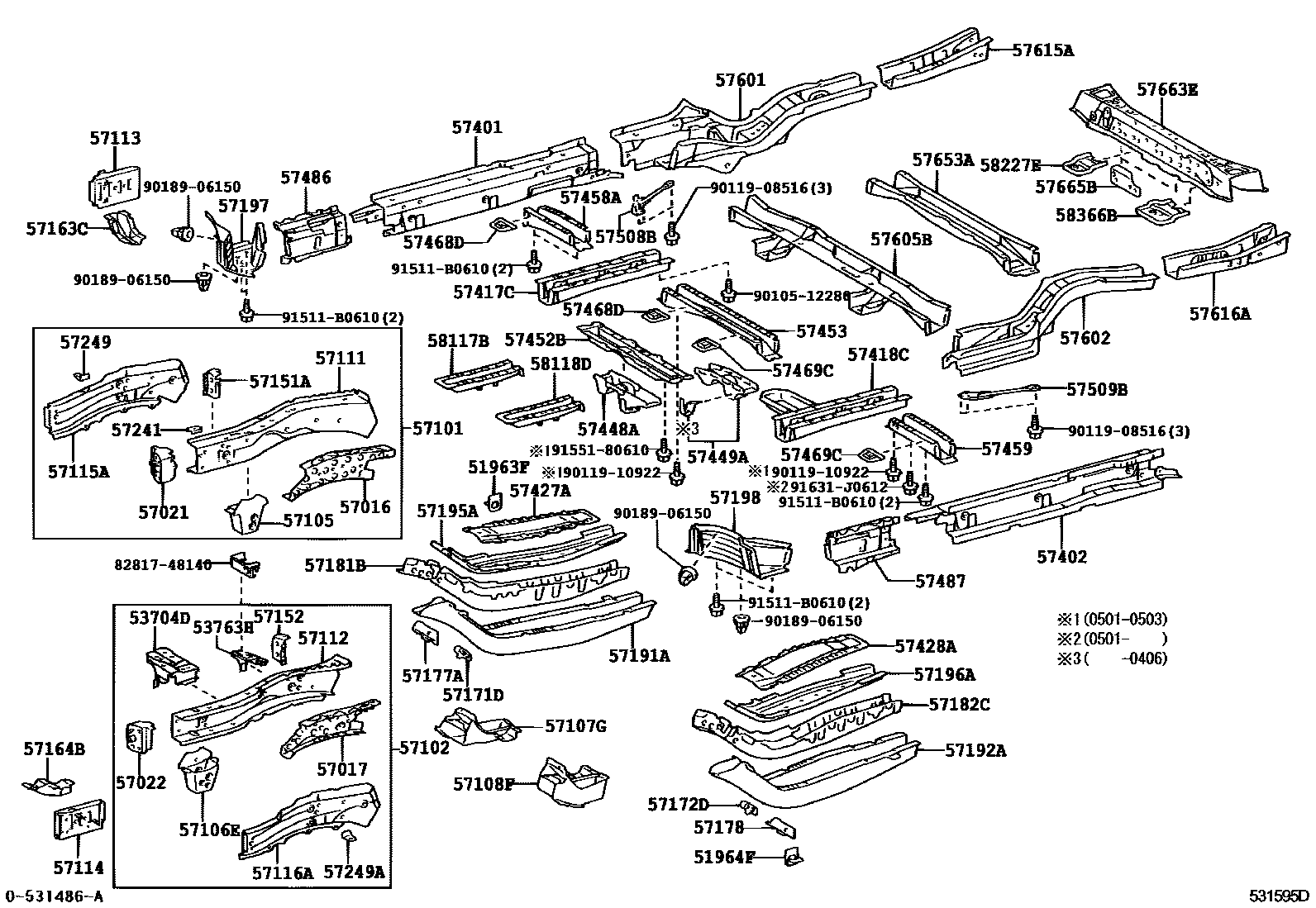

FLOOR SIDE MEMBER

0001 1 0002 1PLUG HOLE

51963FHOOK, TRANSPORT

main51961-48020iMCU28200308-200608

main51961-48040iMCU28200609

51964FHOOK, TRANSPORT, LH

main51961-48020iMCU28200308-200608

main51961-48040iMCU28200609

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-48020iMCU28200308

53763HBRACKET, AIR CLEANER INLET MOUNTING

main53763-48020iMCU28200308

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-48020iMCU28200308

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-48020iMCU28200308

57021BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH

main57021-48012iMCU28200308

57022BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH

main57022-48012iMCU28200308

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57027-48900iMCU28200308

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-48903iMCU28200308

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-28120iMCU28200308

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-28120iMCU28200308

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-48030iMCU28200308

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-48030iMCU28200308

57111MEMBER, FRONT SIDE, RH

main57111-48020iMCU28200308

57112MEMBER, FRONT SIDE, LH

main57112-48021iMCU28200308

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-48021iMCU28200308

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-48021iMCU28200308

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-48020iMCU28200308

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-48020iMCU28200308

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-48020iMCU28200308

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-48020iMCU28200308

57163CREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-48020iMCU28200308

57164BREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-48020iMCU28200308

57171DPLATE, FRONT SIDE MEMBER TO FLOOR, RH

main57171-48030iMCU28200308

57172DPLATE, FRONT SIDE MEMBER TO FLOOR, LH

main57172-48020iMCU28200308

57177APLATE, FRONT SIDE MEMBER, NO.7 RH

main57177-48010iMCU28200308

57178PLATE, FRONT SIDE MEMBER, NO.7 LH

main57178-48010iMCU28200308

57181BPLATE, FRONT SIDE MEMBER, NO.3 RH

main57181-48020iMCU28200308

57182CREINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH

main57182-48020iMCU28200308

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-48020iMCU28200308

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-48020iMCU28200308

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-48020iMCU28200308

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-48020iMCU28200308

57197BOX, TORQUE, FRONT RH

main57197-48021iMCU28200308

57198BOX, TORQUE, FRONT LH

main57198-48021iMCU28200308

57241REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH

main57241-48010iMCU28200308

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-10040iMCU28200308

57249ABRACKET, FREXIBLE HOUSE, NO.1, LH

main57249-10040iMCU28200308

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-48030iMCU28200308-200705

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-48030iMCU28200308-200705

57417CREINFORCEMENT, FRONT FLOOR UNDER

main58107-48010iMCU28200308

57418CREINFORCEMENT, FRONT FLOOR UNDER, LH

main58108-48010iMCU28200308

57427AREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-48020iMCU28200308

57428AREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57428-48020iMCU28200308

57448ABRACKET, DIFF LOCK LEVER MOUNT, NO.1

main57448-48030iMCU28200406

main58106-48010iMCU28200308-200406

57449ABRACKET, DIFF LOCK LEVER MOUNT, NO.2

main57407-48020iMCU28200308-200406

main57449-48011iMCU28200406

57452BMEMBER, FRONT FLOOR CROSS, NO.2

main57452-48030iMCU28200308-200406

main57452-48031iMCU28200406

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57453-48010iMCU28200308

57458APLATE, FRONT FLOOR CROSSMEMBER, NO.2 LH

main57458-48012iMCU28200308

57459MEMBER, FRONT FLOOR CROSS, NO.2

main57459-48014iMCU28200308-200406

main57459-48015iMCU28200406

57468DBRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-48010iMCU28200308

57469CBRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57468-48010iMCU28200308

57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-48023iMCU28200308

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-48023iMCU28200308

57508BREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-48020iMCU28200308

57509BREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-48020iMCU28200308

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-48905iMCU28200308-200608

main57601-48909iMCU28200608-200701

main57601-48911iMCU28200701-200705

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-48905iMCU28200308-200608

main57602-48908iMCU28200608-200701

main57602-48910iMCU28200701-200705

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-48030iMCU28200308

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57606-48050iMCU28200308

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57607-48010iMCU28200308

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-48021iMCU28200308

57663EMEMBER, REAR FLOOR CROSS, CENTER

main57663-48021iMCU28200308

57665BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2

main57665-48020iMCU28200308

58117BREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-48030iMCU28200308

58118DREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-48030iMCU28200308

58227EPLATE, FRONT FLOOR PANEL SIDE, RH

main58127-48020iMCU28200308

58366BBRACKET, FUEL TANK SUPPORT, LH

main58366-48020iMCU28200308

8281748140PROTECTOR, WIRING HARNESS, NO.1

main82817-48140

9010512280

main90105-12280

9011908516

main90119-08516

9011910922

main90119-10922

9018906150

main90189-06150

91511B0610

main91511-B0610

9155180610

main91551-80610

91631J0612

main91631-J0612

77 parts on this diagram · 2 diagrams in section
