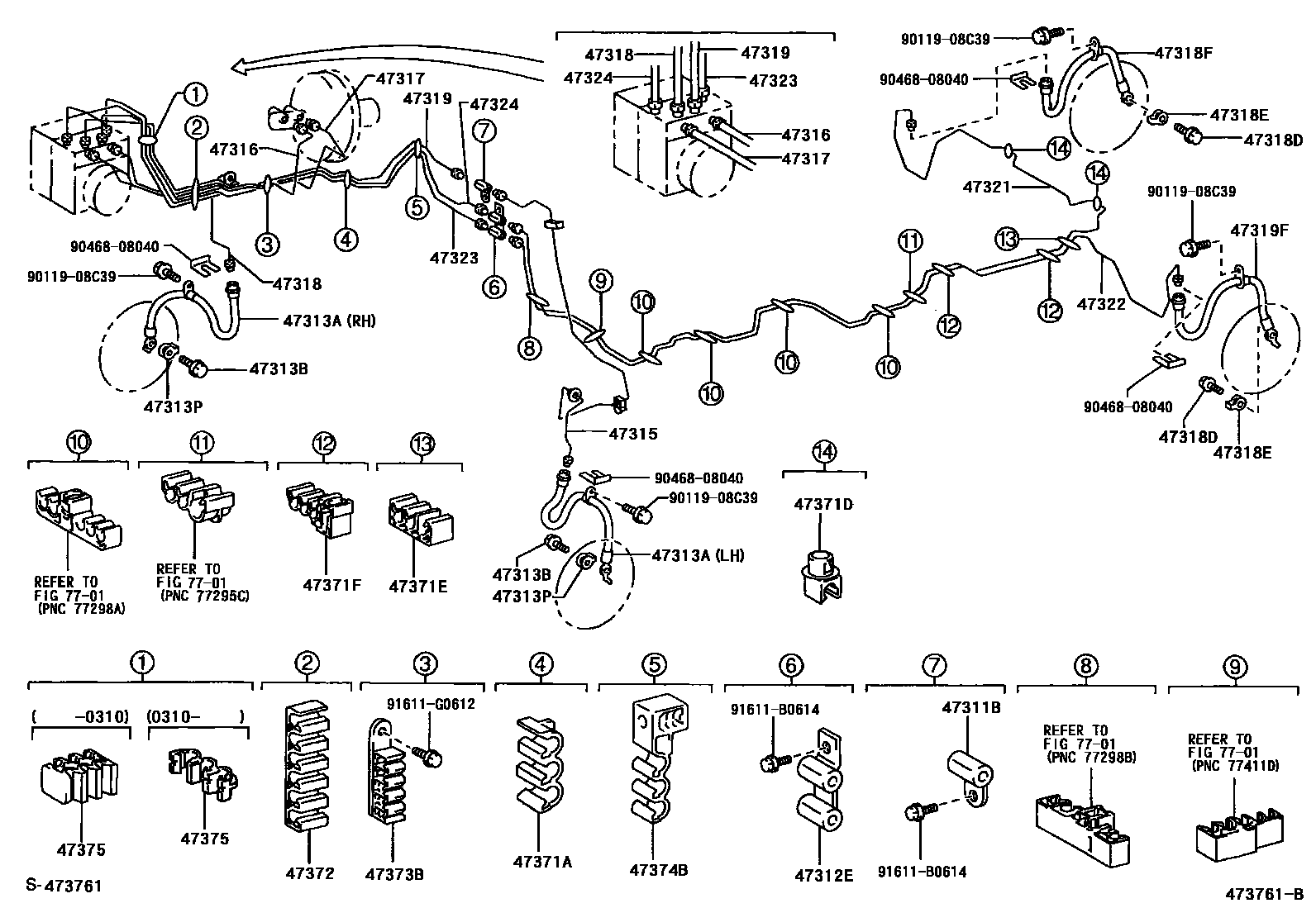

BRAKE TUBE & CLAMP

0001 1 0002 1W(VSC) 0003 1 0004 1W(VSC)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10213iMCU28200308

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10246iMCU28200308

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02D50iMCU28200308

RH

main90947-02D51iMCU28200308

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iMCU28200308

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iMCU28200308

47315TUBE, FRONT BRAKE, NO.5

main47315-48090iMCU28200308

47316TUBE, FRONT BRAKE, NO.6

main47316-48190iMCU28200308

W(VSC)

main47316-48200iMCU28200308

47317TUBE, FRONT BRAKE, NO.7

main47317-48190iMCU28200308

W(VSC)

main47317-48200iMCU28200308

47318TUBE, FRONT BRAKE, NO.8

main47318-48130iMCU28200308-200310

main47318-48131iMCU28200310

main47318-48140iMCU28200308

W(VSC)

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iMCU28200308

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iMCU28200308

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02D55iMCU28200308-200410

main90947-02E16iMCU28200410

47319TUBE, FRONT BRAKE, NO.9

main47319-48170iMCU28200308

W(VSC)

main47319-48180iMCU28200308-200310

main47319-48181iMCU28200310

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02D56iMCU28200308-200410

main90947-02E17iMCU28200410

47321TUBE, REAR BRAKE, NO.1

main47321-48040iMCU28200308

47322TUBE, REAR BRAKE, NO.2

main47322-48050iMCU28200308-200705

47323TUBE, REAR BRAKE, NO.3

main47323-48190iMCU28200308

W(VSC)

main47323-48200iMCU28200308

47324TUBE, REAR BRAKE, NO.4

main47324-48190iMCU28200308

W(VSC)

main47324-48200iMCU28200308

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00778iMCU28200308

47371DCLAMP, BRAKE TUBE, NO.8

main90469-07017iMCU28200308

47371ECLAMP, BRAKE TUBE, NO.9

main90464-00857iMCU28200308-200705

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D05iMCU28200308-200705

47372CLAMP, BRAKE TUBE, NO.2

main90949-01C85iMCU28200308

47373BCLAMP, BRAKE TUBE, NO.3

main47371-48040iMCU28200308

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D02iMCU28200308

47375CLAMP, BRAKE TUBE, NO.5

main90464-00868iMCU28200310

main90949-01969iMCU28200308-200310

main90949-01969iMCU28200310

W(VSC)

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908C39

main90119-08C39

9046808040

main90468-08040

91611B0614

main91611-B0614

91611G0612

main91611-G0612

31 parts on this diagram · 4 diagrams in section
