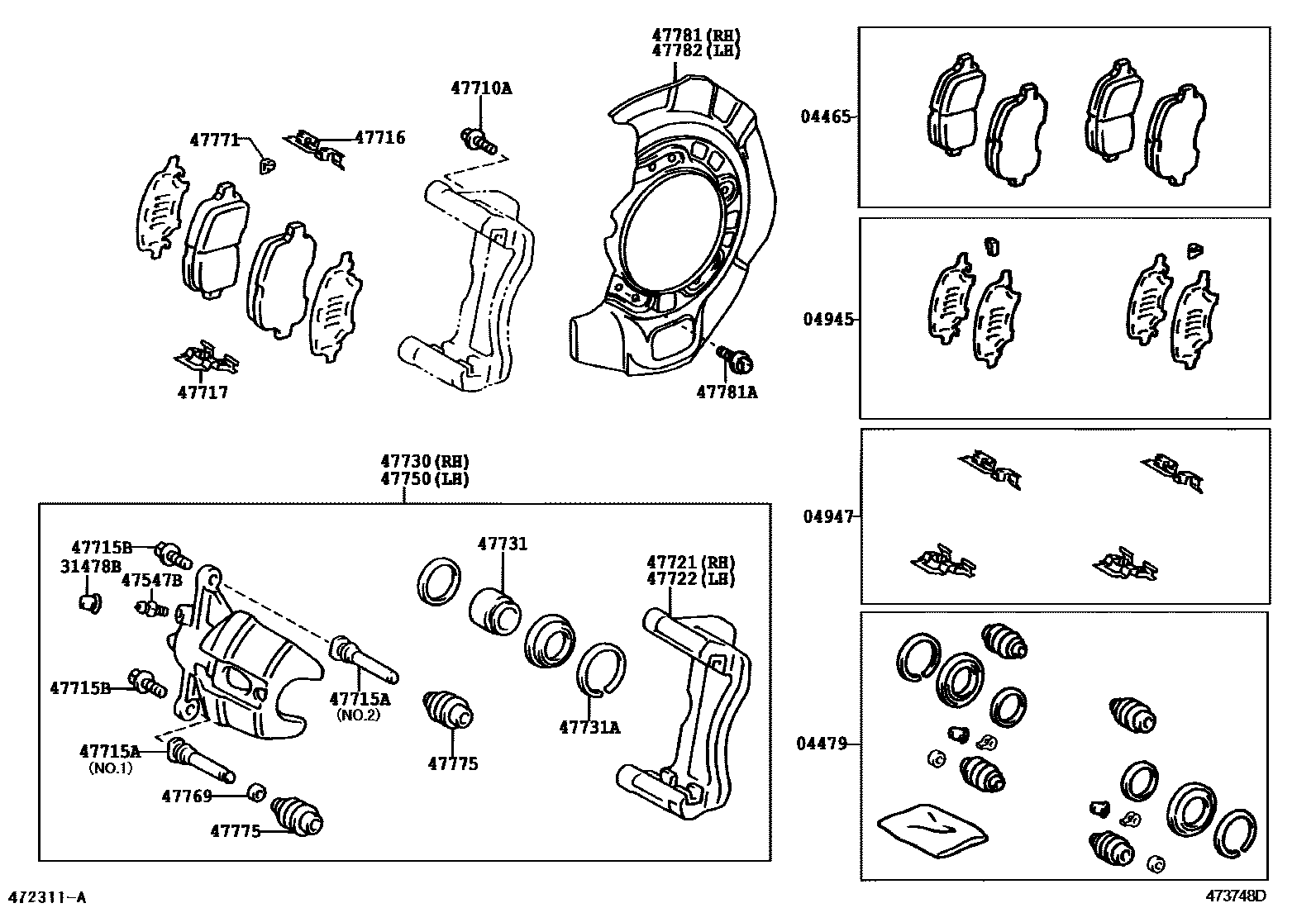

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-48030iMCU28200308-200705

MARK NBK PN529H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-48020iMCU28200308

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48130iMCU28200308

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48060iMCU28200308

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMCU28200308

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iMCU28200308

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iMCU28200308-200705

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48050iMCU28200308

NO.1

main47715-48050iMCU28200308

NO.2

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08346iMCU28200308-200705

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-48031iMCU28200308-200705

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-48031iMCU28200308-200705

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48130iMCU28200308

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-48130iMCU28200308

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-48130iMCU28200308

47731PISTON, FRONT DISC BRAKE

main47731-48030iMCU28200308

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-67001iMCU28200308

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-48130iMCU28200308

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-33020iMCU28200308

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-48010iMCU28200308

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-48010iMCU28200308

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-48020iMCU28200308-200705

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iMCU28200308-200705

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-48020iMCU28200308-200705

23 parts on this diagram · 1 diagram in section
