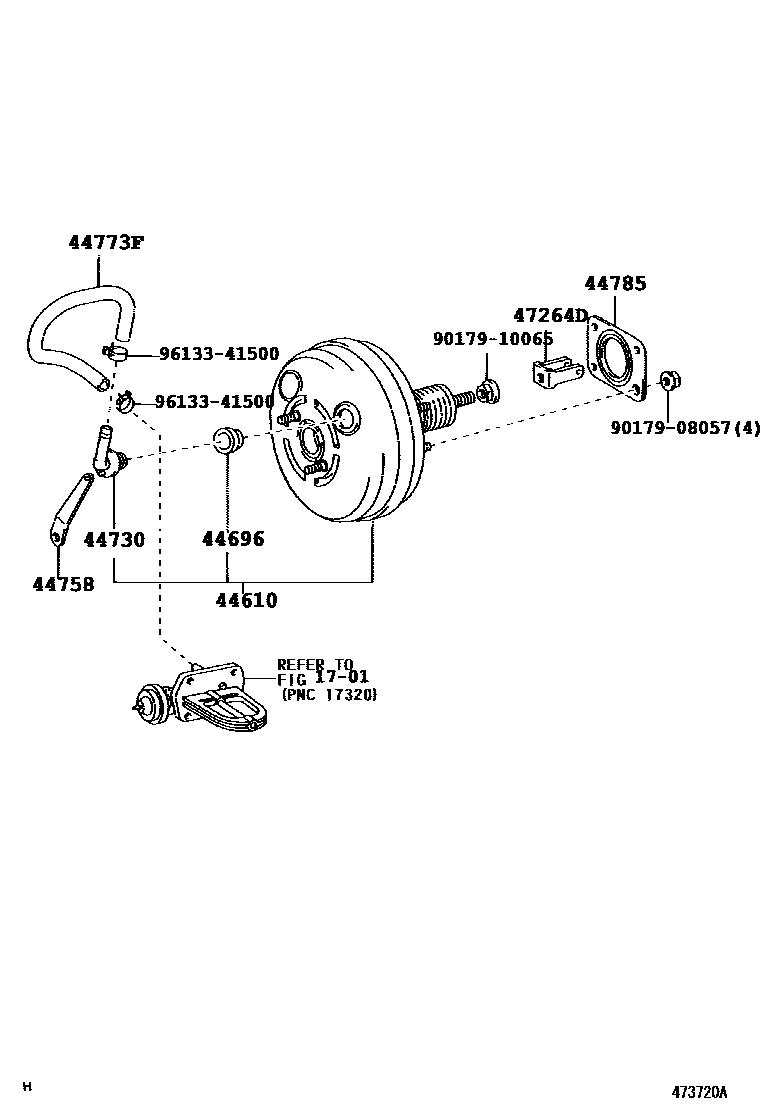

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-48260iMCU28200308

44696GROMMET, CHECK VALVE

main90480-24439iMCU28200308

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iMCU28200308

44758BRACKET, VACUUM CHECK VALVE

main44758-48010iMCU28200308

44773FHOSE, UNION TO CHECK VALVE

main44773-48120iMCU28200308

44785GASKET, BRAKE BOOSTER

main44785-10020iMCU28200308-200309

main44785-16020iMCU28200309

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iMCU28200308

9017908057

main90179-08057

9017910065

main90179-10065

9613341500

main96133-41500

11 parts on this diagram · 1 diagram in section
