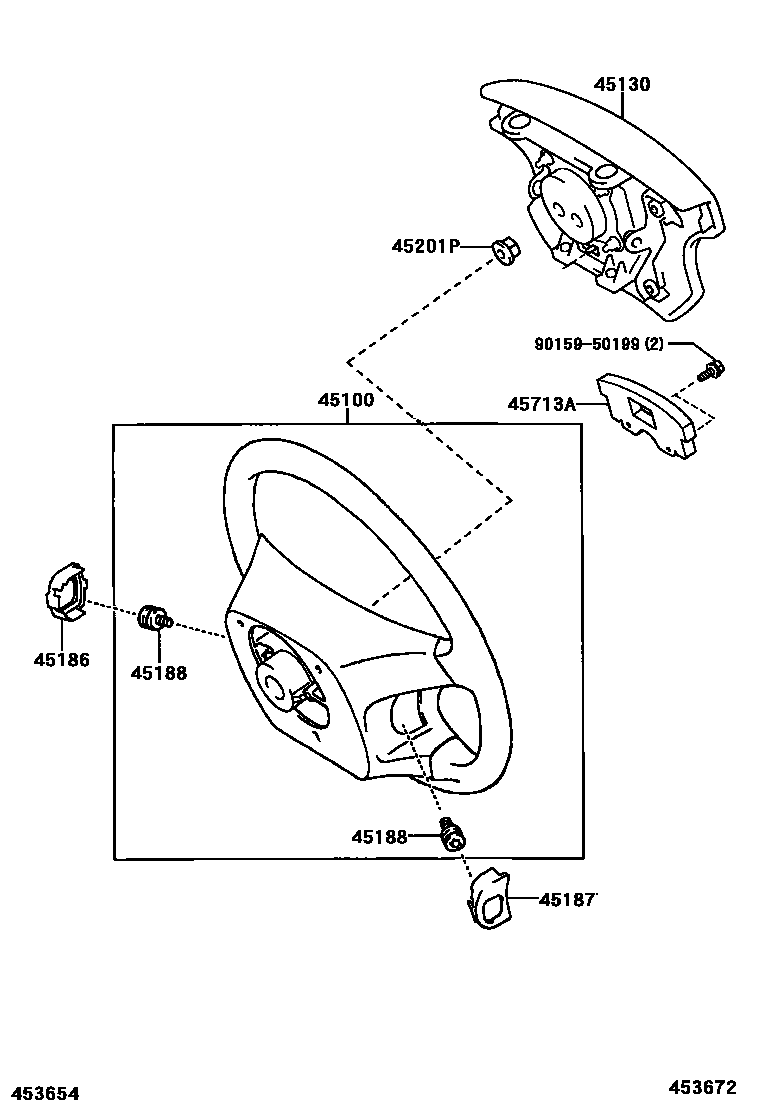

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-28340-B2iMCU28200308-200705

4-SPOKE,URETHANE,SADDLE GRAY,TRIM1#

main45100-28340-E0iMCU28200308-200705

4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#

main45100-48360-B2iMCU28200308-200705

4-SPOKE,LEATHER,SADDLE GRAY,TRIM1#

main45100-48360-E1iMCU28200308-200705

4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

45130BUTTON ASSY, HORN

main45130-48130-B0iMCU28200308-200705

SADDLE GRAY,TRIM1#

main45130-48130-E0iMCU28200308-200705

SANDAL WOOD,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-58020-B1iMCU28200308-200705

SADDLE GRAY,TRIM1#

main45186-58020-E1iMCU28200308-200705

SANDAL WOOD,TRIM0#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-58010-B1iMCU28200308-200705

SADDLE GRAY,TRIM1#

main45187-58010-E1iMCU28200308-200705

SANDAL WOOD,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iMCU28200308

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iMCU28200308

45713ADAMPER, STEERING SHAKE

main45713-48110iMCU28200308

9015950199

main90159-50199

8 parts on this diagram · 1 diagram in section
