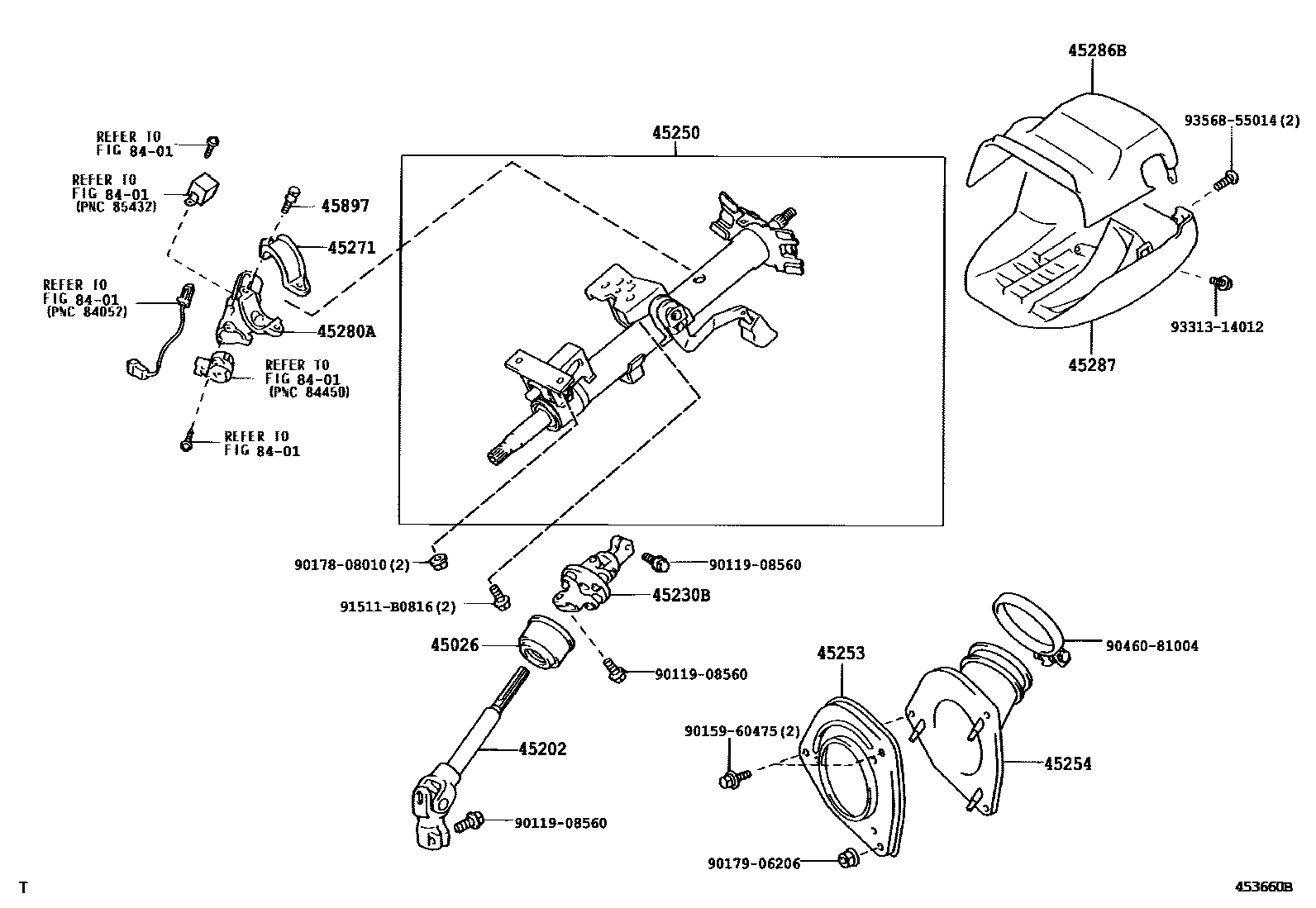

STEERING COLUMN & SHAFT

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-48011iMCU28200308

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-48050iMCU28200308

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45230-48050iMCU28200308

45250COLUMN ASSY, STEERING

main45250-48020iMCU28200308

45253COVER, STEERING COLUMN HOLE

main45253-48030iMCU28200308

45254SHIELD, STEERING COLUMN HOLE

main45254-48030iMCU28200308

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iMCU28200308

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-48060iMCU28200308

45286BCOVER, STEERING COLUMN, UPR

main45286-48050-B0iMCU28200308-200705

SADDLE GRAY,TRIM1#

main45286-48050-E0iMCU28200308-200705

SANDAL WOOD,TRIM0#

45287COVER, STEERING COLUMN, LWR

main45024-48080-B0iMCU28200308-200705

SADDLE GRAY,TRIM1#

main45024-48080-E0iMCU28200308-200705

SANDAL WOOD,TRIM0#

45897BOLT, STEERING LOCK SET

main45897-12020×2iMCU28200308

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9015960475

main90159-60475

9017808010

main90178-08010

9017906206

main90179-06206

9046081004

main90460-81004

91511B0816

main91511-B0816

9331314012

main93313-14012

9356855014

main93568-55014

20 parts on this diagram · 1 diagram in section
