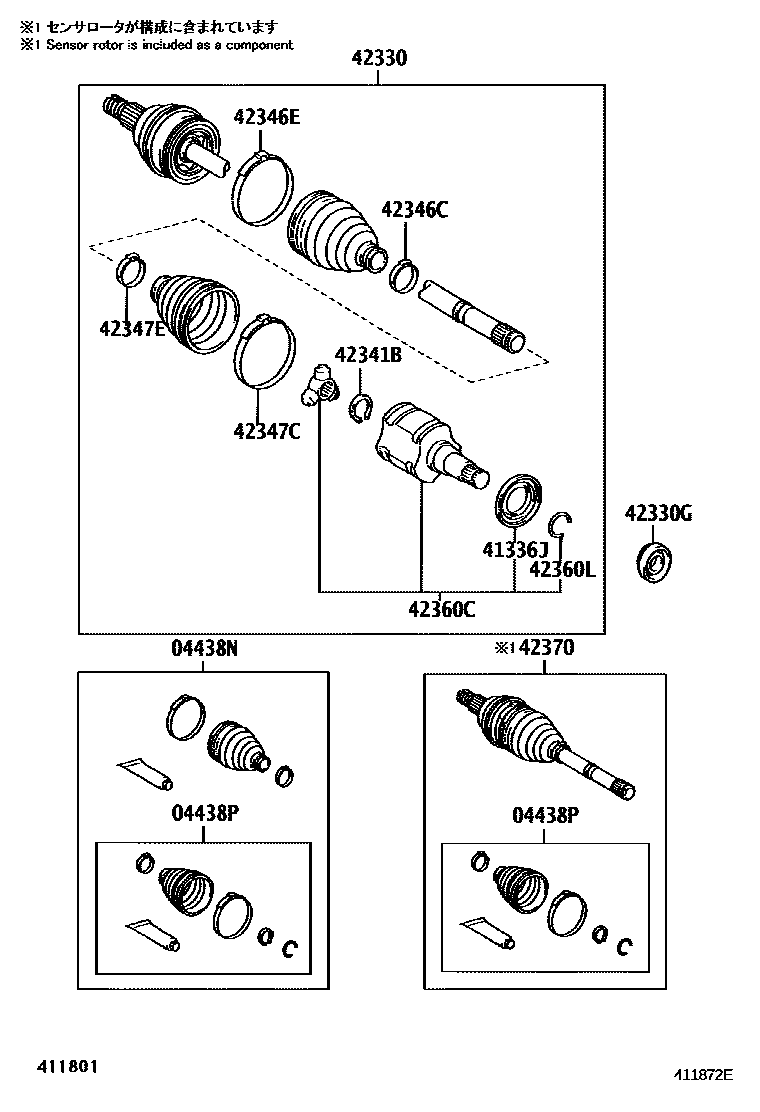

REAR AXLE SHAFT & HUB

0001 1RH 0002 1 0003 1LH

04438NBOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH

main04437-21040iMCU28200308

main04437-21060iMCU28200308

W(LSD)

04438PBOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, RH

main04437-21030iMCU28200308

main04437-21050iMCU28200308

W(LSD)

41336JCOVER, REAR DRIVE SHAFT DUST, RH

main41336-14010iMCU28200308

42330SHAFT ASSY, REAR DRIVE, RH

main42340-48030iMCU28200308

main42340-48050iMCU28200308

W(LSD)

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-35032iMCU28200308-200705

42341BRING, SNAP (FOR REAR DRIVE SHAFT RH)

main43425-21010iMCU28200308

42346CCLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-21040iMCU28200308

42346ECLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-21030iMCU28200308

42347CCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-21010iMCU28200308

42347ECLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-21020iMCU28200308

42360CJOINT ASSY, REAR DRIVE SHAFT INBOARD, RH

main42360-21010iMCU28200308

main42360-21020iMCU28200308

W(LSD)

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-26004iMCU28200308

main90521-28004iMCU28200308

W(LSD)

42370SHAFT ASSY, REAR DRIVE OUTBOARD JOINT

main42370-49125iMCU28200308

main42370-49145iMCU28200308

W(LSD)

13 parts on this diagram · 3 diagrams in section
