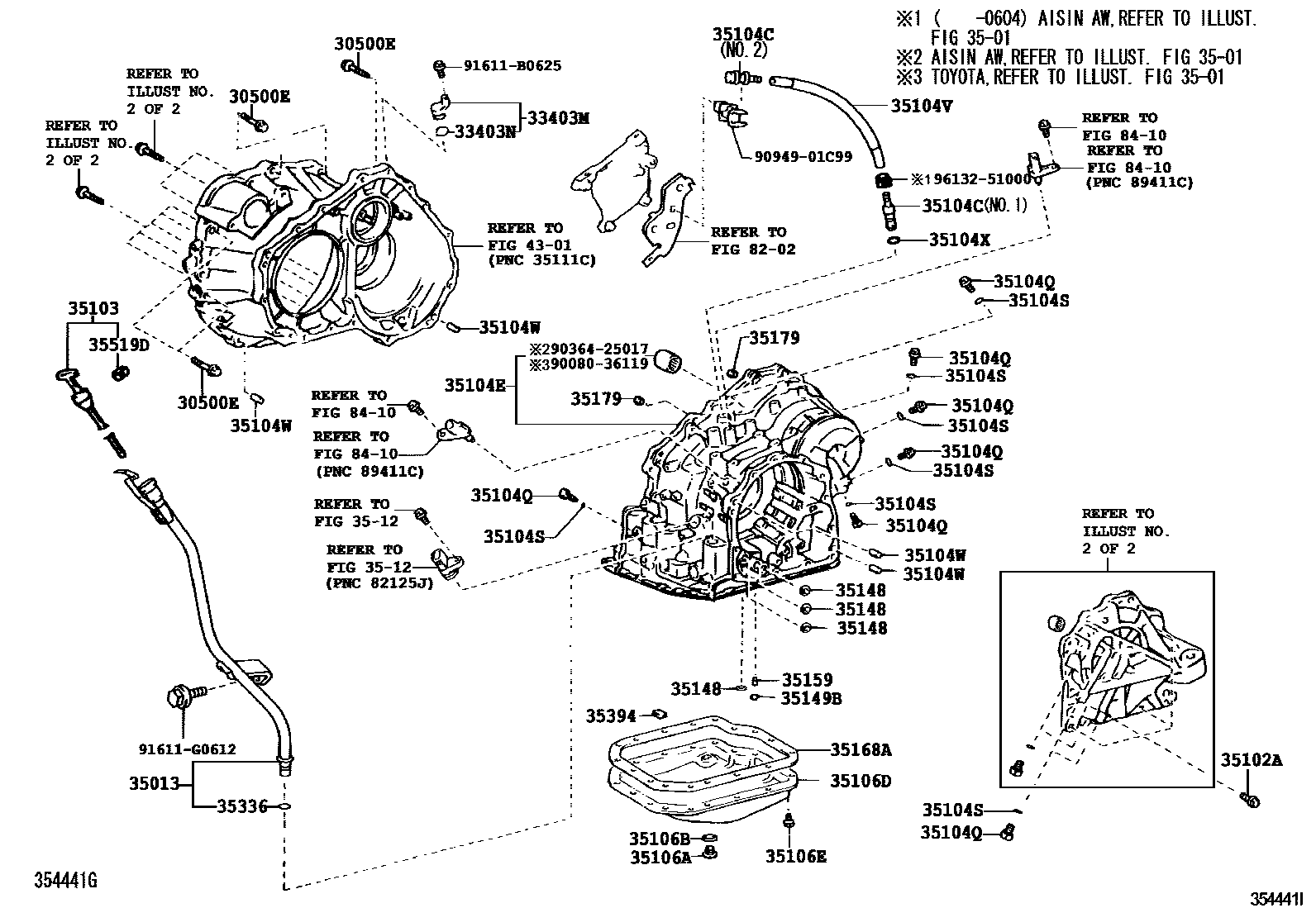

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U151F 0002 1U151F

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10425iMCU28200308

*10-1.25PX41-28

main90119-12168×3iMCU28200308

*12-1.25PX55-30

main90119-12250iMCU28200308

*12-1.25PX50-30

main91619-61265iMCU28200308

*12-1.25PX65-30

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-21020iMCU28200308

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24020iMCU28200308

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-48110iMCU28200308

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-08010iMCU28200602

(L)

main35102-33030iMCU28200308

(J)

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90080-10197×11iMCU28200602-200705

*8-1.25PX30-27.5

main90105-08071×11iMCU28200308-200705

*8-1.25PX30-25

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-48080iMCU28200308

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03149iMCU28200308

NO.2

main90930-03157iMCU28200308

NO.1

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-08010iMCU28200602-200705

TOYOTA:REFER 35-01

main35104-33041iMCU28200703-200705

AISIN:REFER 35-01

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×8iMCU28200308

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90080-30105×8iMCU28200602

TOYOTA:REFER 35-01

main90301-06196×8iMCU28200308

AISIN:REFER 35-01

35104VHOSE (FOR BREATHER PLUG)

main35121-45010iMCU28200602

TOYOTA:REFER 35-01

main35121-48030iMCU28200308

AISIN:REFER 35-01

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10034×4iMCU28200308

AISIN:REFER 35-01

main90250-A0005×4iMCU28200602

TOYOTA:REFER 35-01

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iMCU28200308

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iMCU28200308

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iMCU28200308

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-08010iMCU28200602

(L)

main35106-33040iMCU28200308

(J)

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90080-11496×18iMCU28200602

(L)

main90119-06173×18iMCU28200308

(J)

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35148GASKET, GOVERNOR APPLY, NO.1

main35145-06010×4iMCU28200602

(L)

main35145-21010×4iMCU28200308

(J)

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-06010iMCU28200602

(L)

main35149-21010iMCU28200308

(J)

35159GASKET, BRAKE DRUM

main35159-06010iMCU28200602

(L)

main35159-21010iMCU28200308

(J)

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21010iMCU28200308

AISIN:REFER 35-01

main35168-21011iMCU28200602

TOYOTA:REFER 35-01

35179GASKET, OVERDRIVE BRAKE

main35179-06010×2iMCU28200602

(L)

main35179-32010×2iMCU28200308

(J)

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iMCU28200308

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-08010×2iMCU28200602

(L)TOYOTA:REFER35-01

main35394-30011×2iMCU28200602

(J)TOYOTA:REFER35-01

main35394-48010×2iMCU28200403

AISIN:REFER 35-01

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-52010iMCU28200308

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8202WIRING & CLAMP

→ Go to FIG 82-02

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9008036119

main90080-36119

9036425017

main90364-25017

9094901C99

main90949-01C99

91611B0625

main91611-B0625

91611G0612

main91611-G0612

9613251000

main96132-51000

36 parts on this diagram · 2 diagrams in section
