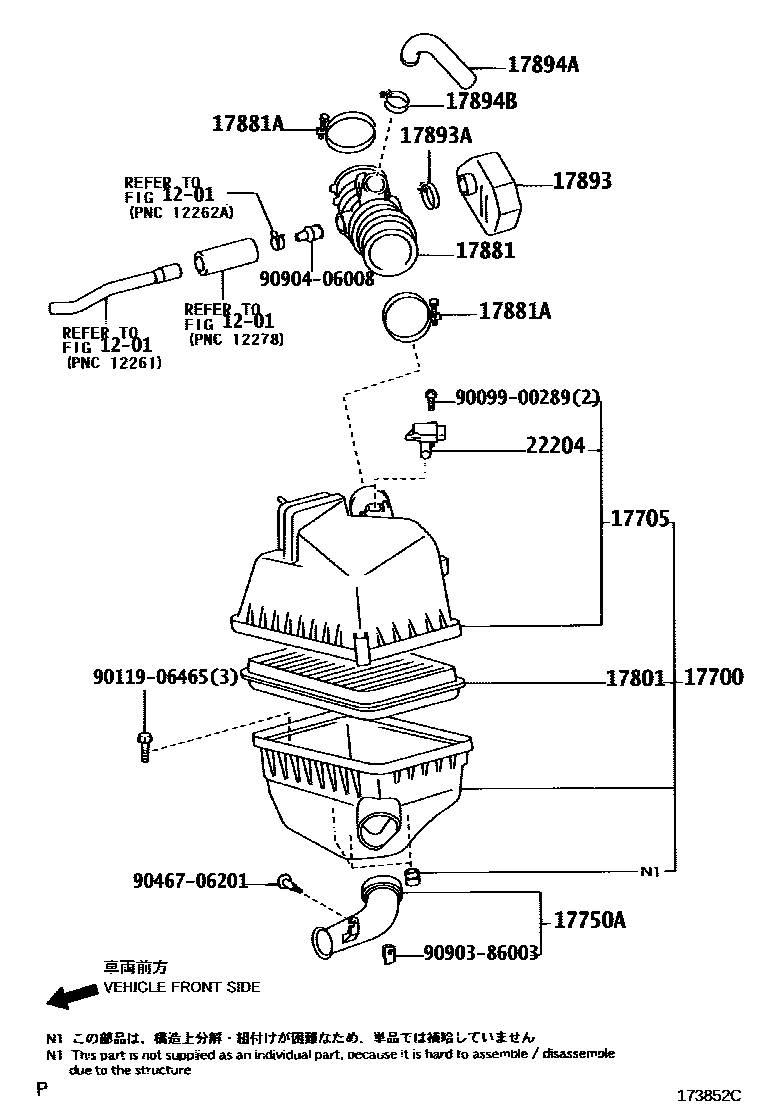

AIR CLEANER

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-20070i3MZFE..MCU28200308-200609

main17700-20071i3MZFE..MCU28200610

17705CAP SUB-ASSY, AIR CLEANER

main17705-20190i3MZFE..MCU28200308-200609

main17705-20191i3MZFE..MCU28200610

17750AINLET ASSY, AIR CLEANER

main17750-20090i3MZFE..MCU28200308

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-20040i3MZFE..MCU28200308-200609

17881HOSE, AIR CLEANER, NO.1

main17881-20120i3MZFE..MCU28200308

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850×2i3MZFE..MCU28200308

17893RESONATOR, INTAKE AIR

main17893-20090i3MZFE..MCU28200308

17893ACLAMP, HOSE

main96111-10560i3MZFE..MCU28200308

17894ARESONATOR, INTAKE AIR, NO.2

main17894-20010i3MZFE..MCU28200308

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10480i3MZFE..MCU28200308

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-21010i3MZFE..MCU28200308-200609

9009900289

main90099-00289

9011906465

main90119-06465

9046706201

main90467-06201

9090386003

main90903-86003

9090406008

main90904-06008

17 parts on this diagram · 1 diagram in section
