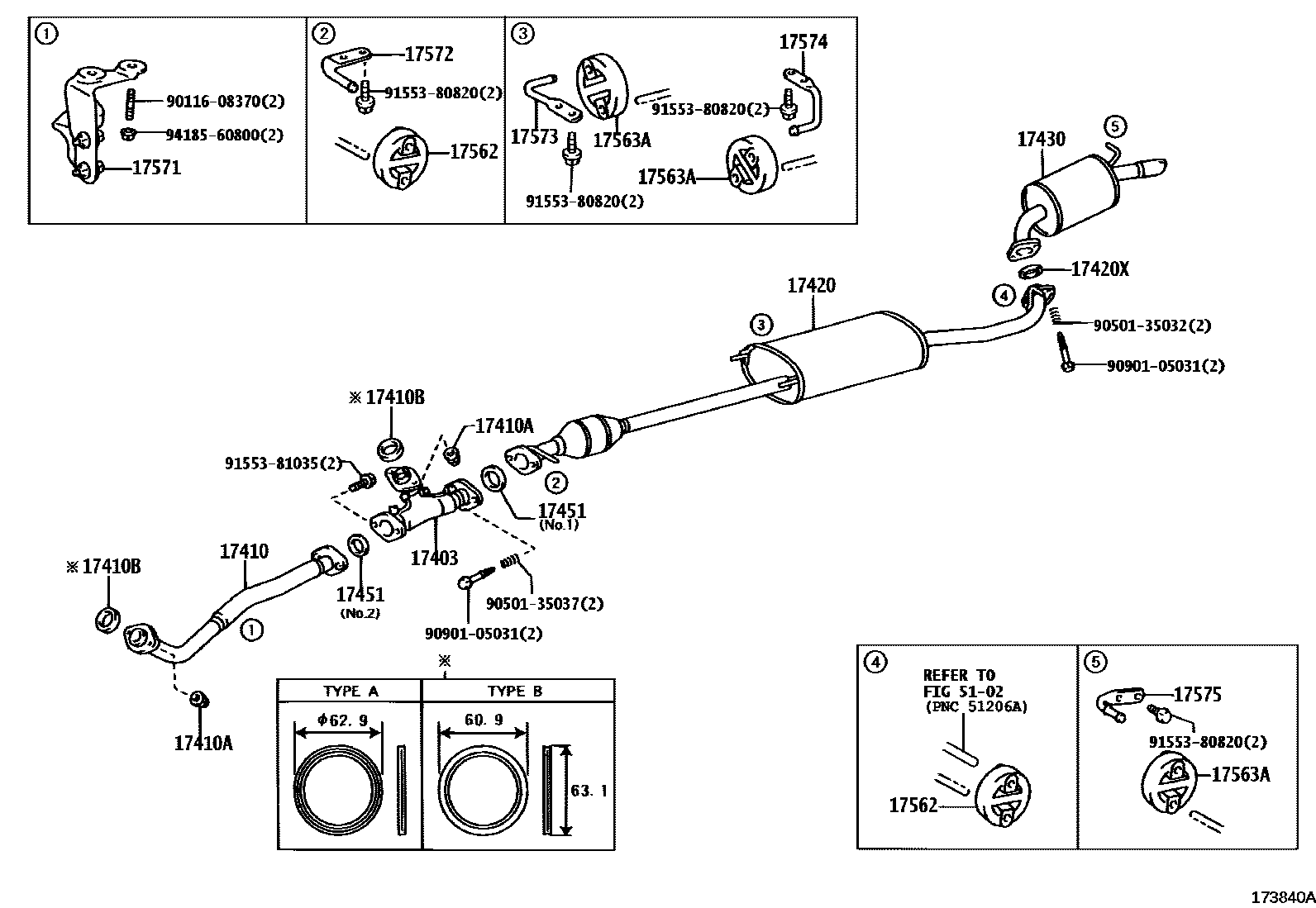

EXHAUST PIPE
17403PIPE SUB-ASSY, EXHAUST, FRONT NO.3
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
NO.1
NO.2
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
5102SUSPENSION CROSSMEMBER & UNDER COVER
9011608370
main90116-08370
9050135032
main90501-35032
9050135037
main90501-35037
9090105031
main90901-05031
9155380820
main91553-80820
9155381035
main91553-81035
9418560800
main94185-60800
23 parts on this diagram · 1 diagram in section
